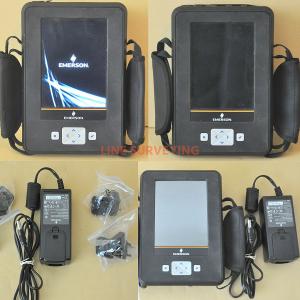

Emerson AMS TREX Device

For sale Demo used Emerson AMS TREX Device Communicator Hart 475 Analyzer Tester Fieldbus In good working and cosmetic condition. Field tested and works in a working environment. Emerson Process Controls AMS TREX Device Communicator for HART and Foundation Fieldbus.

$4400

Description

For sale Demo used Emerson AMS TREX Device Communicator Hart 475 Analyzer Tester Fieldbus In good working and cosmetic condition. Field tested and works in a working environment. Emerson Process Controls AMS TREX Device Communicator for HART and Foundation Fieldbus.

Emerson AMS Trex Device Communicator - Product Selection Tool
Improve reliability with the AMS Trex Device Communicator. Increase productivity in the field with your Trex unit by doing more types of tasks. Easily solve complex device issues without the need for other specialized tools. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities and is safety-rated, so it can go anywhere you can go. Rely on Trex to deliver results and keep your field assets reliable.

Work more efficiently
Designed for comfortable, one-handed operation in the field, the AMS Trex communicator is packaged in an evenly-balanced form factor with a rugged hand strap so you can easily hold it, even when working in tight spaces. With built-in USB and WiFi connectivity, it’s easy to move data to and from the communicator using the connectivity option that is most convenient. The robust lithium-ion battery will keep it running for hours, well over a full shift, even when it is being used to power other devices in the field.

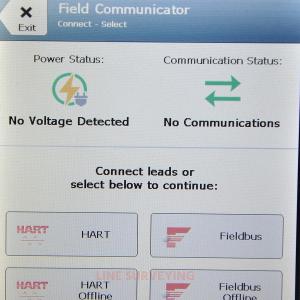

Improve efficiency with the modern, intuitive user experience that includes a larger display, touchscreen, and task-based UI. Automatically synchronize field changes with your AMS Device Manager database. Device Dashboards, advanced diagnostics, and troubleshooting tips help you fix issues in the field when you find them.

Do more with one tool
The Trex unit includes built-in functionality to power devices. Simply connect the communicator to a loose instrument to power it. Don’t waste time looking for a power supply or confirming adequate loop resistance before testing. Powering a device from the Trex unit isolates it from the rest of the system, helping pinpoint installation issues, including power supply, wiring, I/O cards, or configuration.

Power the loop functionality also allows device configuration in the field on new projects - even before power and I/O infrastructure are in place - helping to keep device configuration off critical path.

Many options available

The AMS Trex can be configured to your specific application using the dropdown menus at the top of this page. The available options are as follows:

1. Communication module:

  • Device Communicator
  • Device Communicator Plus

2. Applications:

  • HART
  • HART and FOUNDATION

3. Certifications

  • ATEX, CSA (US/Canada) and IECEx Intrinsically Safe
  • Without approvals

4. Radio

  • Wireless or non-wireless

5. Support options

  • Premium support - 1 or 3 years
  • Standard support - 1 or 3 years

For users requiring the Radar Master App (TREX-APRM-PE01) and/or Wireless HART Provisioning App (TREX-APWP-PE01), these can be added to your order from the accessories section of this page.

Communication modules:
A. The Trex unit has two options for communication modules - Device Communicator and Device Communicator Plus.
B. The Device Communicator communication module can connect to and communicate with HART and FOUNDATION fieldbus devices on an externally powered HART loop or fieldbus segment. The Device Communicator communication module has unique terminals for both HART and FOUNDATION fieldbus devices.
C. The Device Communicator Plus communication module can connect to HART and FOUNDATION fieldbus devices, measure current and voltage, and power a device.

Device Communicator module:
A. Connect to externally powered FOUNDATION fieldbus devices.
B. Connect to externally powered HART devices.

Device Communicator Plus module:
The Device Communicator Plus communication module can connect to HART and FOUNDATION fieldbus devices, measure current and voltage, and power a device.
A. Power a FOUNDATION fieldbus device.
B. Connect to a FOUNDATION fieldbus device that is externally-powered or powered by the Trex unit.
C. Measure current on a 4-20 mA current loop.
D. Power and connect to a HART device. The HART+pwr terminals can measure the current output of a connected transmitter or control the current input to a connected positioner. The terminals also have a loop resistor for device communication.
E. Connect to an externally-powered HART device. The HART terminals also have an optional loop resistor for enabling HART communications on 4-20 current loop and optional current control for moving a positioner.


Support options
1. Emerson offers 1 and 3 year Premium or Standard support options for its TREX communicator.
2. Premium Supports also provides “Extended Repair Coverage” which includes:

- Internal component repairs
- Accidental Damage Coverage which covers:

  • Only one incident in a given 12-month period is allowed per unit under Premium Support.
  • Liquid spilled on or in unit
  • Drops, falls, and other collisions
  • Damage caused by electrical surge
  • Damaged or broken LCD due to a drop or fall
  • Blown fuse in ammeter

3. The following items are NOT covered:

  • Intentional damage (such as hammer marks)
  • Normal wear
  • Cosmetic damage
  • Theft

Radar Master
The optional Radar Master app enables you to ensure the measurement and configuration accuracy of your Rosemount radar level transmitters by bringing the power of Radar Master software to the field. Use dynamic graphics to verify configurations while protecting the safety of your personnel and assets

Wireless HART Provisioning
The optional WirelessHART Provisioning app allows you to provision wireless networks in less time, with less chance of error and in a more secure fashion. The app can configure hundreds of devices with a push of a button, improving accuracy and allowing you to provision an entire network up to 6x faster.

The AMS TREX is the current flagship model, superseding the older Emerson HART 475, Notes and Included Options:
1. F - HART + Foundation Fieldbus Applications
2. KL - ATEX, CSA (US/Canada) and IECEx Intrinsically Safe (includes FISCO as applicable)
3. L - Device Communicator Plus communication module
4. P - Rechargeable Li-Ion Power Module
5. S3 - Standard Support (3 Year)
6. W - Wireless
*All of our equipment has been tested. Additional Calibration may be available upon request items sold with shown accessories, a power cord and manual on CD (when available)

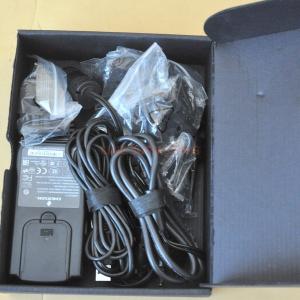

Includes:
Base model includes items below. Exact contents are dependent on chosen configuration.
AC Adapter
USB Cable
Lead Set with connectors
Hand Strap
Approvals and Certifications guide
Get Started flyer

Download Emerson TREXLFPKLWS3S AMS Trex Device Communicator
