Niton XL5 Handheld Analyzer

Up for sale Thermo Scientific Niton XL5 Analyzer Handheld XRF for metal alloy analysis, the condition is demo-used everything is in perfect order and it has very little use with 190 shots dating back to the original manufacture date 2018.



Up for sale Thermo Scientific Niton XL5 Analyzer Handheld XRF for metal alloy analysis, the condition is demo-used comes with complete KIT bundled, and it has very little use with 190 shots dating back to the original manufacture date 2018. The XL5 series is Niton's high end, fully loaded analysis unit, which includes the upgraded 50kv/5W tube for getting the LOD to unheard-of levels. The XL5 also specializes in its light element analysis and low carbon steels. This unit also has an upgraded camera option, which is extremely helpful when inspecting welds or trying to analyze a small sample. Included with the camera option, is the upgraded ”Small Spot Collimator”, which takes your inspection area to almost half for the perfect reading.

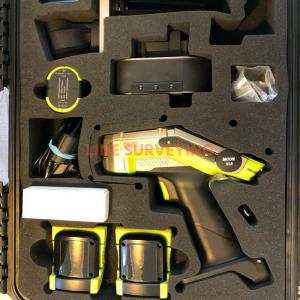

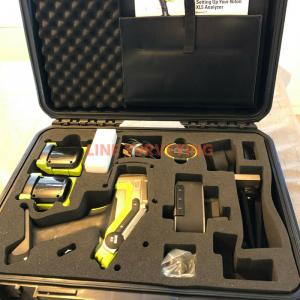

  • (1X) Thermo Niton XL5 XRF Analyzer
  • (1X) Integrated CCD camera for locating and storing images
  • (1X) Locking shielded carrying case
  • (1X) Two lithium-ion battery packs
  • (1X) 110/220 VAC battery charger/AC adaptor
  • (1X) PC connection cables
  • (1X) Niton Connect PC software
  • (1X) Safety lanyard
  • (1X) Check samples/standards
  • (1X) Hard Case
  • (1X) Quick Start Guide/Manual
  • (1X) Spare Window

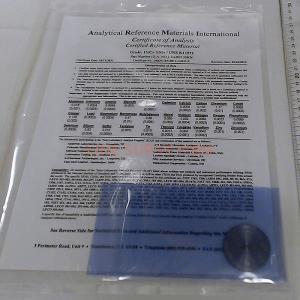

  • (1X) Calibration Standard ALLOY, IARM35,1 1/4Cr,1/2 Mo


  • (1X) 3 mm small-spot Collimation

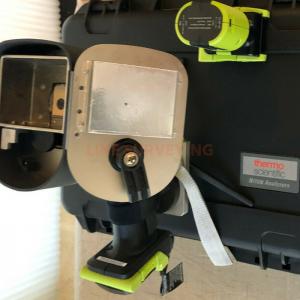

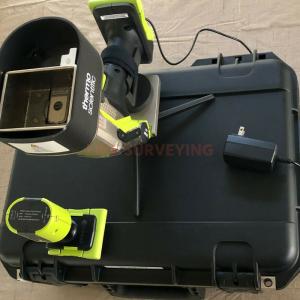

  • (1X) Thermo ScientificTM portable Test Stand
  • (1X) Belt Holster
  • (1X) HotFoot Jacket
  • (1X) Flash Drive, Software
  • (1X) HotWork standoff (Additional Cost, US$150)
  • (1X) Portable Test Stand (Additional Cost, US$950)
  • (1X) QC Standard, SOIL KIT SET,10 Grams EA (Additional Cost US$300)


Analytical Range Mg-U (ultra low light element detection)

Available Analytical Modes

General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Spectral Fingerprint, TestAll
Data Storage Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)
Data Transfer WiFi, USB
Description Niton XL5 Handheld XRF Analyzer

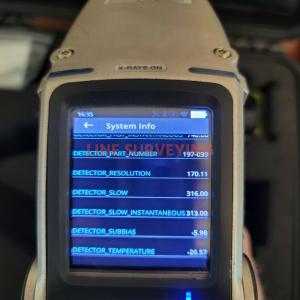

Detector Type Proprietary large area drift detector

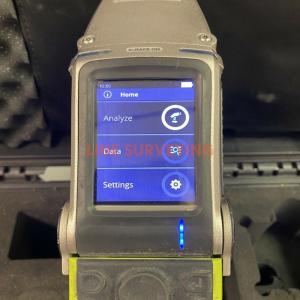

Display Type Tilting, color, resistive touchscreen display
Optional Accessories Thermo Scientific™ portable test stand
Thermo Scientific™ mini test stand
Thermo Scientific™ backscatter shield
Thermo Scientific™ hotwork stand off
Thermo Scientific™ soil guard
Belt holster
Power Consumption 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply

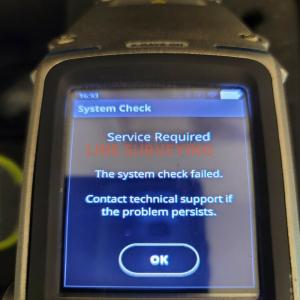

System Details Built-in standardization via automatic system check
Weight (English) 2.8 lbs with battery
Weight (Metric)   1.3 kg with battery
Data Entry   Touchscreen keyboard
Optional wireless remote barcode reader
Licensing Varies by region. Contact your local distributor
Dimensions (L x W x H)    9.54 x 8.19 x 2.67 in (24.23 x 20.8 x 6.78 cm)
Camera Integrated CCD Macro Camera for capturing overview images of parts and tagging measurement locations
Integrated CCD Micro Camera for locating and recording measurement positions
Languages English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian
X-Ray Source Type X-Ray Tube: Ag anode (6-50kV, 0-500uA, 5W max)
Dynamically adjustable current for optimal sensitivity on every analysis
Spot Size Standard: 8mm collimation
Optional: 3mm small-spot collimation
Libraries Default alloy libraries based on SAE, AISI, ASTM, AA,DIN, GB standards Users may create, clone and edit libraries
Operating Environment Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C)
Humidity: 10% to 90% relative humidity non-condensing
Software Support Software: NitonConnect PC software
Global Positioning System Internal GPS and optional external GPS (via Bluetooth)
GPS data included with sample information
Supports print functionality, external GPS connectivity and barcode reader
Operating System Linux

CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010

Download Thermo-Scientific-Niton-XL5-Handheld-XRF-Analyzer
