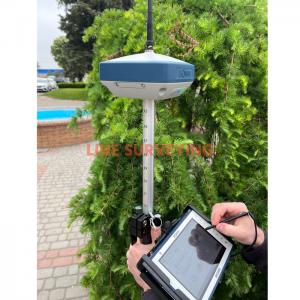

Sokkia GRX3 GNSS Receiver

The Sokkia GRX3 is smaller, lighter, and packed with the most advanced GNSS technology in a design built to withstand the harshest field environments. All signals, all satellites and all constellations in a compact, rugged design, integrated IMU, eCompas

$8000

Description

The Sokkia GRX3 is smaller, lighter, and packed with the most advanced GNSS technology in a design built to withstand the harshest field environments. All signals, all satellites and all constellations — in a compact, rugged design, with an integrated IMU and eCompass.

SPECIFICATION:
Number of Universal Tracking Channels	226 UTC technology GPS L1 C/A, L1C, L2P(Y), L2C, L5 GLONASS L1 C/A, L1P, L2 C/A, L2P, L3CBeiDou B1, B2
Tracked Signals	Galileo E1,E5a, E5b, Alt-BOC SBAS L1 C/A, L5 WAAS/MSAS/EGNOS/GAGAN QZSS L1 C/A, L1C, L1-SAIF, L2C, L5
Static/Fast Static	H: 3 mm + 0.4 ppm V: 5 mm + 0.5 ppm
Memory	Internal Non-removable 8 GB
Radio	Built-in 425-470 MHz UHF radio
Dust/Water Protection	IP67
Dimensions	150 x 100 x 150 mm (w x h x d)
Operating Time	RX mode -10hr, TX mode 1W - 6hr

Sokkia Tilt Technology: Incorporates a revolutionary 9-axis inertial measurement unit (IMU) and ultra-compact eCompass, which compensate for mis-leveling up to 15 degrees.

Sokkia Tilt Technology
L Band Ready Technology
226 Universal Tracking Channels (Sokkia GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, SBAS)
Integrated 400 MHz UHF and SiteCom™ radios
Fusion Positioning™ technology
Download Sokkia GRX3 GNSS Receiver Brochure

Configuration Options:
The Sokkia GRX3 Integrated GNSS Receiver is available in five bundled kits. Please select your preference from the menu above and contact us for price:

Base Bundled KIT	Sokkia GRX3 Integrated GNSS Receiver Receiver power cable Power adapter (Phihong) Power wall US cables Serial cable Micro USB cable, 1.5 m UHF antenna 440-470 MHz Printed UHF notice Default OAF (GG L1 1Hz) Tribrach with Optical plummet, black Tribrach adapter #5 with removable center Alligator clips to SAE cable Cable, Net G3 power SAE to open ends Prism spacer, 100mm Horizontal spacer, Slant height measurement 3M measuring tape Wood wide frame tripod - Sokkia yellow Hard case with strap
Base and Rover Bundled KIT	Sokkia GRX3 Integrated GNSS Receiver (2X) Receiver power cable (2X) Power adapter (Phihong) (2X) Power wall US cables (2X) Serial cable (2X) Micro USB cable, 1.5 m (2X) UHF antenna 440-470 MHz (2X) Printed UHF notice (2X) Default OAF (GG L1 1Hz) Carbon fiber rover pole, 2m - 2 section Tribrach with Optical plummet, black Tribrach adapter #5 with removable center Alligator clips to SAE cable Cable, Net G3 power SAE to open ends Prism spacer, 100mm Horizontal spacer, Slant height measurement 3M measuring tape Wood wide frame tripod - Sokkia yellow Hard case with strap
Network Rover Bundled KIT	Sokkia GRX3 Integrated GNSS Receiver Receiver power cable Power adapter (Phihong) Power wall US cables Serial cable Micro USB cable, 1.5 m Carbon fiber rover pole, 2m - 2 section UHF antenna 440-470 MHz Default OAF Hard case with strap
Static Single Bundled KIT	Sokkia GRX3 Integrated GNSS Receiver Receiver power cable Power adapter (Phihong) Power wall US cables Serial cable Micro USB cable, 1.5 m Tribrach with Optical plummet, black Tribrach adapter #5 with removable center Prism spacer, 100mm 3M measuring tape Wood wide frame tripod - Sokkia yellow Horizontal spacer, Slant height measurement Default OAF Hard case with strap
Rover Bundled KIT	Sokkia GRX3 Integrated GNSS Receiver Receiver power cable Power adapter (Phihong) Power wall US cables Serial cable Micro USB cable, 1.5 m Carbon fiber rover pole, 2m - 2 section UHF antenna 440-470 MHz Default OAF Hard case with strap
