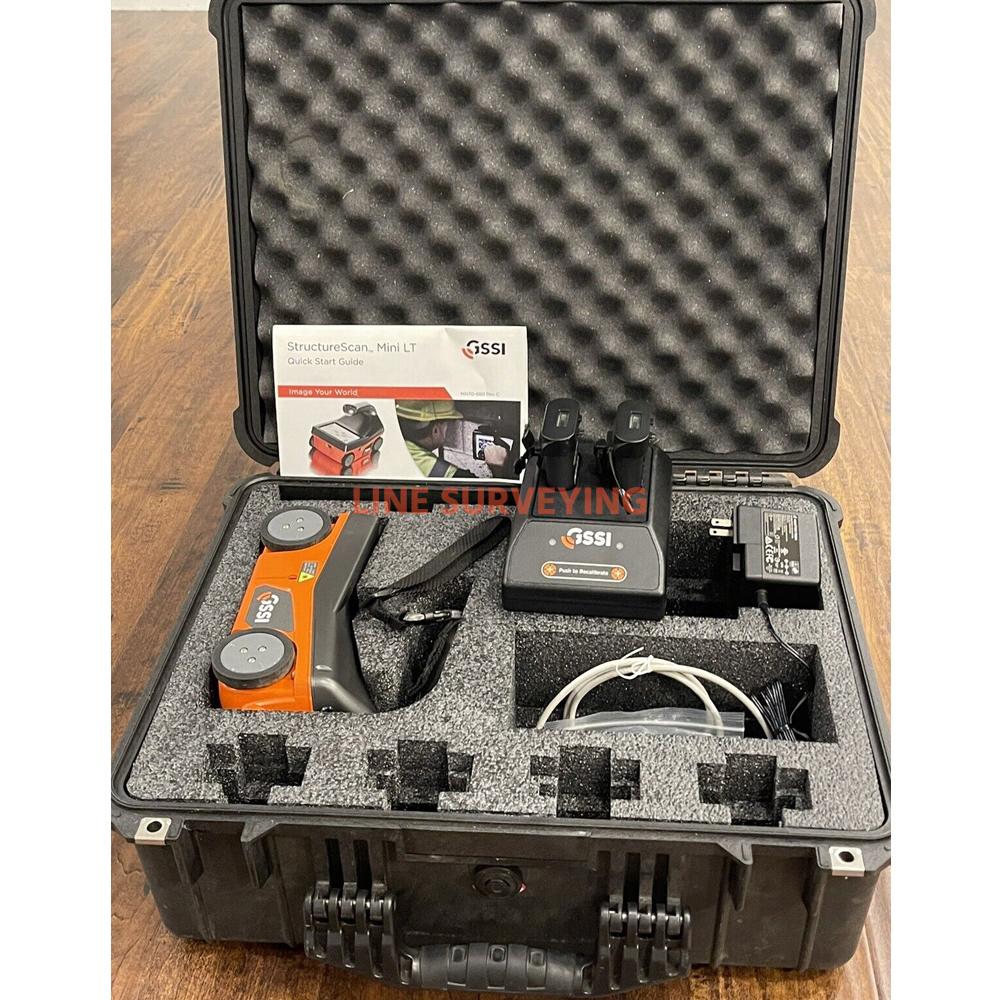

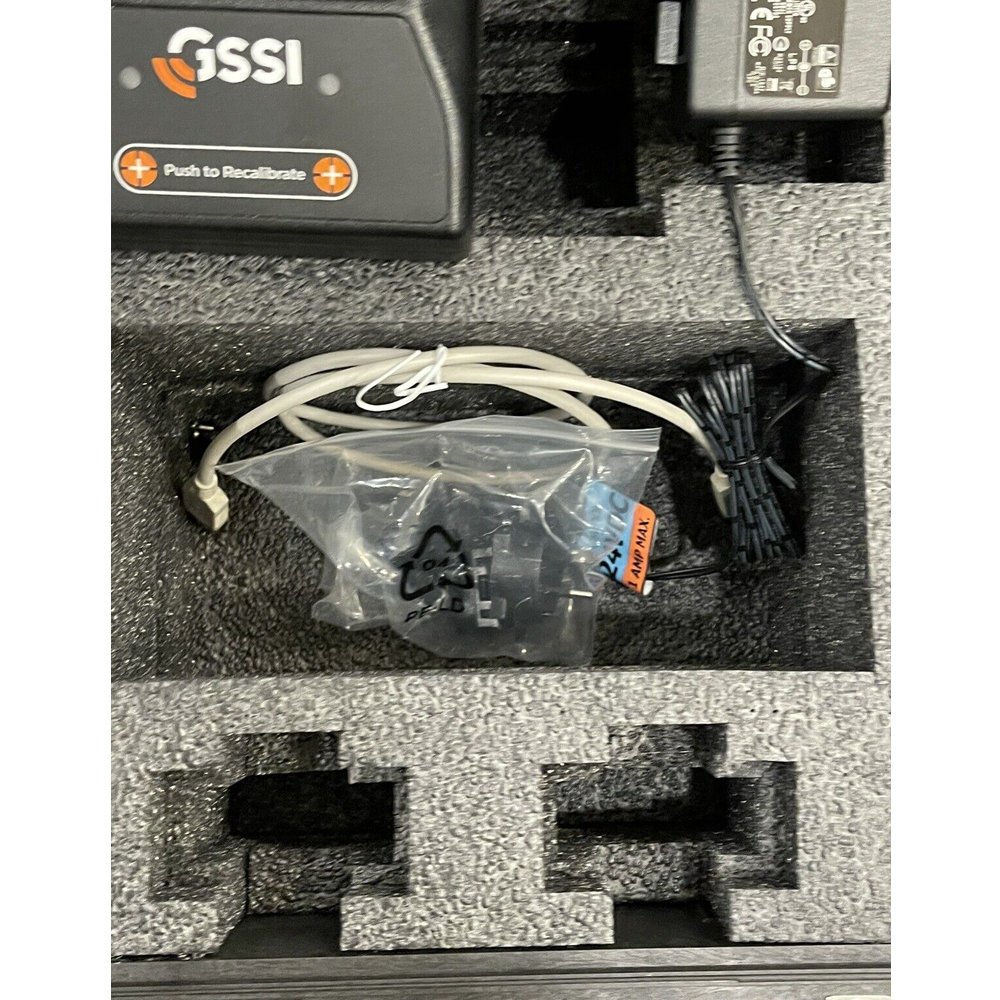

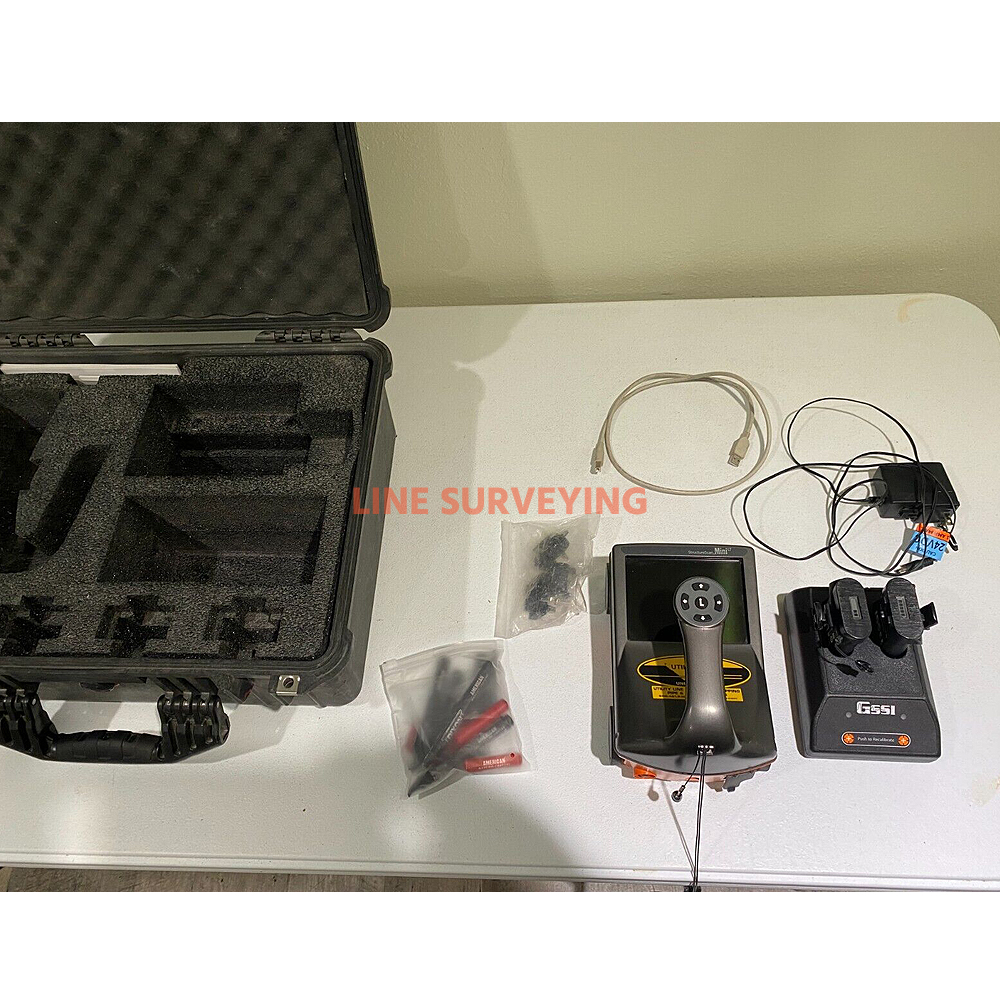

System Includes:
Concrete Scanning Made Easy

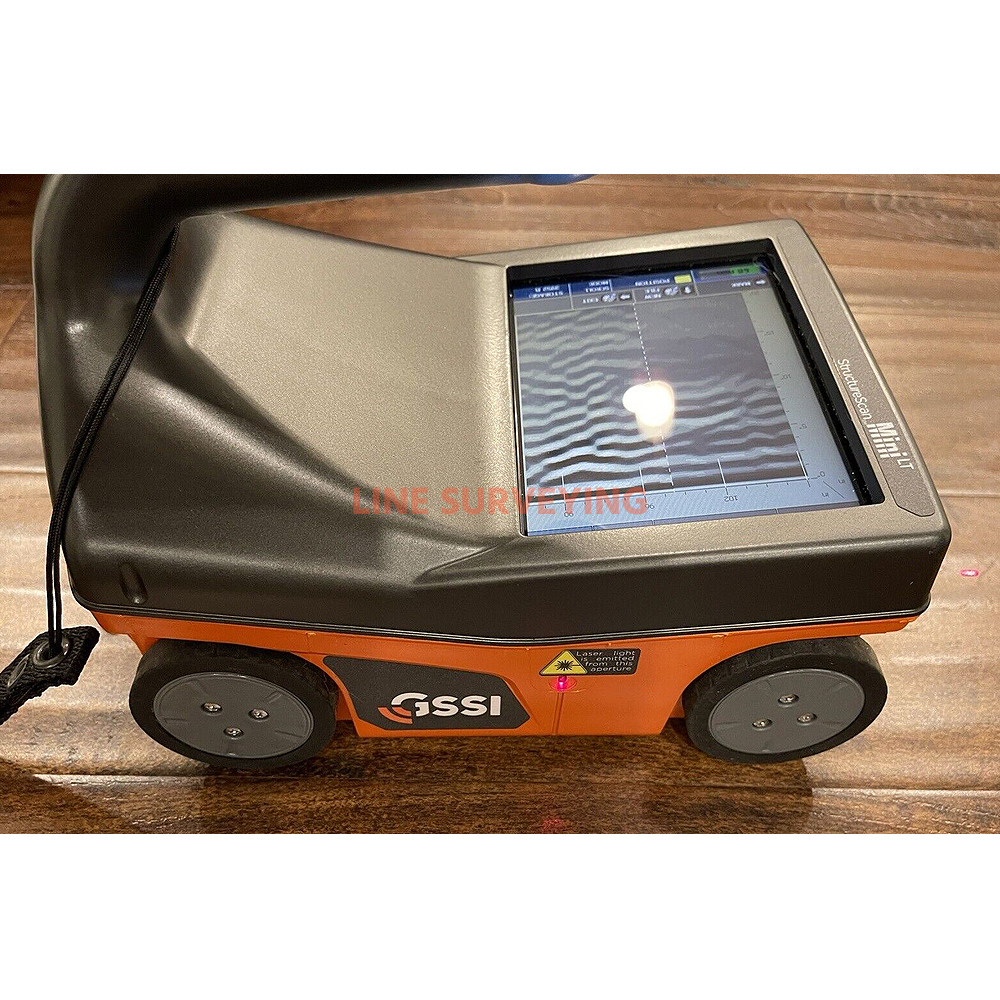

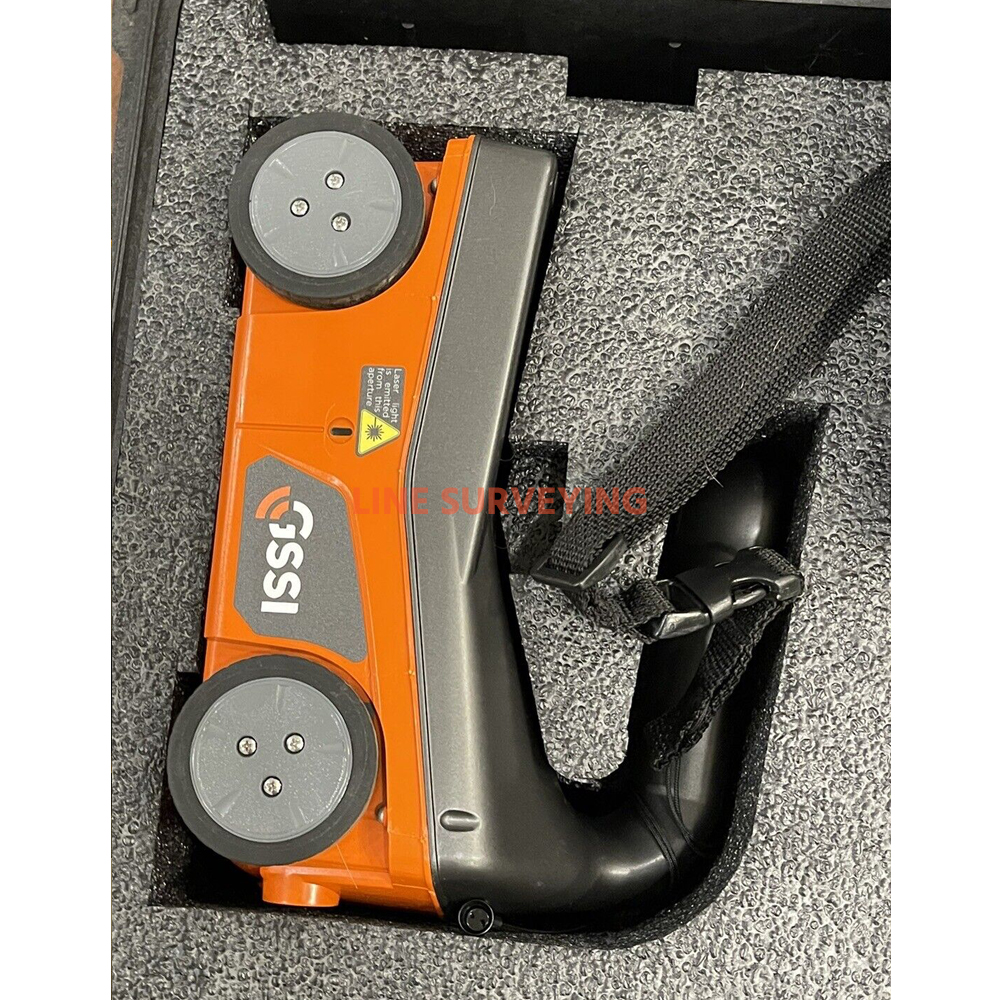

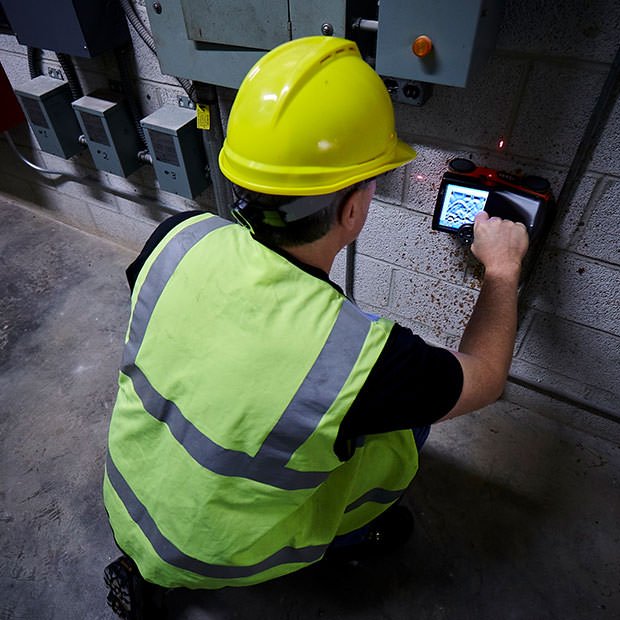

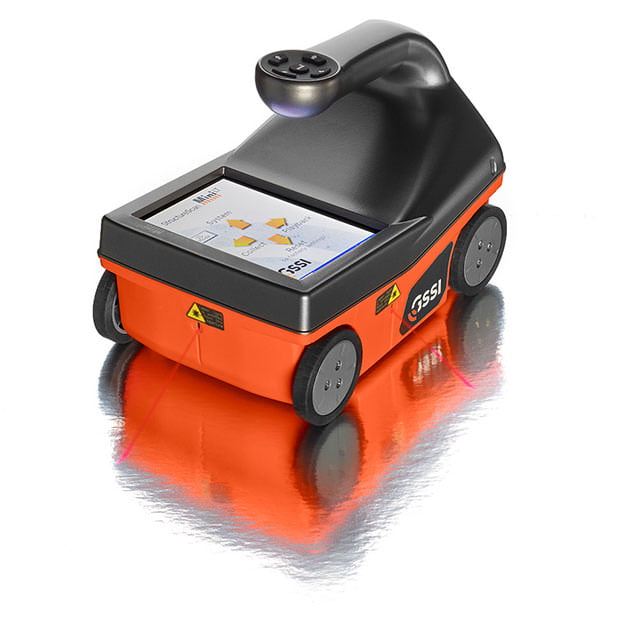

The StructureScan Mini LT is compact and lightweight – weighing only 1.6 kg (3.6 lbs.), making it easy to use on the ground or for above-the-head survey locations.
Enhanced Data Visualization

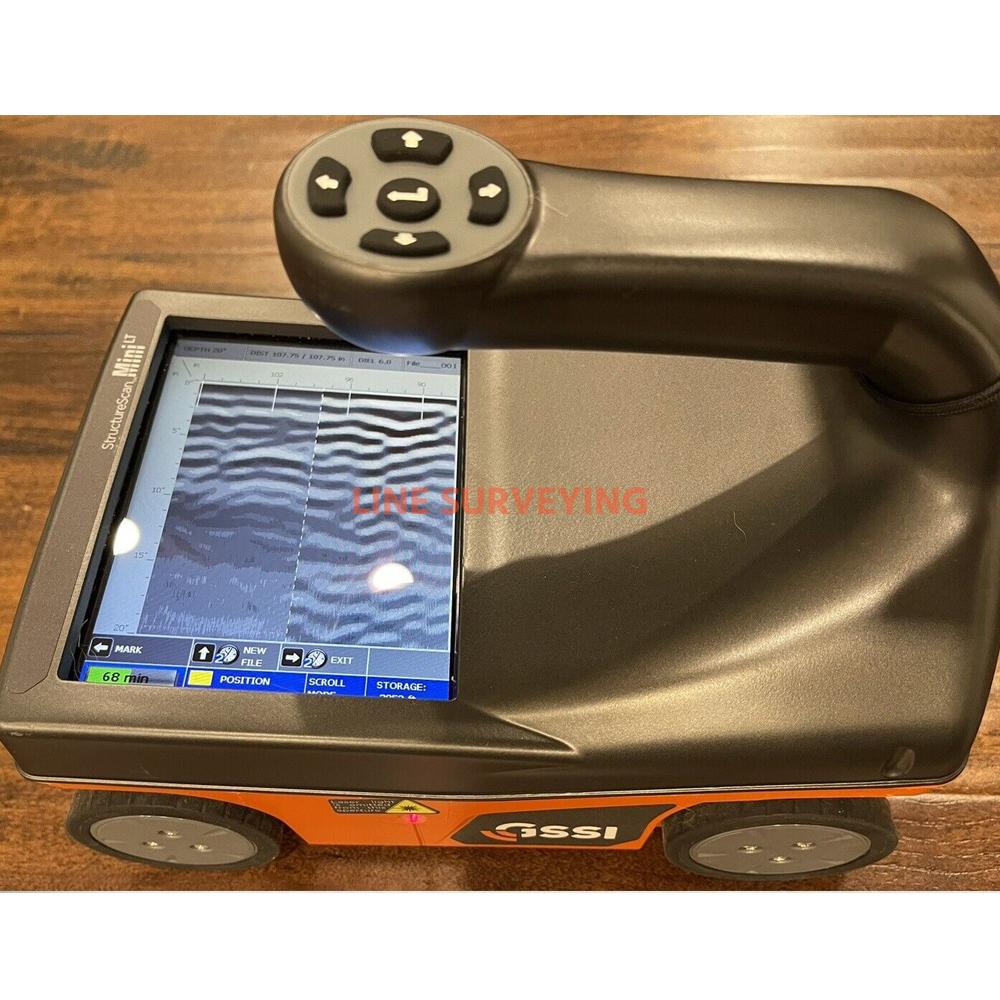

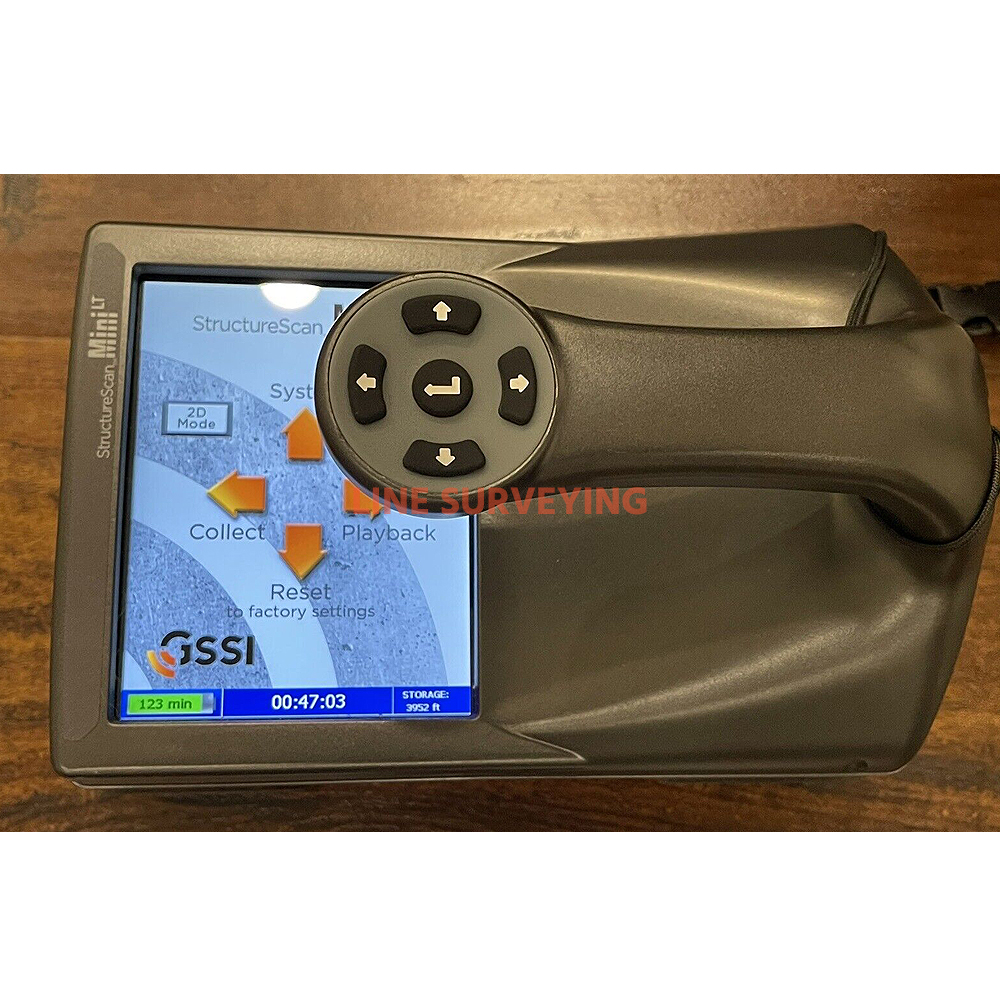

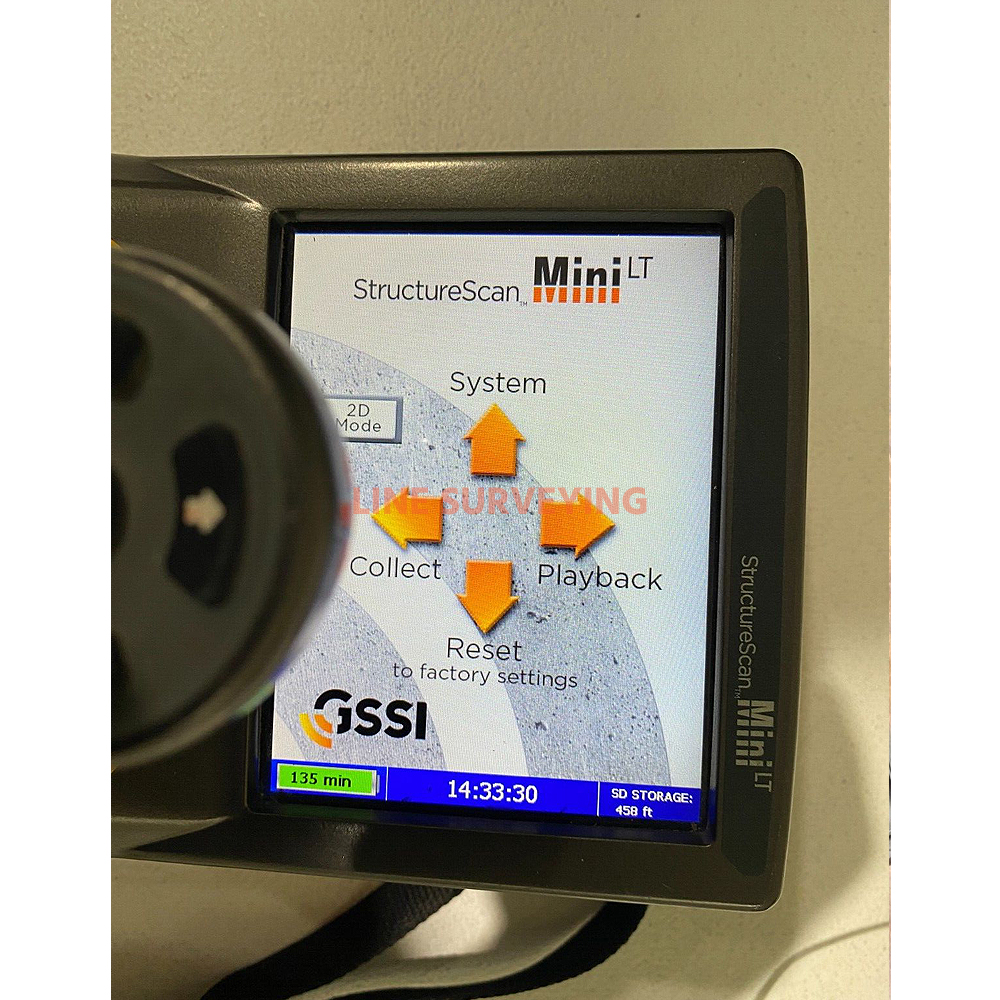

The StructureScan Mini includes two modes of operation; 2D mode for real-time locating, and 3D mode for x-ray like images of the concrete. This system also incorporates two types of automatic target detection to aid users in interpreting data.
First-in-Class Capabilities

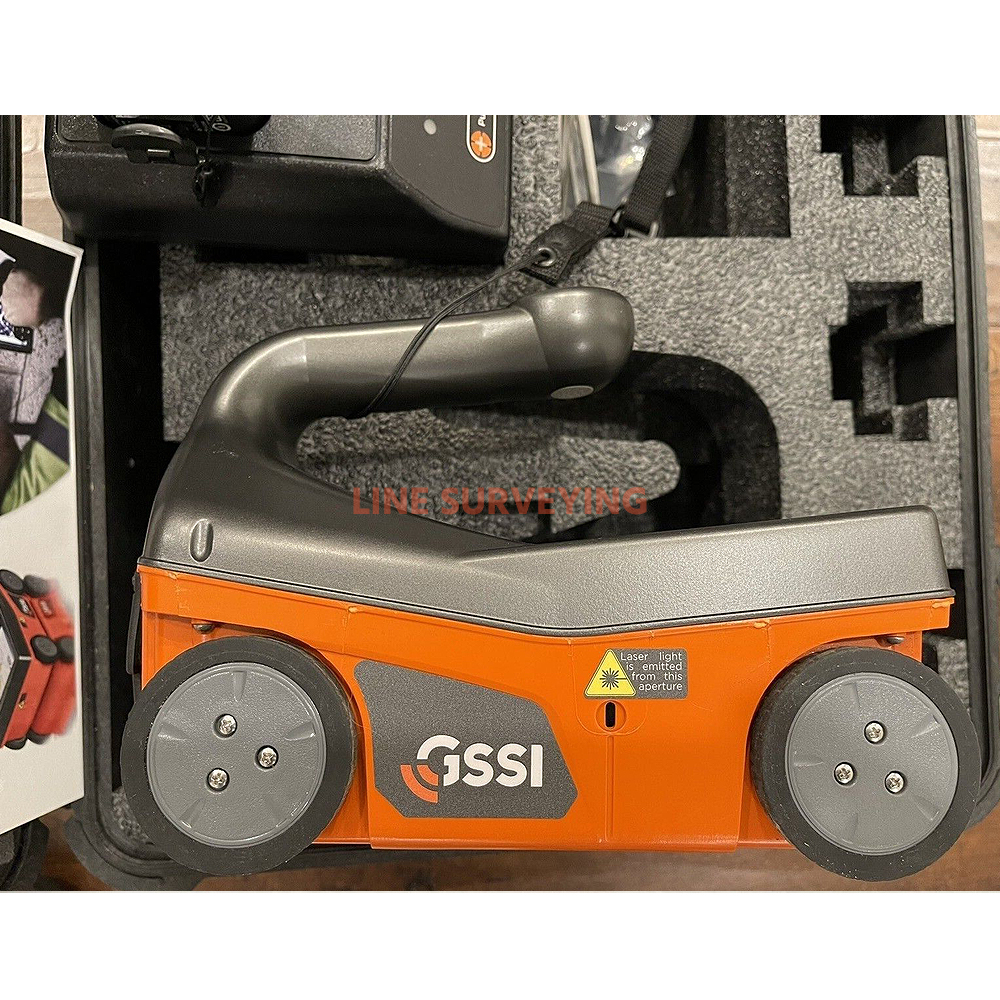

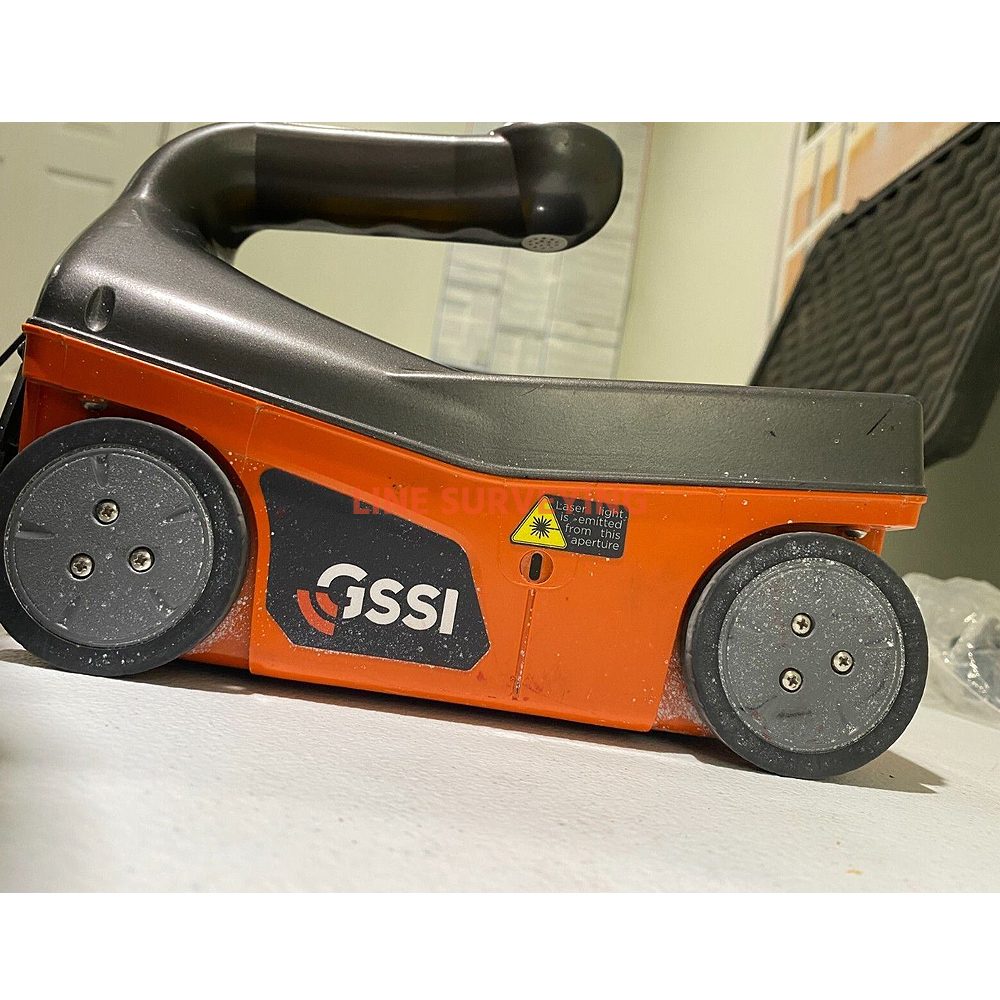

Incorporated into the design is an integrated laser positioning system, located on the front and sides of the unit, to help users accurately mark targets. It also provides four-wheel drive to ensure efficient and accurate data collection.
Specifications
Memory Based on SD card size, default is 2 GB
Display 5.7”, full-color
Post-processing On-screen or via GSSI software (optional)

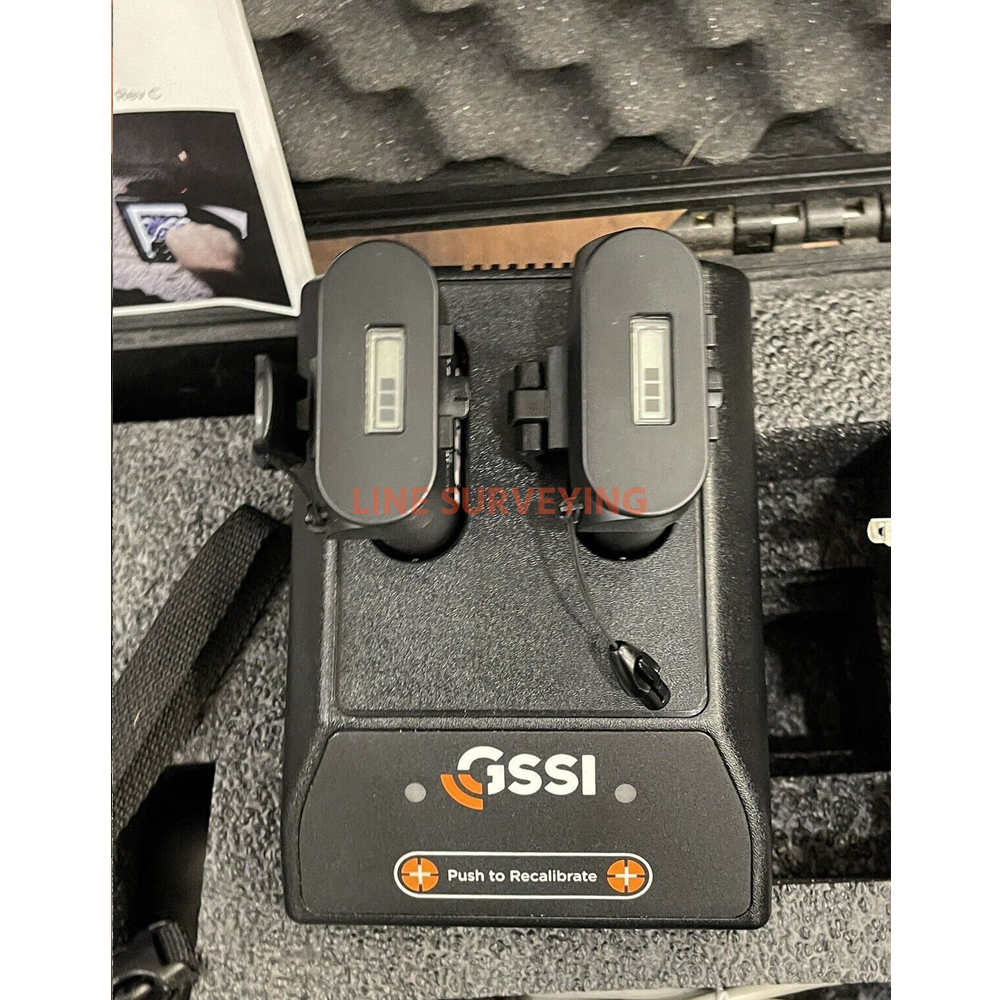

Battery 2.5 hour run-time
Available Ports SD card, USB port
Environmental Water-resistant and dustproof (IP-65 rating)
Languages of English, Spanish, French, German, Korean and Japanese
Weight 1.6 kg (3.6 lbs)
The StructureScan Mini LT is typically used to:
Locate metallic and non-metallic targets in walls
Inspect bridges, monuments, walls, towers, tunnels, balconies, garages, decks
Map relative concrete condition for rehab planning
Measure slab thickness
Void location
