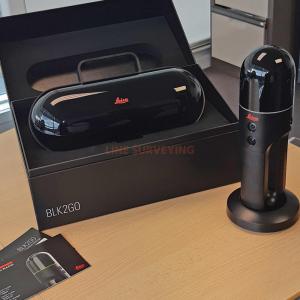

We are selling excellent condition like new demo used Leica BLK2GO handheld Laser Scanner kit comes with Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 included. Options for rental and purchase are available The smallest, fast and efficient mobile laser scanner ever. Two hours of work for 8,000 square meters of surveyed surface.
Includes:

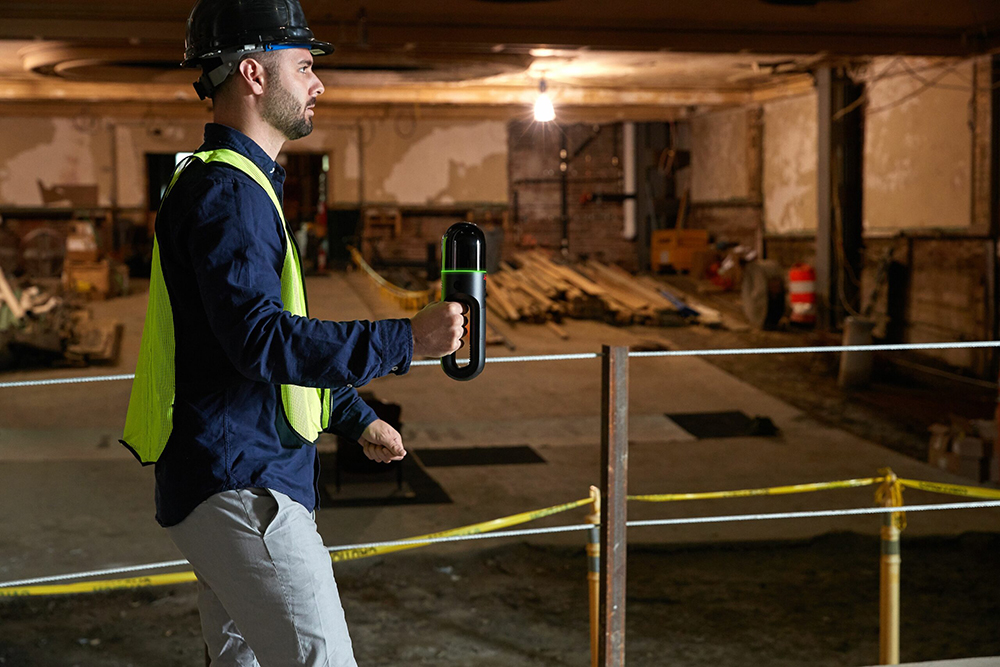

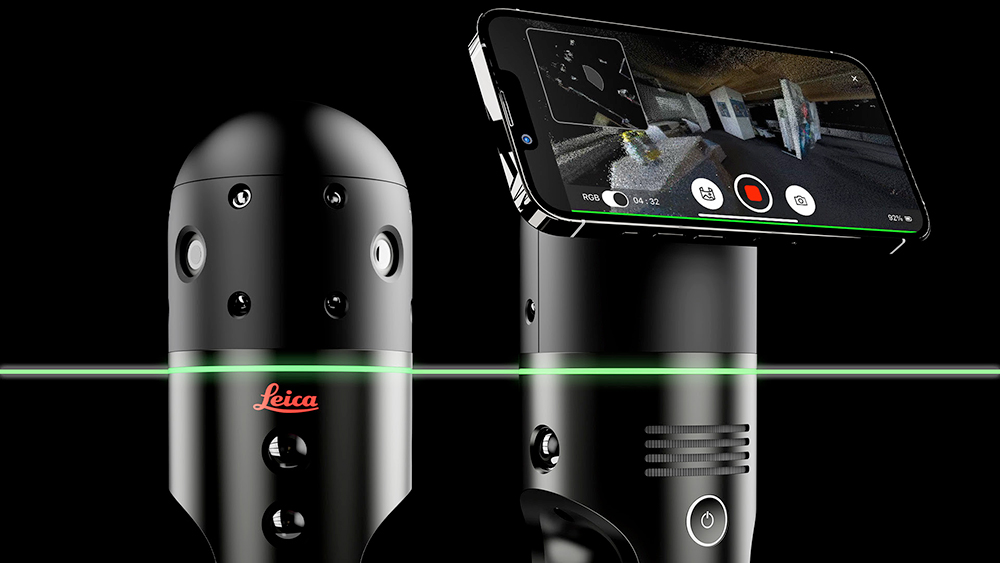

The BLK2GO is a laser scanner with advanced but easy-to-use portable imagery, designed to allow users of reality capture to scan while walking. It is the quickest, easiest and least invasive way to digitize a large building, space or environment. Thanks to its powerful technology and simple operation, users can take BLK2GO, turn it on and capture the digital twin of a space or structure quickly and precisely by walking, whatever their level of experience. The BLK2GO captures 420,000 points per second and contains the Grand SLAM technology: a combination of visual SLAM, SLAM LiDAR and an inertial power station which allows it to orient itself in a 3D space and to digitize while moving.
THE BENEFITS:
> Fast : Scan without interruptions during your trip. The digital capture of the reality of the space around you takes place in real time while you are browsing this area
> Agile : Scan above and below objects, through rooms, door locks, around corners and along stairwells. Based on space consciousness technology, the BLK2GO knows where it is and where it was previously in space
> Fluid capture : Like a torch for visualizing three-dimensional reality, the BLK2GO automatically creates 3D point clouds during the trip. From the start of a scanning session to the BLK2GO power-up, all 3D images and data are combined
> Free : No tripod. On-board data collection. Continuous scanning thanks to the refillable battery supply.
SPECIFICATIONS:
| DESIGN & PHYSICAL | |
| Housing | Black anodized aluminium |
| Dimensions | Height: 279 mm / Diameter: 80 mm |
| Weight | 650 g (775 g including battery) |

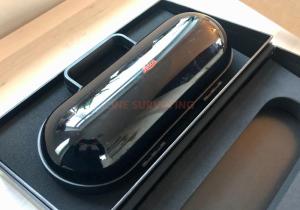

| Transport cover | BLK2GO transportation case |
| OPERATION | |
| Stand-alone operation | One-button operation |
| Mobile device |
|
| Communication | Wireless (app connection) |
| Internal memory | 24 hours of scanning (compressed data) / 6 hours (uncompressed data) |
| Battery | Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes |
| LiDAR & IMAGING | |
| Laser class | 1 (in accordance with IEC 60825-1) |
| Wavelength | 830 nm |
| Field of view | 360° (horizontal) / 270° (vertical) |
| Range | Min. 0.5 - up to 25 m |
| Point measurement rate | 420,000 pts/sec |
| High resolution camera | 12 Mpixel, 90° x 120°, rolling shutter |
| Panoramic vision system | 3-camera system, 4.8 Mpixel 300° x 135°, global shutter |
| SYSTEM PERFORMANCE (GRANDSLAM BASED) | |
| Range noise * ** | +/-3 mm |
| Accuracy indoor *** | +/-10 mm |
| ENVIRONMENTAL | |
| Robustness | Designed for indoor and outdoor use |
| Operating temperature | 0 to +40 °C |
| Dust & humidity protection | IP54 (IEC 60529) |
| DATA PROCESSING | |
| Data transfer | Wireless and USB 3.0 |
| Desktop software | Leica Cyclone REGISTER 360 PLUS and Cyclone REGISTER 360 PLUS (BLK Edition) |
