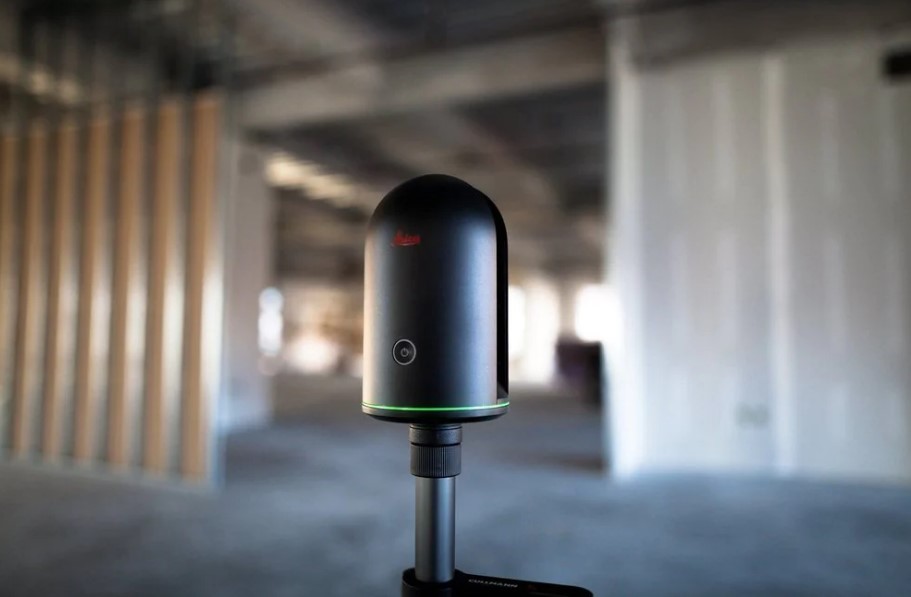

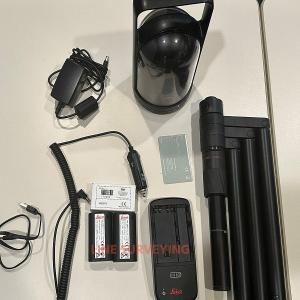

Leica BLK360 G1 Laser Scanner Includes:
BLK360 Imaging Laser Scanner
Recap Pro Software
SPECIFICATIONS:
GENERAL | |
Imaging scanner | 3D scanner with integrated spherical imaging system and thermography panorama sensor system |
DESIGN & PHYSICAL | |
Housing | Black anodized aluminum |
Dimensions | Height: 165 mm / Diameter: 100 mm |
Weight | 1kg |
Transport cover | Hood with integrated fl Rostand |
Mounting mechanism | Button-press quick release |
OPERATION | |
Stand-alone operation | One-button operation |
Remote operation | iPad app, Apple iPad Pro® 12.9” or 10.5”/iOS 10 or late |
Wireless communication | Integrated wireless LAN (802.11 b/g/n) |
Internal memory | Storage for > 100 setups |
Instrument orientation | Upright and upside down |
POWER | |

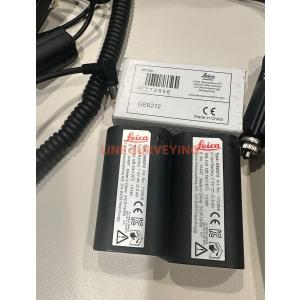

Battery type | Internal, rechargeable Li-Ion battery (Leica GEB212) |
Capacity | Typically, >40 setups |
SCANNING | |
Distance measurement system | High speed time of flight enhanced by Waveform Digitizing (WFD) technology |
Laser class | 1 (in accordance with IEC 60825-1:2014) |
Wavelength | 830 NM |
Field of view | 360° (horizontal) / 300° (vertical) |
Range | min. 0.6 - up to 60 m |
Point measurement rate | up to 360’000 pts / sec |
Ranging accuracy | 4mm @ 10m / 7mm @ 20m |
Measurement modes | 3 user selectable resolution settings |
IMAGING | |
Camera System | 15 M pixel 3-camera system, 150Mpx full dome capture, HDR, LED fl ash Calibrated spherical image, 360° x 300 |
Thermal Camera |
|
PERFORMANCE | |
Measurement speed | < 3 min for complete full dome scan, spherical image & thermal image |
3D point accuracy | 6mm @ 10m / 8mm @ 20m |
ENVIRONMENTAL | |
Robustness | Designed for indoor and outdoor use |
Operating temperature | +5 to +40° C |
Dust/Humidity | Solid particle/liquid ingress protection IP54 (IEC 60529) |
DATA ACQUISITION | |
Live image and scanned data streaming | |
Live data viewing and editing | |
Automatic tilt measurements | |
