We are selling a demo used Leica BLK360 G2 Laser Scanner comes with Leica Cyclone REGISTER 360 (BLK Edition) with latest evolution with VIS. The Leica BLK360 G2 is one of the smallest laser scanners on the market today while packing HUGE power! With 60 HDR Imagery (105 MPx), High Resolution Point Clouds (6 mm @ 10 m), High Accuracy (4 mm @ 10 m) and Just 1 mm Range Noise. This set is an advanced precision imaging laser scanner. At the push of a button, users can capture a full scan with spherical images in only twenty seconds, over five times faster than the BLK360 G1. Blaze through job sites with best-in-class rapid scanning that doesn’t compromise on quality, while VIS technology automatically combines your scans on-site to speed up your workflow and help you make sure your datasets are complete. The BLK360 enables users to work faster and smarter while getting the data they need right away.BLK360 data is valuable for many uses, from traditional AEC to mind-bending VFX and VR, and users can easily transfer and work with it in your software ecosystem to create immersive and highly accurate deliverables and experiences.

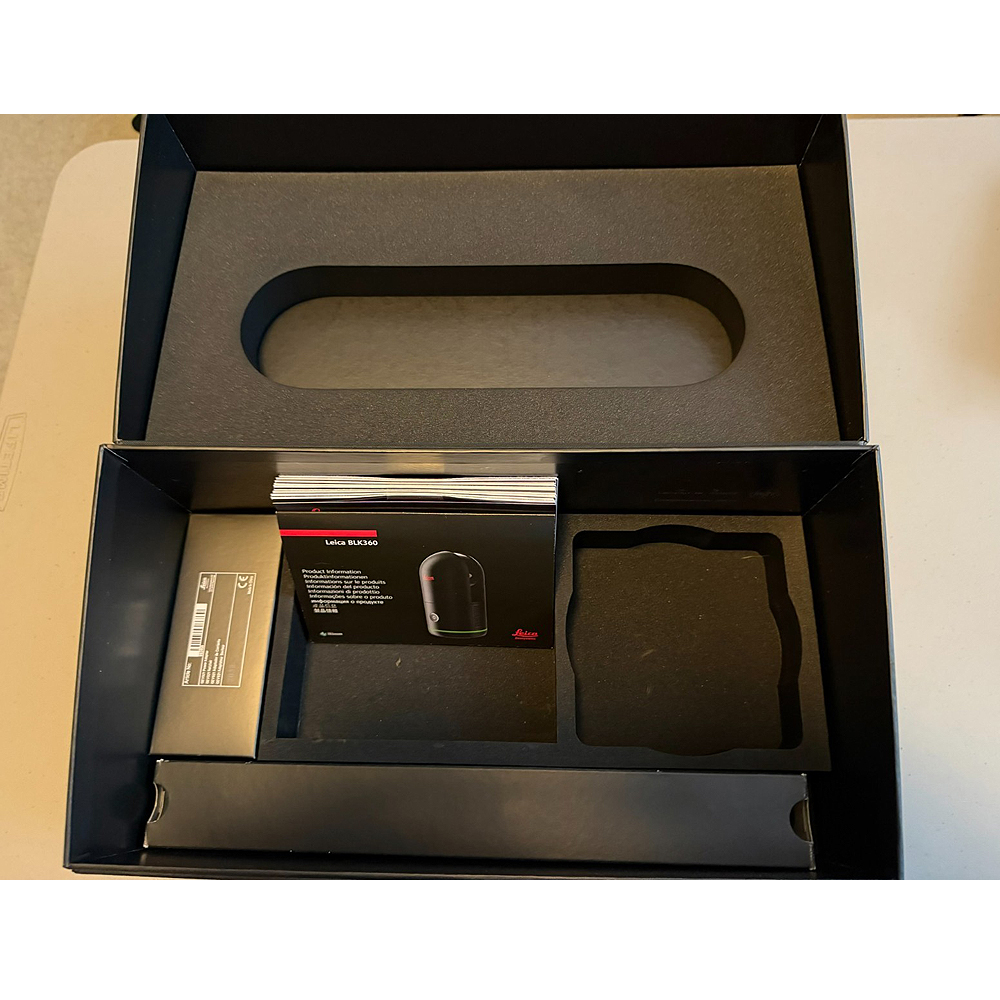

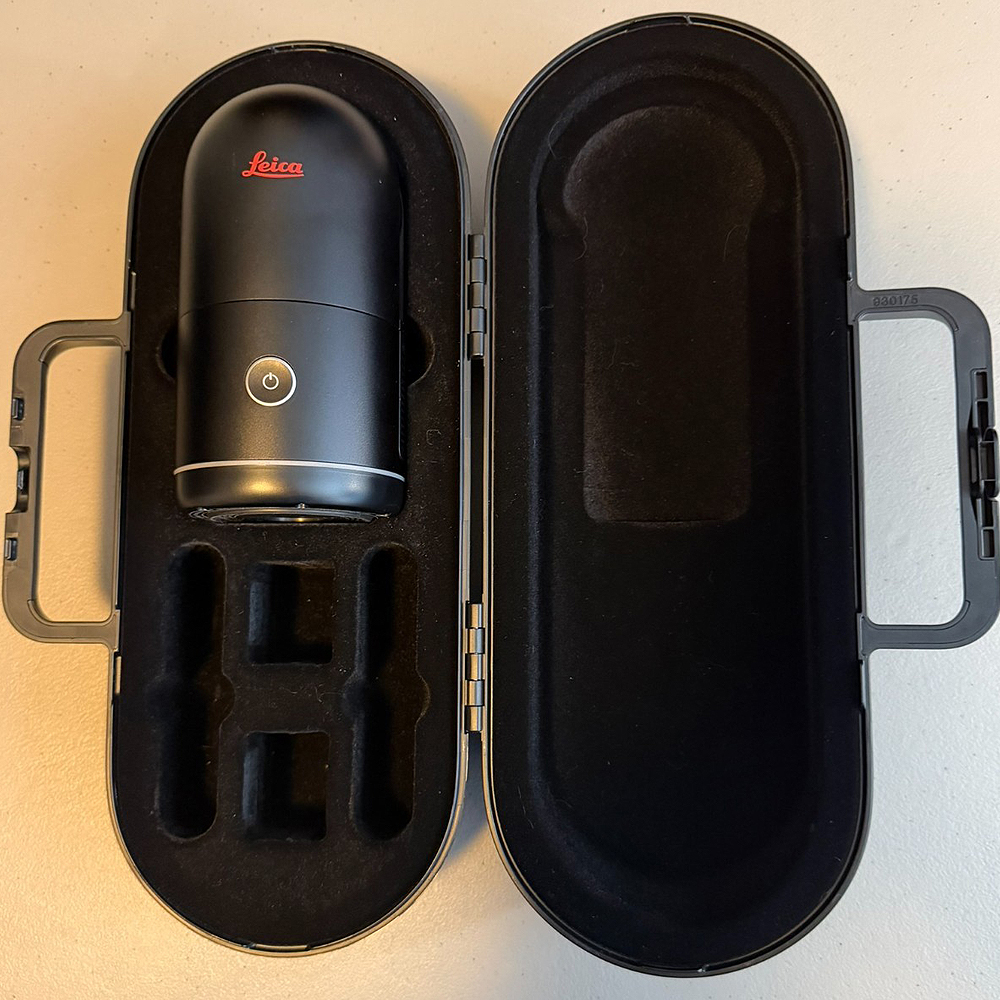

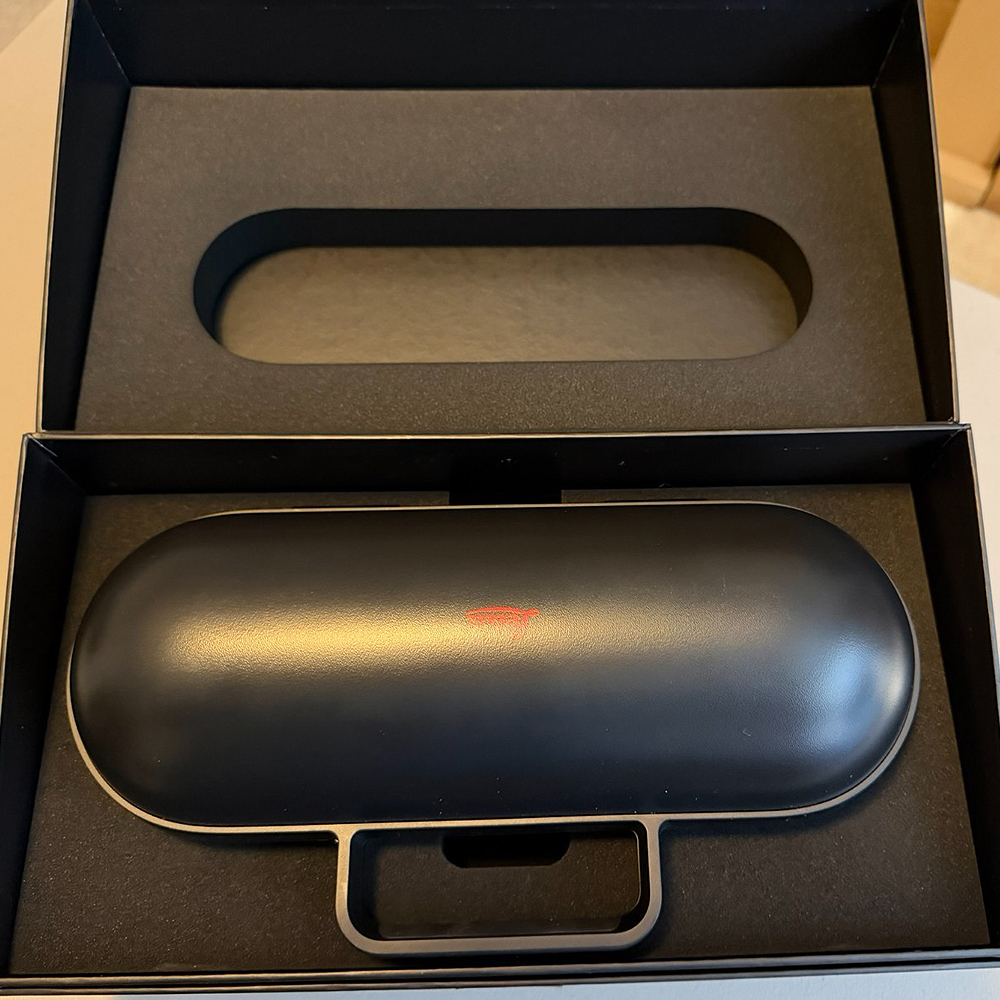

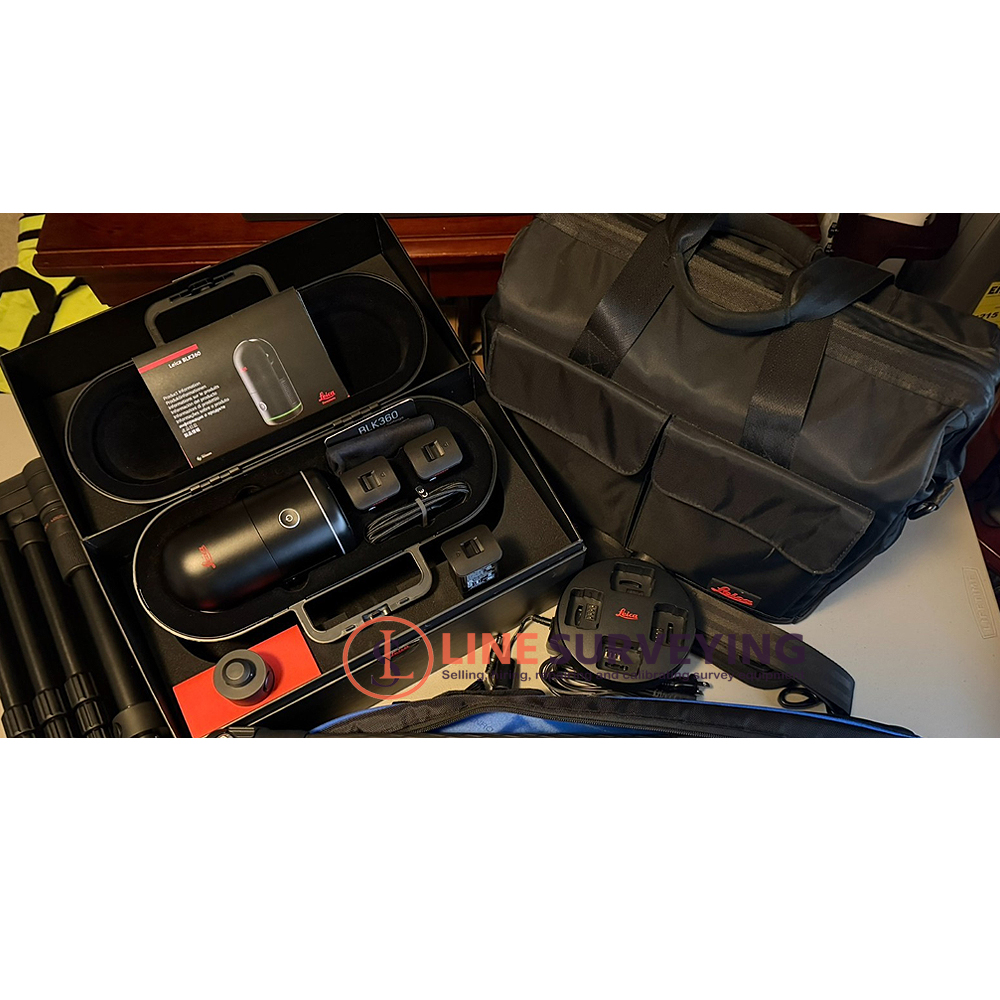

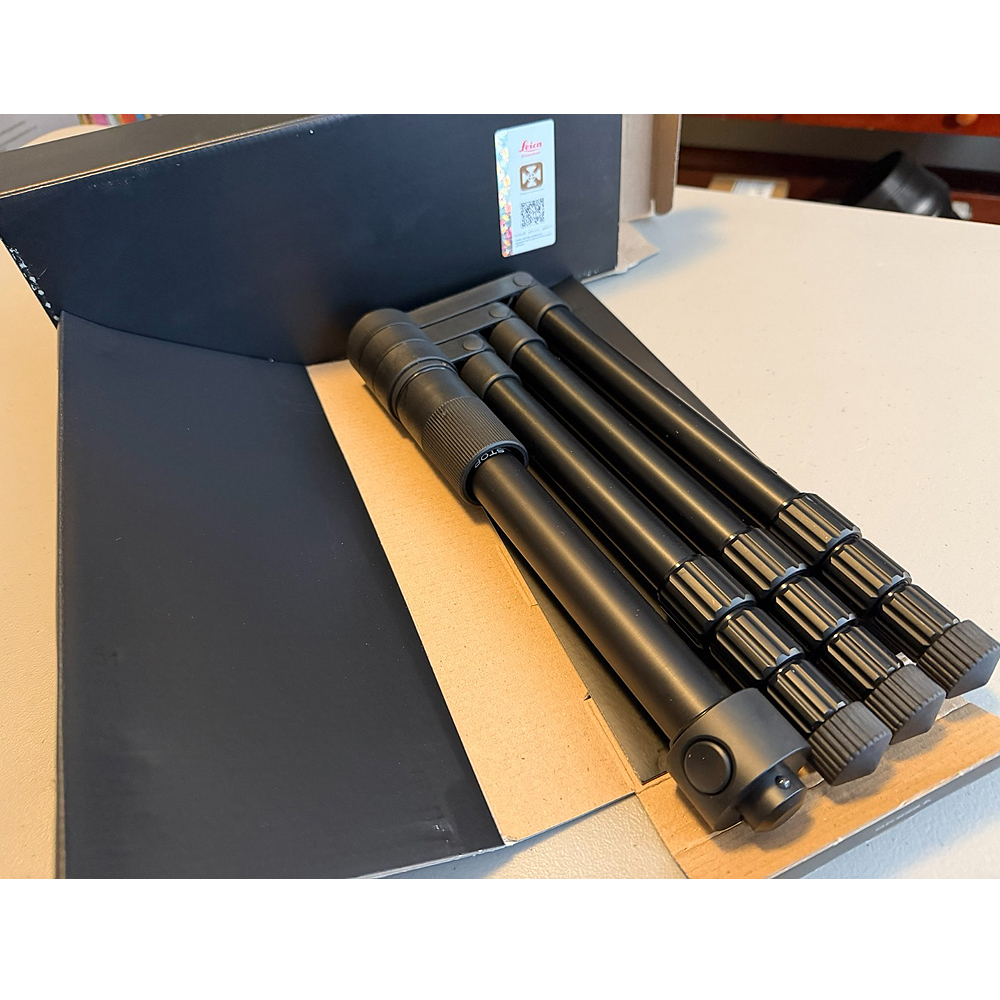

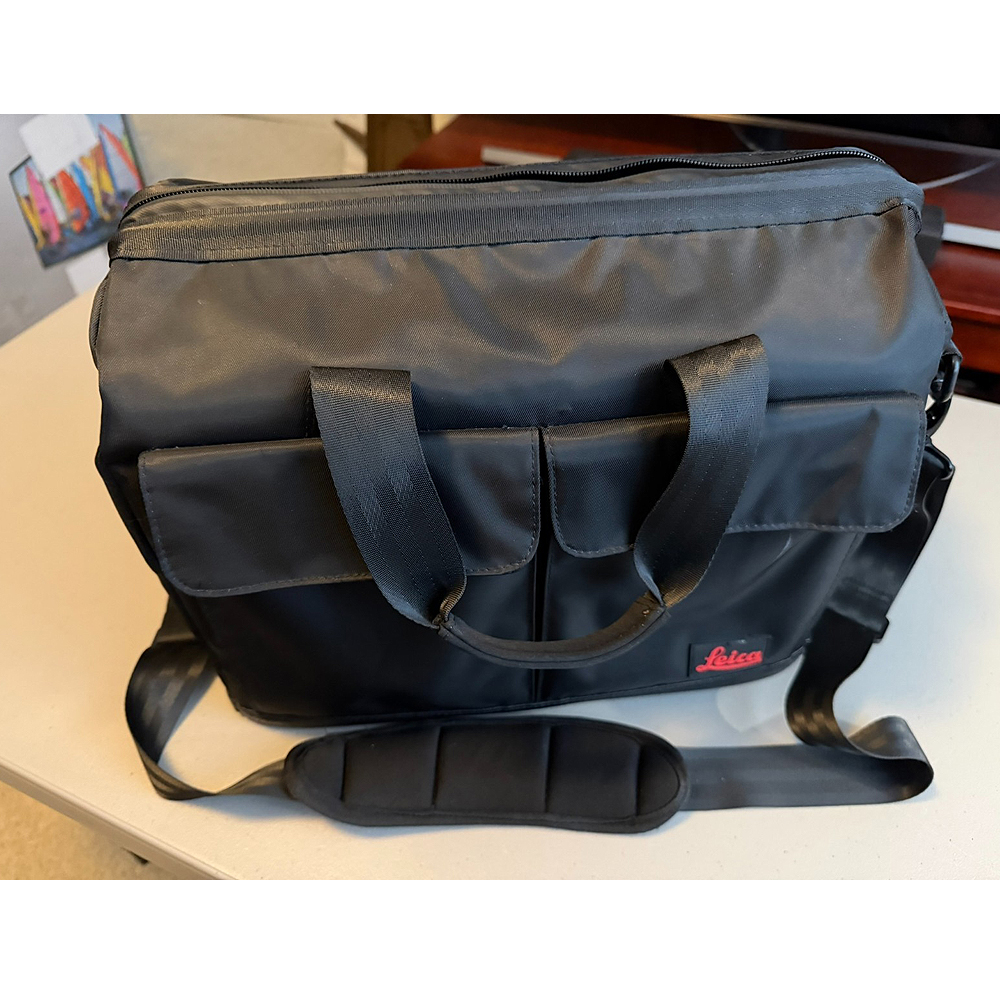

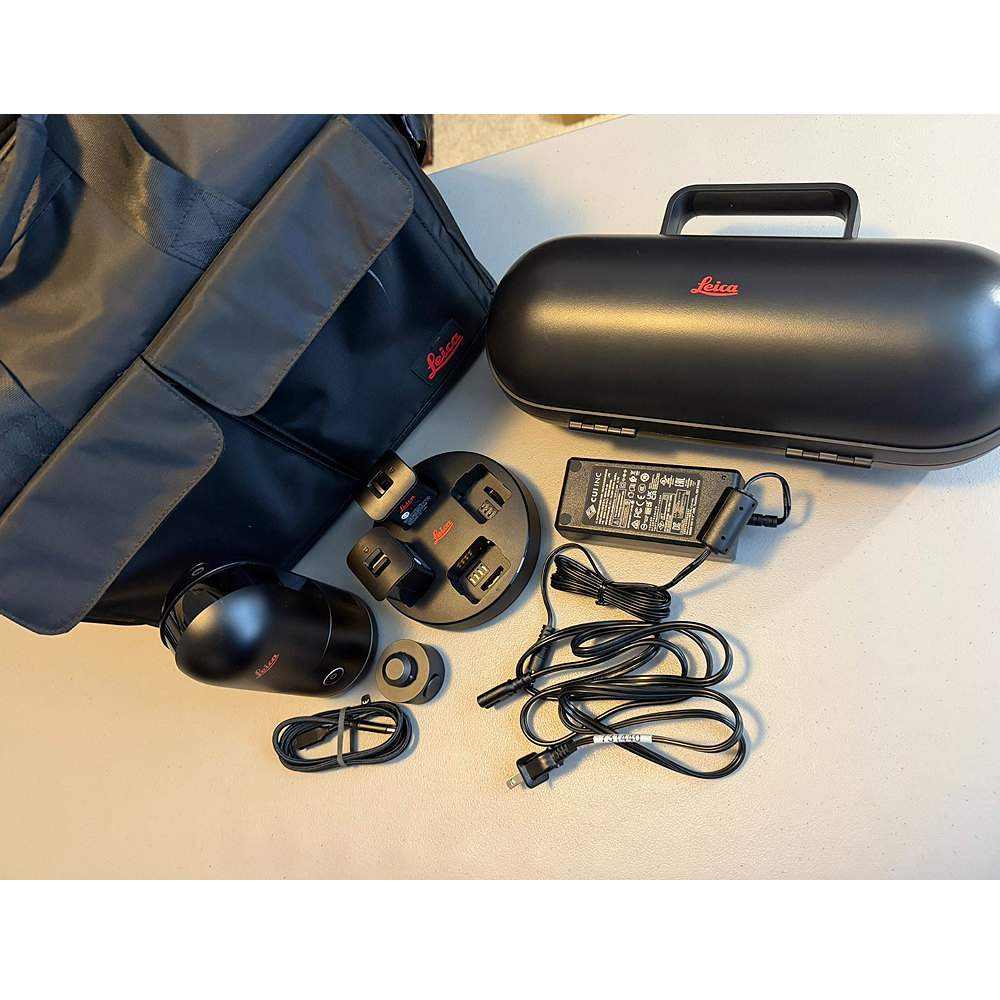

Leica BLK360 G2 Laser Scanner Includes:
Users can control the unit with the Leica Cyclone FIELD 360 mobile app, which enables pre-registered scans with the VIS and streams image and point cloud data to an iPad or final project data to Cyclone REGISTER 360 or Cyclone REGISTER 360 (BLK Edition) via Wi-Fi, with full data synchronization between devices. With automated workflows in both software offerings, the new BLK360 dramatically streamlines the reality capture. Simple export of LGS, RCP, or E57 files makes working with point cloud data downstream simple and efficient, allowing users to spend less time processing data and more time creating meaningful deliverables.
The BLK360 also includes a free companion app, BLK Live, allowing the user to control the imaging laser scanner and immediately view captured data for on-site feedback, quality assurance, and quality control, as well as export E57 files. Available for iOS and Android. The new BLK360 also makes it easy to get your data into your preferred software and to share your scans with others. Directly upload your data to HxDR with automatic conversion to OBJ and cloud-based visualization, which also allows others to work with and download your data. Or transfer your data to Leica Cyclone REGISTER 360 or export to E57 via USB-C or WLAN for scan-to-BIM workflows.
Immersive HDR Imaging
The BLK360’s four 13-megapixel cameras capture scenes in high quality and 5-bracket HDR imaging captures all the details in challenging lighting conditions and environments, for more immersive photospheres and colorized point clouds.
VIS Scan Alignment System
Leica Geosystems Visual Inertial System (VIS) Technology, available on our RTC360 scanner, is now built into the new BLK360 to combine your scans automatically. Each scan you capture is combined with your previous scan in the field, so you'll spend less time aligning data and more time creating valuable deliverables.
Ultra-Fast Scanning

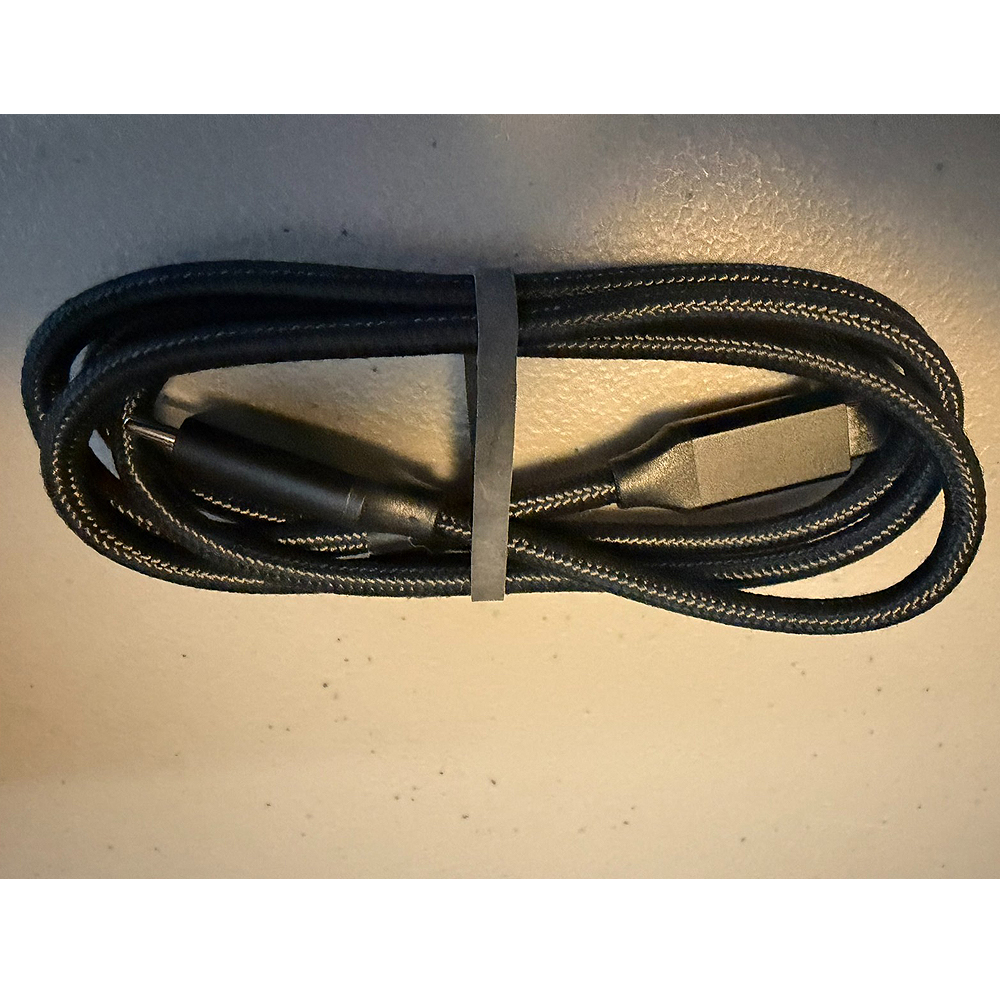

The enclosed LiDAR sensor in the new BLK360 captures point clouds at a rate of 680,000 points per second and completes a scan with spherical images in 20 seconds, with flexible scan settings to make sure you capture everything you want and need. High-Speed Data Transfer The USB-C port on the BLK360 gives you a faster, easier way to transfer your data, 9 times faster than the BLK360 G1. Without relying on WLAN, you’ll benefit from fast and stable data transfers.
Upload to HxDR
The new BLK360, like the BLK2GO, BLK2FLY, and BLK ARC, connects directly to HxDR, Hexagon’s cloud-based storage, visualization, and collaboration platform for reality capture and geospatial data. Upload scans to HxDR for simple cloud storage, including any E57 file or directly from compatible Leica BLK scanners.
Download the App!
The Cyclone FIELD 360 mobile-device app is free to download. A valid Cyclone REGISTER, Cyclone REGISTER 360 or Cyclone REGISTER 360 (BLK Edition) license is required to activate Cyclone FIELD 360. Download the Cyclone FIELD 360 app from the App Store and Google Play.
THE FEATURES:
> Boitier : Black anodized aluminum
> Dimensions : Height: 155mm; Diameter: 80mm
> Weight : 75gr

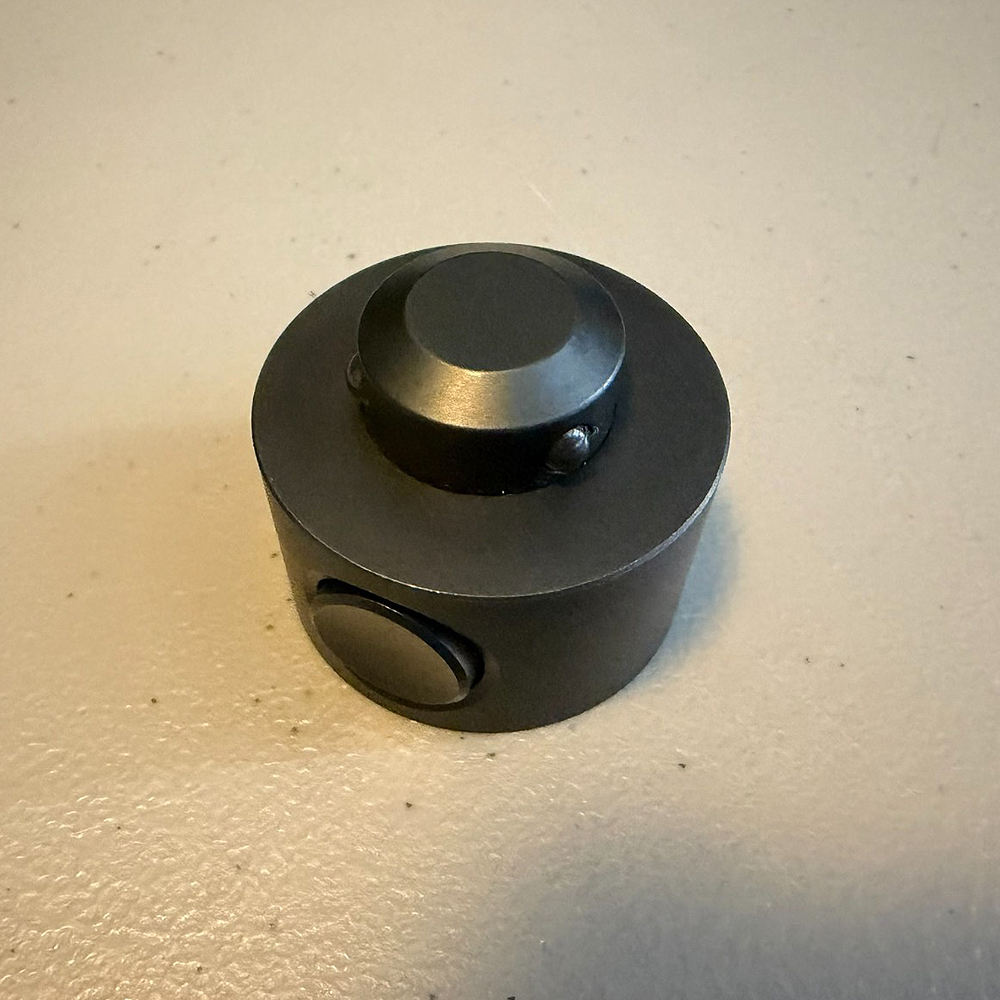

> Assembly : Fast fixing actuated by a button
> Operation : Single button control
> Remote control : Appli iOS and Android
> Communication : Integrated LAN wireless network ( 802.11 b / g / n )
> Internal memory : up to 1500 scans
> Instrument direction : Vertical and upside down

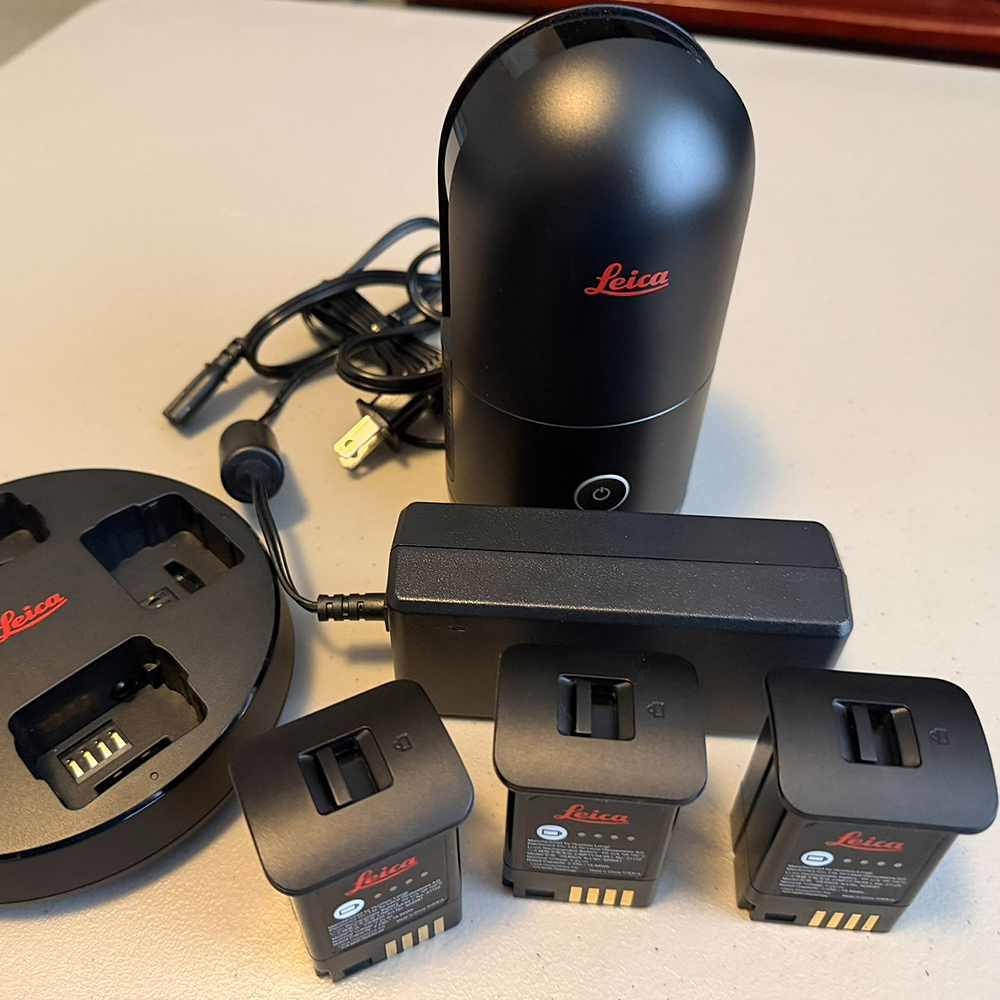

> Battery type : Internal rechargeable Li-Ion battery ( Leica GEB825 )
> Battery capacity : 70 stations
> Distance measurement : High speed flight time reinforced by WFD technology (Waveform Digitizing)
> Laser class : 1 ( according to IEC 60825-1: 2014 )
> Wavelength : 830 nm
> Field of vision : 360 ° ( horizontal ) / 270 ° ( vertical )
> Scope : Mini 0.5 - up to 45 m
> Frequency : Up to 680,000 pts / s
> Accuracy : 4 mm at 10 m / 7 mm at 20 m
> Measuring methods : 4 resolution settings, at the user's choice
> Photo : 4 cameras of 133 Mpixel, capture of the complete dome in 104 Mpx, HDR, LED flash, calibrated spherical image, 360 ° x 270 °
> Measuring speed : < 30 seconds for the digitization of the complete dome, spherical image
> Robustness : Designed for indoor and outdoor uses
> Protection : Protection IP54 against the penetration of solid / liquid particles ( IEC 60529 )
