Prodim Proliner 8CS System

Proliner CS Series serve all fabricator solutions and we are sell a mint condition 2016 Prodim Proliner 8 3D Digital Templating System Measuring Device, used with great condition and ready to use and comes with a new certificate of calibration.



2016 used Prodim Proliner 8CS Templating System, very great condition and ready to use and comes with a new Certificate of Calibration. A laser templating machine is used for measuring and templating countertops and other similar areas where perception is a must. This makes measuring for cutting your material quick and easy. This model measures 3D and was manufactured in 2016. The rechargeable batteries, as well as the power supply via cable, make it very flexible to work with. This totally self-contained unit weighs only 10 kg and has a foldable measuring head for optimal protection during transport. It can be easily stored in overhead compartments in airplanes.

The Proliner has an adjustable beep volume. In the two storage boxes, you can save two batteries, scanners, and even a digital camera. The length of the wire is 7.5 meters with a diameter of 15 meters. The integrated Proliner Leapfrog software makes it possible to measure surfaces even larger than 15 meters. With the extensive integrated CAD software, you can easily complete your drawings on the job site and download it directly to a USB stick. The output is in DXF, CCD, and TXT. The size of the screen is 10.

The Proliner 8 CS is a totally self-contained unit. Advanced in functionality and appearance, this model completes all your measurements on the job site without any problem. Dimensions can be checked and drawings can be edited directly on the Proliner comprehensive integrated CAD software. The Construct Series is the perfect solution for fabricators and installers. The CS machines are durable and designed to be used in tough working conditions. They are lightweight and easily carried on and off job sites. It is the true balance between performance and price.


  • 2D3D / can be upgraded to full 3D
  • Fully portable
  • No leveling and no targets required
  • No hinder and inaccuracies from environmental conditions
  • Integrated leap function to increase range and reach
  • Continuous scribing
  • Digitize large and small details


  • Measure multiple planes / can be upgraded to full 3D
  • Check dimensions
  • Edit drawings
  • Generate CAD files (DXF)
  • Tangential contour for optimal CNC use
  • Application-based industry software and templating apps available


  • 10” touchscreen
  • Weight (10 kg) / Compact housing (38x32x18 cm)
  • Direct working range ≈ 15 m
  • (without relocating the machine with the onboard leap function)
  • Precision of 0.6 mm
  • Built-in water-level sensors (check level and plumb)
  • Bluetooth, USB, and UTP
  • Full set of application-based accessories available


  • Eliminate mistakes
  • One-person operation
  • Solid build and precise Prodim mechanics
  • Less time on the job site
  • No need for physical templates
  • Immediate digital output ready for production
  • No need for third-party computer

What's Includes:

  • (1X) The Proliner 8CS 3D System
  • (1X) Includes the latest software version
  • (4X) Leapfrog Pods

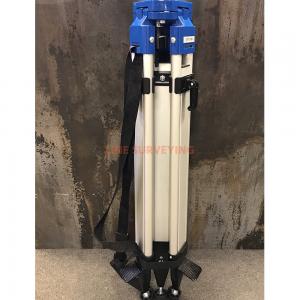

  • (1X) Tripod
  • (1X) Hook Pen
  • (1X) IPT Pen
  • (2X) Battery
  • (1X) Clicker
  • (1X) Battery charger
  • (1X) Backpack
  • (1X) Training CD
  • (1X) Electric cord to plug-in unit
  • (1X) Carrying Case
