Prodim Proliner 8X IS

Prodim Proliner 8X IS Model Digital Measuring System SET is a digital measuring unit that is perfect for all measurements in the industry field, like glass, metal, canvas & textile, and yacht building.

$6700

Description

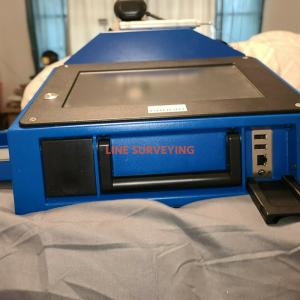

Prodim Proliner 8X IS Model Digital Measuring System SET with accessories for sale. Year 2017 - Barely used and in great shape, 100% working condition! Calibrated & Certificated by Prodim Authorized Service. Prodim Proliner 8 IS Model is a portable digital measuring unit that is perfect for all measurements in the industry field, like glass, metal, canvas & textile, and yacht-building. Unique in both functionality and appearance and it completes all your measurements on location without any problem. The integrated CAD software and the large 10” widescreen allow users to check dimensions and edit drawings directly on the Proliner on-site. The Proliner 8X IS supports both 2D and 3D versions. To benefit from optimal power flexibility, the Proliner 8X IS comes with rechargeable batteries and a socket adaptor.

HARDWARE:

  • Dimensions machine (cm): 38 x 32 x 18

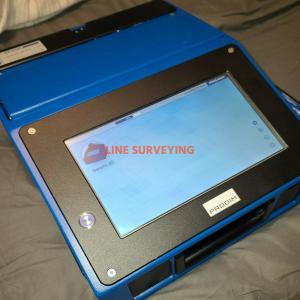

  • Dimensions touch screen: 10”
  • Tripod tting hole: double
  • Internal storage for acc: double
  • Water-level sensors: Yes
  • Motion detection: Yes
  • Data storage capacity: 8GB (ca. 80.000 DXF files)

RANGE:

  • Horizontal envelope: 360º
  • Vertical envelope: + 65º to - 35º
  • Minimum working range: 0 m
  • Maximum working range: 14 m diameter

ENVIRONMENTAL:

  • Altitude: -700 to 3000 meters
  • Humidity: 0 to 98% (non-condensing)
  • Operating temperature: - 10º C to 50º C

CONNECTIVITY:

  • USB: Yes
  • UTP Network socket: Yes
  • Bluetooth: Yes

SOFTWARE:

  • Measuring 2D
  • Measuring 3D
  • Leapfrog
  • Check dimensions
  • Modify drawing
  • Generate CAD file (DXF)

POWER SUPPLY:

  • Cable
  • Battery

Includes on set:

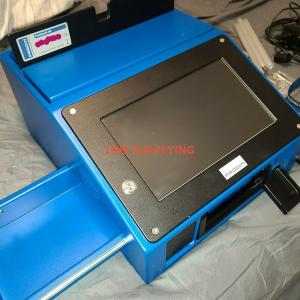

  • (1X) The Prodim Proliner 8X IS 3D System

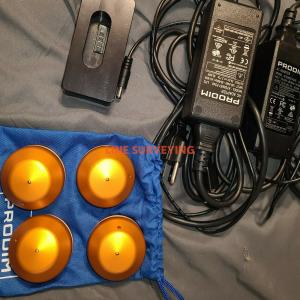

  • (4X) Leapfrog Pods

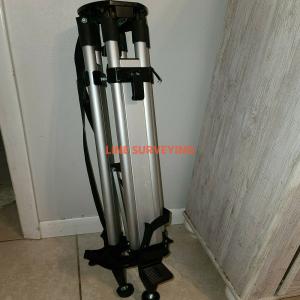

  • (1X) Tripod

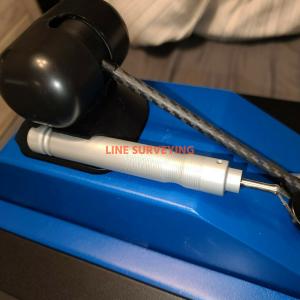

  • (1X) Hook Pen
  • (1X) IPT Pen

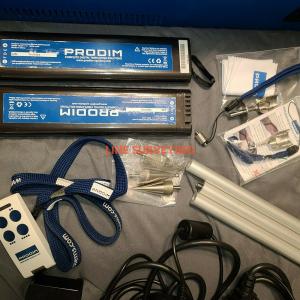

  • (2X) Battery
  • (1X) Clicker
  • (1X) Battery charger
  • (1X) Backpack
  • (1X) Training CD
  • (1X) Electric cord to plug-in unit
  • (1X) Carrying Case
  • Download-Prodim-Proliner-8X-IS-System
