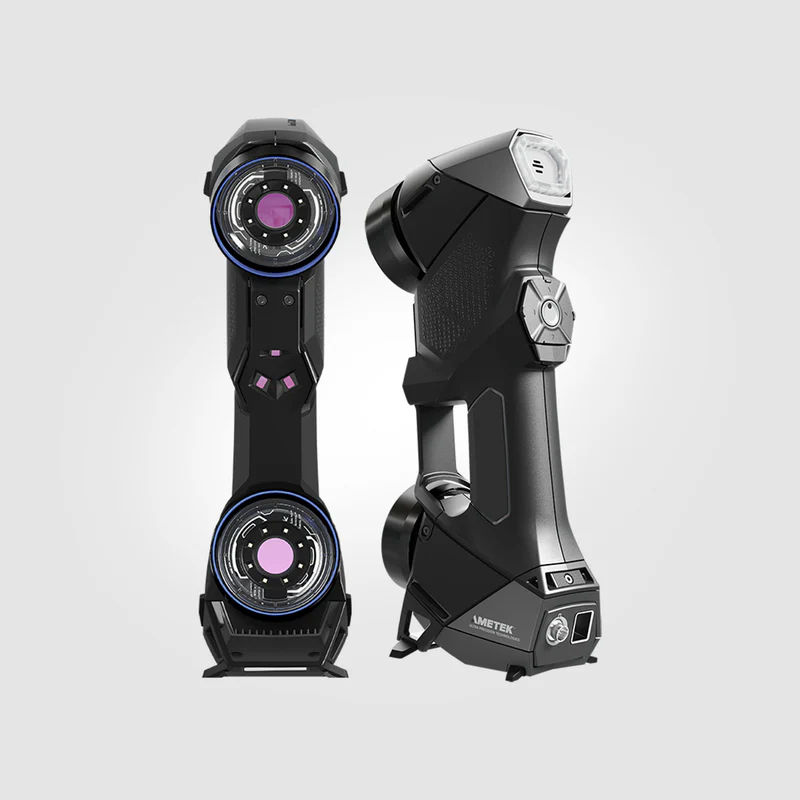

The HandySCAN 3D™ lineup is the benchmark in portable metrology-grade 3D scanners. Designed for design, manufacturing, and metrology professionals, the BLACK Series is the most effective and reliable method for acquiring accurate 3D measurements of physical objects anywhere. This fast and versatile patented handheld 3D scanner is straightforward to use and delivers highly accurate and repeatable results, even in challenging environments and with complex surfaces.

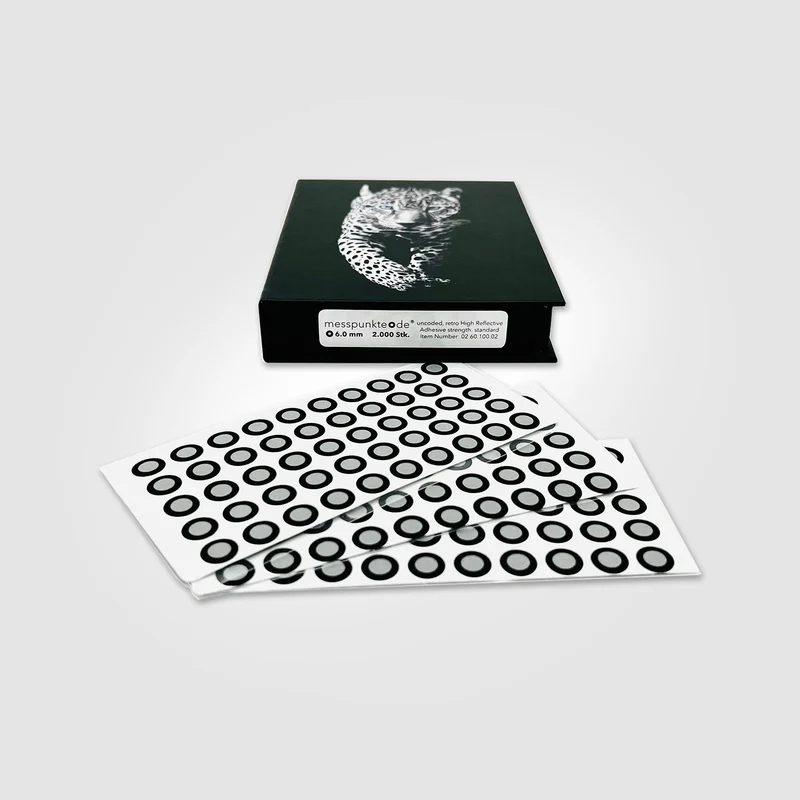

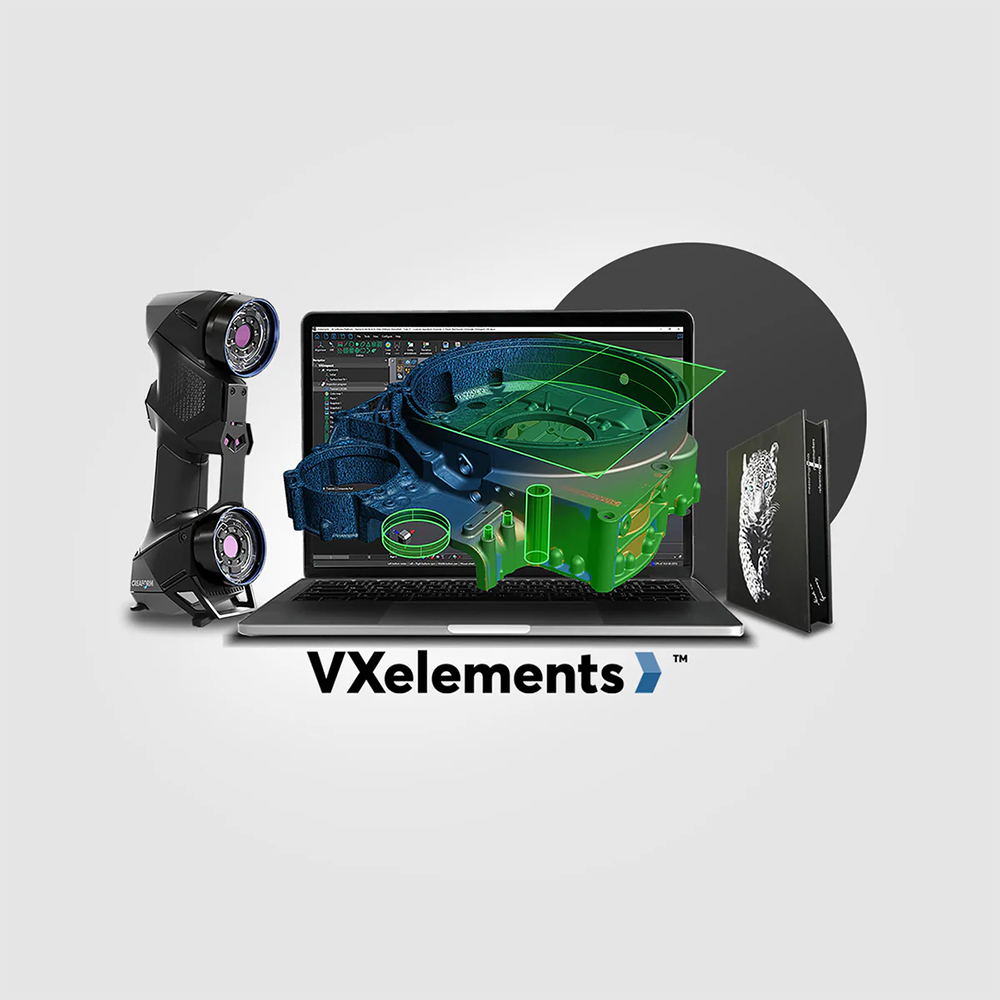

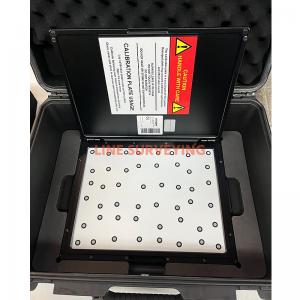

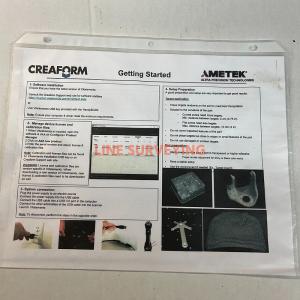

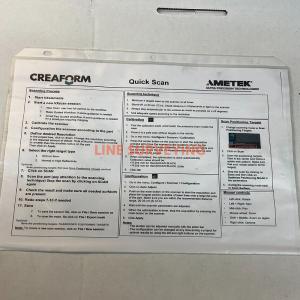

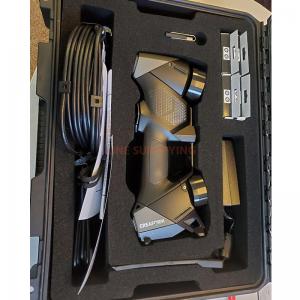

What's includes:
SYSTEM REQUIREMENTS:
1. Windows: 7, 8 or 10 (64-bit)
2. Dedicated Graphics Card with 8 GB Memory (16 GB Video Memory Recommended)
3. 2.6GHz+ Quad Core Processor (6+ Cores Recommended)
4. 32 GB RAM (64 GB Recommended)
5. 3-Button Scroll Wheel Mouse
INDUSTRY:
> Aerospace, Automotive/Transport, Consumer Products, Heavy Industries, Manufacturing, Power Generation, Research and Education
TECHNICAL SPECIFICATIONS:
| Version |
HandySCAN BLACK |
HandySCAN BLACK Elite |
Accuracy |
0.035 mm (0.0014 in) |
0.025 mm (0.0009 in) 0.012 mm (0.0005 in) with Limited Edition |
| Volumetric accuracy | 0.020 mm + 0.060 mm/m (0.0008 in + 0.0007 in/ft) |
0.020 mm + 0.040 mm/m (0.0008 in + 0.0005 in/ft) 0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft) with Limited Edition |
| Volumetric accuracy with MaxSHOT Next Elite | 0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) | |
| Measurement resolution | 0.025 mm (0.0009 in) | |
| Mesh resolution | 0.100 mm (0.0039 in) | |
| Measurement rate | 800,000 measurements/s | 1,300,000 measurements/s |
| Light source | 7 blue laser crosses | 11 blue laser crosses (+ 1 extra line) |
| Laser class | 2M (eye-safe) | |
| Scanning area | 310 x 350 mm (12.2 x 13.8 in) |
|
| Stand-off distance | 300 mm (11.8 in) |
|
| Depth of field | 250 mm (9.8 in) |
|
| Part size range (recommended) | 0.05–4 m (0.15–13 ft) |
|

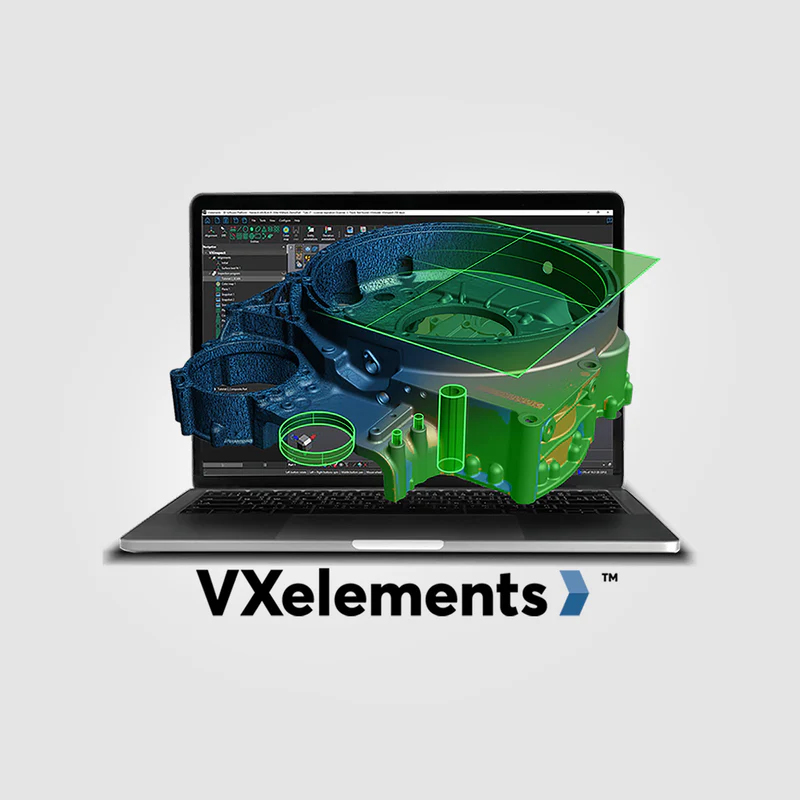

| Software | VXelements | |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf | |
| Compatible software | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) | |
| Weight | 0.94 kg (2.1 lb) | |
| Dimensions (LxWxH) | 79 x 142 x 288 mm (3.1 x 5.6 x 11.3 in) |
|
| Connection standard | 1 X USB 3.0 | |
| Operating temperature range | 5-40 °C (41-104 °F) |
|
| Operating humidity range | 10-90% | |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE | |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X | |
