Peel 2-S 3D Handheld Scanner
Price
USD 2,600
Peel 2-S is based on the same proven technology as the peel 2 scanner but has been optimized to scan smaller parts. Its smaller field of view provides it with a whopping resolution of up to 0.1mm!
Product Information
Up for sale Peel 2-S 3D Handled Scanner Complete KIT, demo-used only for demo purpose and has been used but not heavily, it is in excellent condition, manufacture 2021 comes with a fresh certificate of calibration. Peel 2-S scanner is based on the same proven technology as the peel 2 scanners, but has been optimized to scan smaller parts. Its smaller field of view provides it with a whopping resolution of up to 0.1 mm! Excellent when used with a simple turntable, it can also be taken to a specific location and capture the finest of details.

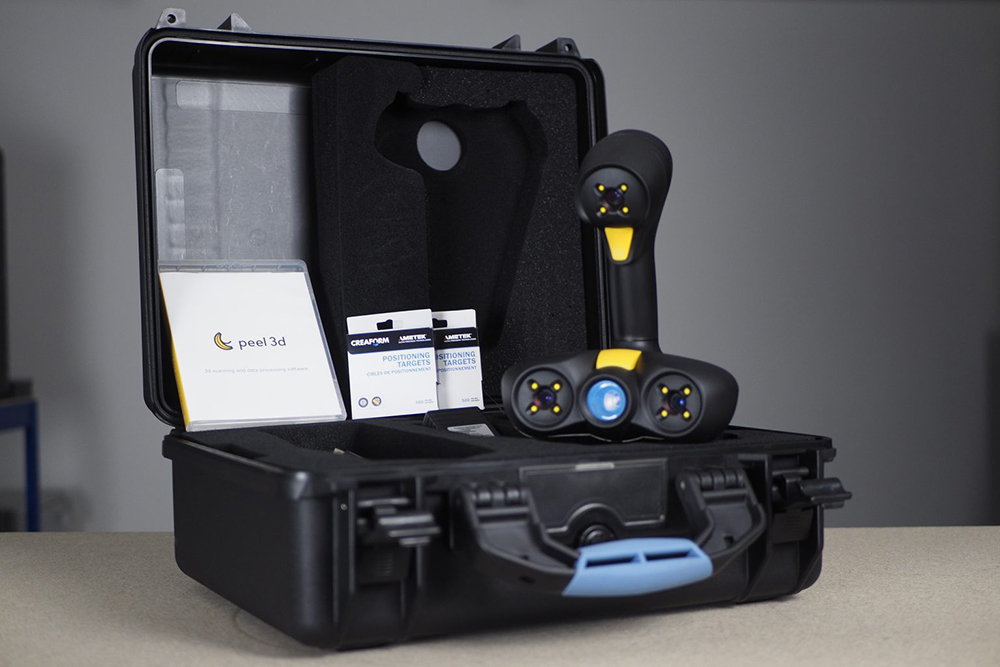

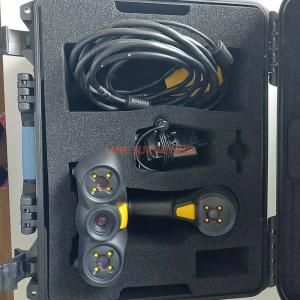

What's includes:
- (1X) Peel2 3D-Scanner
- (1X) Peel 3D Positioning Targets Regular
- (1X) USB Cable
- (1X) Power Supply
- (1X) Peel 2-S Positioning targets (light adhesive)

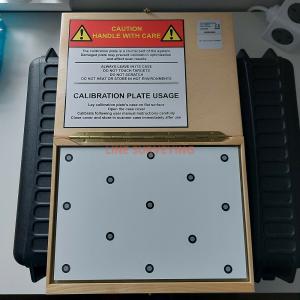

- (1X) Certificate of calibration
- (1X) HDMI Cable
- (1X) USB with Peel 3D Scan software
- (1X) Peel 3D tracking dots

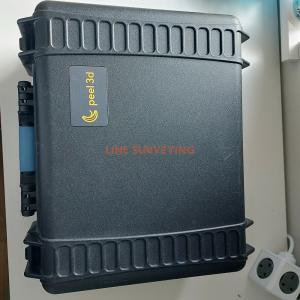

- (1X) Rugged Case
Leveraging over ten years of R&D experience in 3D scanning, peel 3D once again targets the mid-range market with its latest handheld, full-color 3D scanner – the peel 2-S. Based on the company’s previously launched peel 2, which we reviewed just a few months ago, the peel 2-S has been revamped to optimize it for small and intricate part scanning, with a smaller field of view and resolutions of up to 0.1mm. Yes, the S stands for ‘small’.
TECHNICAL:
- Part size range (recommended) 0.3 – 3.0 m
- Accuracy Up to 0.100 mm
- Mesh resolution 0.500 mm
- Measurement rate 550,000 measurements/s
- Volumetric accuracy (based on part size) 0.500 mm/m
- Scanning area 380 x 380 mm
- Stand-off distance 400 mm
- Depth of field 250 mm
- Light source White light (LED)
- Texture resolution 50 to 150 DPI
- Positioning methods of Geometry and/or targets
- Dimensions 150 x 171 x 251 mm
- Connection standard 1 x USB 2.0
- Output formats .DAE, .FBX, .ma, .obj, .ply, .stl, .txt, .wrl,.x3d,.x3dz, .zpr, .iges, .step, .DXF
- Operating temperature range 5–40 °C
- Operating humidity range (non-condensing) 10–90%
- Certifications EC Compliance (Electromagnetic Compatibility Directive
