Artec Ray 3D Scanners
Price
USD 9,900
Artec Ray 3D Scanners offering ultra-precise images with clean data capture and reduced processing times, the Artec Ray 3D Scanner is the ideal solution for your next large-scale project and compatible with Artec handheld scanners.
Product Information

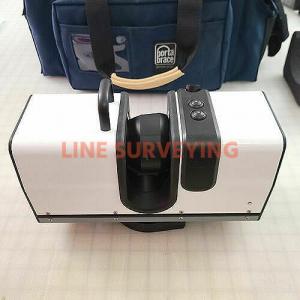

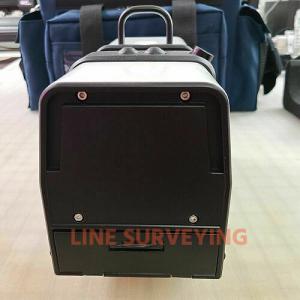

Up for sale excellent condition Demo used Artec Ray Scanner included Studio software with an unlimited lifetime subscription, Manufactured 2020 and this setup is in great condition and ready to go to work.
Artec Ray 3D Scanner is High accuracy long-range laser 3D scanner. The fastest and most accurate long-range 3D scanner with laser technology for precise capture of large objects such as wind turbines, ship propellers, airplanes, and buildings. Producing 3D scans of the highest quality, Artec Ray scans with submillimeter distance precision and best in class angular accuracy. As a result, data capture is noticeably cleaner than that from other 3D laser scanners, with noise levels at an absolute minimum. This speeds up data processing significantly, making it a hassle-free.
Lightweight and user-friendly, Artec Ray was specially designed to ensure you get the most out of this powerful 3D laser scanner, whether it is getting the 3D measurements for quality control of a large industrial object or creating an accurate 3D model for heritage preservation. With no need for any lengthy preparations, you can 3D scan almost anything by simply mounting your Artec Ray on a tripod in front of your object and pressing a button!
- Ultra-high precision, fast laser 3D scanner with submillimeter precision to ensure you capture every detail
- Scan large vehicles, pipes or buildings.
- Cleanest 3D data capture for minimum post-processing time.
- Ideal for reverse engineering and inspection.
WArtec Ray 3D Scanner what's includes:

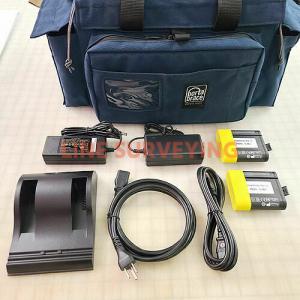

- (1X) ARTEC Ray Scanner
- (2X) Batteries Li-Ion 14V of 49Wh (Removable)
- (1X) Power supply with connection cable to RAY
- (1X) Charger for 2 batteries at the same time
- (1X) USB cable to connect the scanner to a PC (3 Meter)
- (1X) Tread Adapter
- (2X) Micro 32 GB SD cards with an SD card backup system

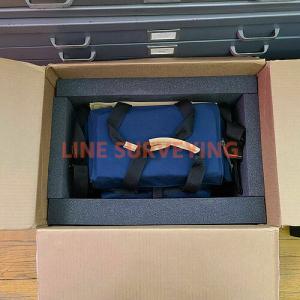

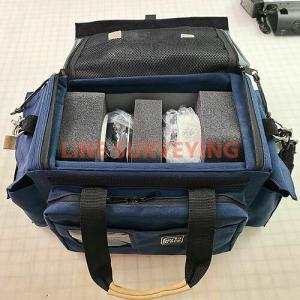

- (1X) Carrying Case

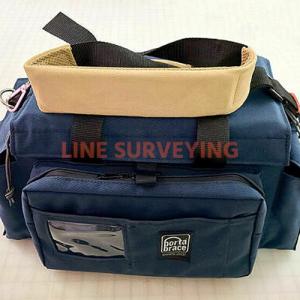

- (1X) Transport bag
- Download: Artec-Ray-3D-Laser-Scanner
Accessible and convenient 3D data capture
Portable and compact, this versatile long-range LIDAR solution is the latest in 3D laser scanning. An inbuilt battery lets you scan both indoors and outdoors for up to 4 hours, without a need for a power source nearby, making this a perfect solution for onsite 3D scanning.
Advanced software compatibility
3D scan and process data directly in the powerful Artec Studio software with a wide range of comprehensive tools available, then seamlessly export to Geomagic Design X at the touch of a button to make the most out of your 3D laser scanning experience.
Advanced software compatibility 3D scan and process data directly in the powerful Artec Studio software with a wide range of comprehensive tools available, then seamlessly export to Geomagic Design X at the touch of a button to make the most out of your 3D laser scanning experience.
Control Artec Ray with your phone or tablet
Using the Artec Remote app, you can easily scan all angles of a large object without being tethered to a computer. The scanning process can be controlled by any mobile device or tablet via Wi-Fi. The Artec Remote is available for iOS and Android.
The Complete 3D Scanning Package
Pair Artec Ray with an Artec handheld 3D scanner, such as Eva or Spider, to effortlessly capture difficult to reach areas, e.g. the interior of a car, or to add intricate detail to a large-scale 3D model. The smart combination of Ray’s long-range 3D scanning capabilities along with the convenience and precision of all of Artec’s handheld 3D scanners ensures limitless 3D scanning potential.
A wealth of integration possibilities
The head of the scanner can be mounted to a robotic arm or conveyor system for automated 3D scanning, or synced with multiple devices and used in multi 3D scanner installations.
No need for targets
As with all Artec’s full powered 3D scanners, Leo uses advanced hybrid geometry and texture tracking, meaning you can really just point at your object and shoot. No need to stick targets on it (and then remove them!)
| Specifications | High Quality Mode | High Sensitivity Mode |
| Recommended work range | 1-50 m | 1-110 m |
| Ranging error | 0.7 mm @ 15 m | <0.9 mm @ 15 m |
| Angular accuracy | 25 arcsecs | |
| Range noise, 90% reflectivity | 0.12 mm @ 15m | 0.25 mm @ 15 m |
| Range noise, 10% reflectivity | 0.3 mm @ 15 m | 0.7 mm @ 15 m |
| Speed, points/second | 208,000 | |
| Scanning modes | Autonomous or via USB | |
| Color | Two fully integrated 5-megapixel cameras | |
| Field-of-view per scan: | ||
| Horizontal (maximum) | 360° | |
| Vertical (maximum) | 270° | |
| System specifications: | ||
| Scanner type | Phase-shift, hemispherical scanner with 360° × 270° field of view | |
| Distance measurement | Phase shift | |
| Laser wavelength | 1550 nm | |
| Laser type | Continuous wave | |
| Laser class | Class 1 (IEC EN60825-1:2007) | |
| Internal Coordinate | 0.001 mm | |
| Angular position data: | ||
| Beam diameter at aperture | 3 mm | |
| Internal angular representation unit (vertical/horizontal) |
1 arcsec |
|
| Scan density control: software selectable: | ||
| Min. vertical point density | 20 points/degree | |
| Min. horizontal point density | 20 points/degree | |
| Max vertical point density | 80 points/degree | |
| Max horizontal point density | 80 points/degree | |
| Physical dimensions and weight: | ||
| Weight with battery | 5.74 kg | |
| Dimensions | L × H × W 287 × 200 × 118 mm | |
| Power specifications: | ||
| External power supply voltage | 14-24 V DC, 30 W | |
| Internal battery power supply | Two Li-Ion 14 V, 49 Wh batteries, powers the scanner for up to 4 hours | |
| Power consumption | 30 W | |
| Computer requirements: | ||
| Supported OS | Windows 8.1, 10 (x64), Windows 11 | |
| Minimum computer requirements | Intel Core i5, i7 or i9, 32GB RAM, GPU with 2 GB VRAM | |
| Applications: | ||
|
||
