GSSI GPR Sir 3000 Control Unit

Up for Sell Used GSSI SIR3000 Ground Penetrating Radar System with 400mhz antenna with 3 Wheeled Car. Manufactured 2017, Excellent condition and ready to work comes with RADAN 6.5 Software.



Up for Sell Used GSSI SIR3000 Ground Penetrating Radar System with 400mhz antenna with 3 Wheeled Car complete KIT. Manufactured 2017, excellent condition and ready to work comes with RADAN 6.5 Software. Typical Uses of the SIR 3000 Include Concrete inspection, Utility location, Geological investigation, Archaeology, Forensics, Bridge deck inspection, Mining, Turf analyses. The success of the SIR 3000 data acquisition system results from GSSI’s 40 years as the world leader in the development and sale of ground penetrating radar. The SIR 3000 is the tool of choice when you need to make sure that your valuable research dollars are well spent. The 3000 sets the standard for small size, lightweight and rugged reliability while delivering superb data quality under tough field conditions. It can run most of GSSI’s huge variety of antennas and connects to GPS devices. When your project calls for non-invasive, fast, high-quality GPR survey results, turn to the SIR 3000. Once you see how easy the instrument is to use and transport, you’ll wonder how you did fieldwork without GPR.

  • Number of Channels: One
  • Antenna Options: Compatible with GSSI analogue antennas
  • Weight: 3.5 kg
  • Storage Capacity: 2-8 GB
  • Optional Software: RADAN 7
  • Accessories: SIR 3000 harness, Acumen Data Bridge for GPS
  • Modular Design: Compatible with most GSSI antennas, Lightweight and portable, Removable and rechargeable batteries.
  • Integrated System: running Windows® based user interface, GPS integration (through external acumen data bridge),
  • High-resolution colour screen that is visible over a wide range of light conditions, Rugged and weather resistant.
  • Deliver Results: Removable compact flash card memory and Large internal data storage.
Typical Uses:
  • Concrete inspection
  • Utility location
  • Geological investigation
  • Archaeology
  • Forensics
  • Bridge deck inspection
  • Mining
  • And many other custom applications
System Specification:
  • Antennas: Compatible with GSSI Analogue antennas
  • Number of Channels: 1 (one)
  • Data Storage: Internal memory: 2 GB Flash memory card Compact Flash port: Accepts CF memory up to 8 GB (using FAT 16 file format)

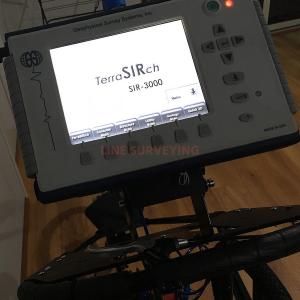

  • Display Enhanced: 8.4: TFT, 800×600 resolution, 64K colors
  • Display Modes: Linescan, O-scope, 3D
Data Acquisition:
  • Data Format: RADAN (.dzt)
  • Scan Rate Examples: 220 scans/sec at 256 samples/scan, 16 bit 120 scans/sec at 512 samples
  • Scan Interval: User-selectable
  • Number of Samples per Scan: 256, 512, 1024, 2048, 4096, 8192
  • Operating Modes: Free run, survey wheel, point mode
  • Time Range: 0-8,000 nanoseconds full scale, user-selectable Gain: Manual or automatic, 1-5 gain points (-20 to +80 dB)
  • Filters: Vertical: Low Pass and High Pass IIR and FIR Horizontal: Stacking, Background Removal
  • Languages: English, French, Italian, German, Spanish, Japanese, Chinese
  • Operating Temperature: -10°C to 40°C ambient
  • Charger Power Requirements: 15 V DC, 4 amps
  • Battery: 10.8 V DC, internal
  • Transmit Range: Up to 100 KHz
  • Available Ports: Antenna input DC power input Serial RS232 (GPS port) Compact Flash memory USB master slave
  • Dimensions: 12.4 (l) x 8.7 (w) x 4.1 (h) in (31.5 x 22 x 10.5 cm)
  • Weight: 9 lbs (4.1 kg) including battery
  • Environmental Water Resistant


  • (1X) GSSI SIR 3000 GPR System

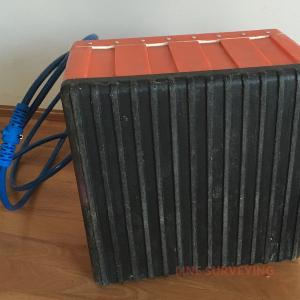

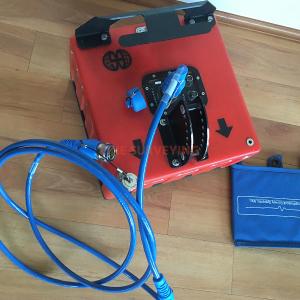

  • (1X) GSSI 400 Mhz antenna

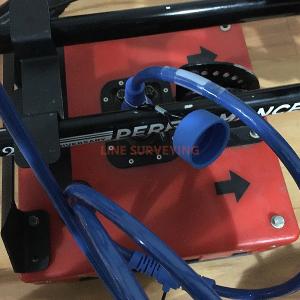

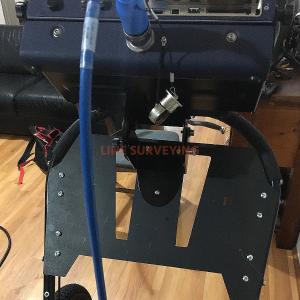

  • (1X) 3 Wheel Utility Cart with Antenna Cable
  • (2X) Lithium-ion Batteries and Charger
  • (1X) Cords
  • (1X) AC Adapter

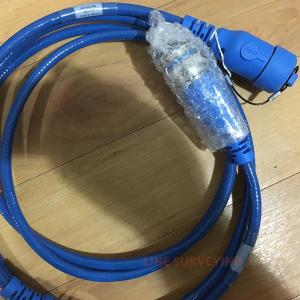

  • (1X) USB Drivee and 2m Antenna Cable
  • (1X) Hardcopy Operation Manual and GSSI Manual CD
  • (1X) Universal Mounting Bracket
  • (1X) Sunshield

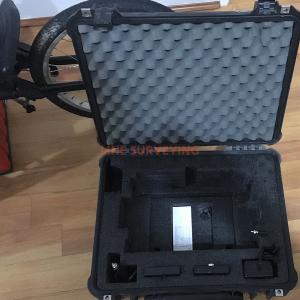

  • (1X) Pelican case
  • Download Gssi-sir-3000-device-system
  • Download GSSI-SIR-3000-Manual
