GSSI Sir 4000 Control Unit

GSSI SIR 4000 is GSSI’s first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows for true versatility and flexibility by supporting a wide range of users across numerous applications.

$4000

Description

We are selling excellent condition used GSSI Sir 4000 Control Unit Ground Penetrating Radar, manufacture 2018 includes Software RadaN 7 Complete Set. The SIR 4000 is GSSI’s first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This controller bridges the legacy of our traditional analog antennas with our next generation of digital offerings. Combined, this allows true versatility and flexibility by supporting a wide range of users, beginner to advanced, in numerous applications. The SIR 4000 offers unique collection modules, including Quick 3D, UtilityScan, StructureScan and Expert Mode for efficient data collection and visualization. It also incorporates advanced display methods and filtering capabilities for ‘in-the-field’ processing and imaging. Fully integrated, the SIR 4000 provides a simple user interface, plug and play GPS integration, and Wi-Fi enabled data transfer functionality.

What's Includes:

  • (1X) GSSI SIR 4000 Control Unit
  • (1X) All-terrain Forklift
  • (1X) 2m Antenna Cable
  • (1X) Robust Transport Case for SIR4000
  • (2X) Lithium-ion Batteries and Charger
  • (1X) AC Adapter
  • (1X) USB Drive
  • (1X) Operation Manual and GSSI Manual CD
  • (1X) Universal Mounting Bracket
  • (1X) Sunshield
  • (1X) Transit Cas

FEATURES:

  • Overall system flexibility - compatible with all GSSI antennas (analog and digital)
  • Simple, user-friendly interactive graphic interface
  • Internal, 32 GB data storage
  • Ruggedized, high-resolution 10.4” LED display
  • Internal GPS data logger
  • Advanced real-time filters
  • Up to 800kHz transmit rate (200kHz transmit rate in the USA and Canada)
  • 32-bit output data format
  • 20,000 nanoseconds max time range
  • Convenient file transfer options
  • FCC, CE, and RSS-220 compliant

SPECIFICATIONS:

SYSTEM
ANTENNAS Compatible with all GSSI antennas
NUMBER OF CHANNELS Records data from 1 single-frequency antenna or 1 dual-frequency antenna
DATA STORAGE 32 GB Flash, 1 GB RAM
DISPLAY Enhanced 10.4” LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32-bit color
GPS Data logged internally

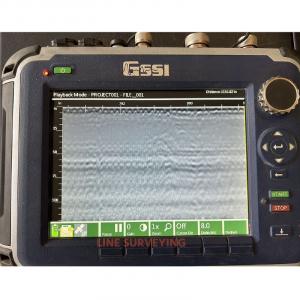

DISPLAY MODES Linescan, Linescan plus O-scope, Wiggle trace Full 3D, 256 color bins are used to represent the amplitude and polarity of the signal
ENVIRONMENTAL RATING IP65
DATA ACQUISITION
DATA FORMAT RADAN  (dzt)
OUTPUT DATA FORMAT 32-bit
SCAN INTERVAL User-selectable, up to 400 scans/sec
NUMBER OF SAMPLES PER SCAN 256, 512, 1024, 2048, 4096, 8192, 16384
OPERATING MODES (time) or survey wheel (distance triggered) or point mode
TIME RANGE 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
STANDARD REAL-TIME FILTERS Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal
ADVANCED REAL-TIME FILTERS Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal
AUTOMATIC SYSTEM SETUPS Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations
AUTOMATIC ANTENNA RECOGNITION Automatic recognition of Smart Antennas to allow maximum compliant transmit rate
LANGUAGES English, Chinese, Japanese, French
OPERATING
OPERATING TEMPERATURE -20°C to 40°C external (-4°F to 104°F)
BATTERY Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)
TRANSMIT RATE Up to 800 KHz (International) US/Canada and CE rates depend on antenna model
INPUT/OUTPUT

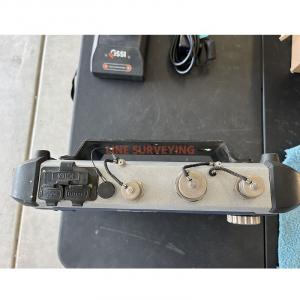

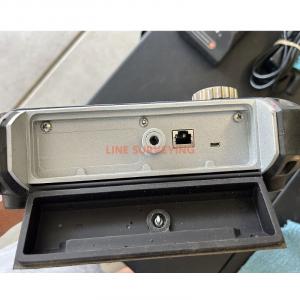

AVAILABLE PORTS Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB
ETHERNET RJ45 100BT Ethernet
USB HOST USB host with external keyboard support, USB flash drive support and USB HUB support
MECHANICAL
DIMENSIONS 14x10x2.75 in (36x25x7 cm)
WEIGHT 10 lbs (4.53 kg) including battery
RELATIVE HUMIDITY <95% non-condensing
STORAGE TEMPERATURE -40°C to 60°C (-40°F to 140°F)
DOWNLOADS

ACCESSORIES:

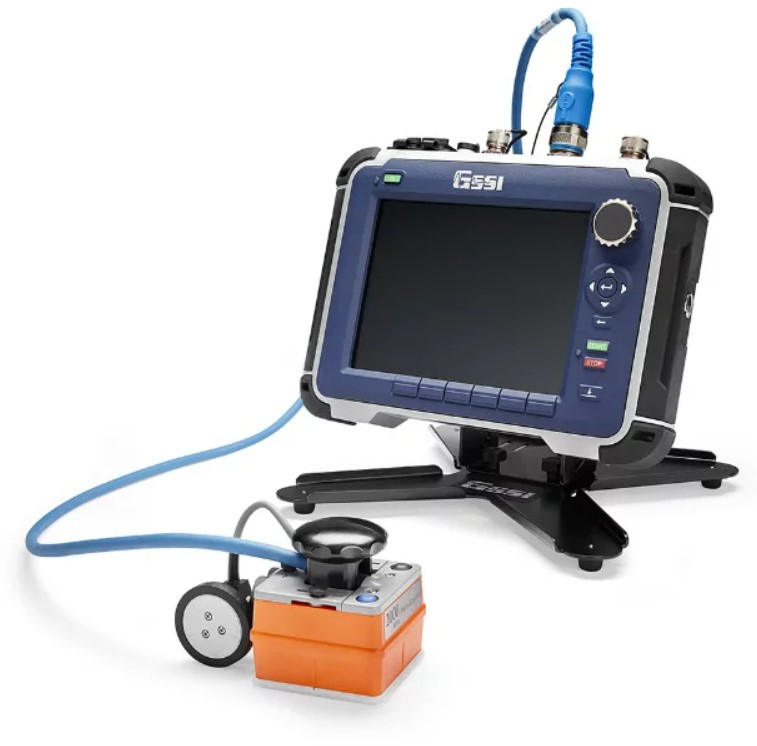

1. GSSI SIR 4000 Stand
The SIR 4000 stand is designed for concrete applications where the user needs to prop up the control unit for viewing the data. This stand includes user-replaceable plastic feet that are designed to allow the stand to be used on rough surfaces.

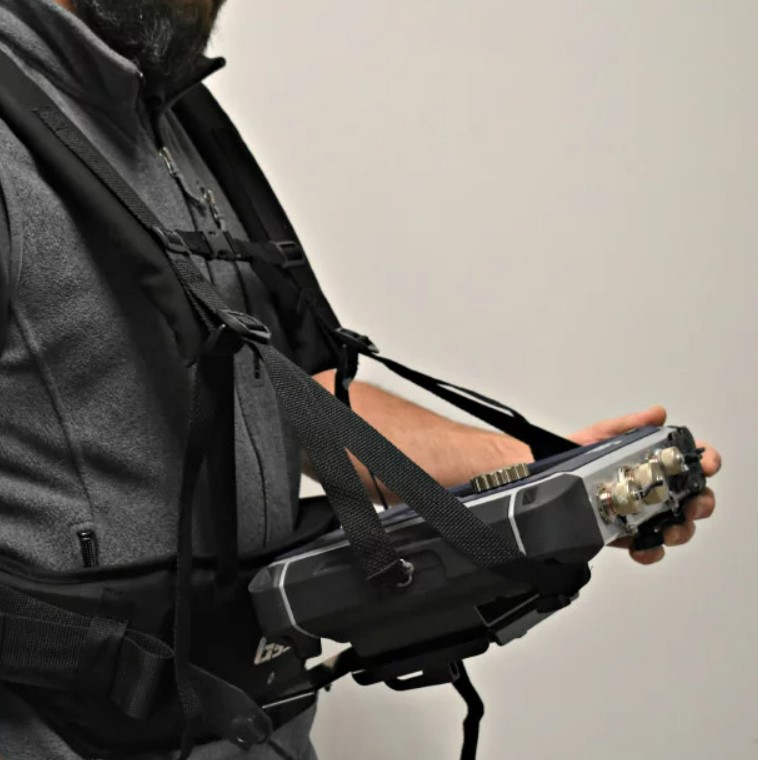

2. GSSI SIR 4000 Carry Harness
The SIR 4000 harness is designed for applications where the user requires the use of both hands during the survey. The harness mounts on to the user’s waist and shoulders to easily distribute the weight of the controller.
