Artec Ray II 3D Scanner

Artec Ray II 3D Scanner With its high accuracy, long-range (up to 130m), and wireless connectivity, the Ray II is a game-changer for capturing large and massive objects such as wind turbines, ship propellers, airplanes, and entire buildings.

$32500

Description

Available for purchase, Artec Ray II is specially produced for Artec 3D by Leica Geosystems. Unlike the Leica RTC360 Laser Scanner Artec Ray II is fully integrated in the renowned Artec Studio 3D scanning and processing software. Scans are captured and processed directly in Artec Studio, using all Artec Studio’s user-friendly tools, technology, algorithms. Introducing the Artec Ray II - The all new Long Range Laser Scanner from Artec 3D has many exciting features. This full color scanner is 10x faster that the original Ray. The Ray II includes a touch screen for easy use. It can perform a full dome scan in under 2 minutes. Accuracy under 2mm and in full color with its 36 Mpx cameras. it also includes an altimeter, GNSS, and compass. The Visual Inertia Systems tracks the movement of the scanner's position for automatic scan alignment. The speed and accuracy of this unit makes it the perfect setup for capturing data for Forensics, Civil Infrastructure, large manufacturing facilities and machines, and even scanning scenes for AR/VR. When paired with the Artec Leo 3D Wireless Scanner this is an unbeatable combination for your scanning capabilities when it comes to fast, full color, metrology solutions.

What's Includes:
(1X) Artec Ray II Laser Scanner

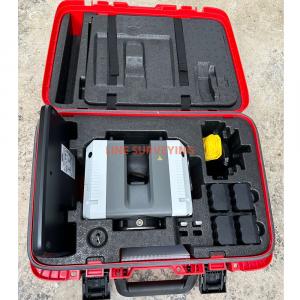

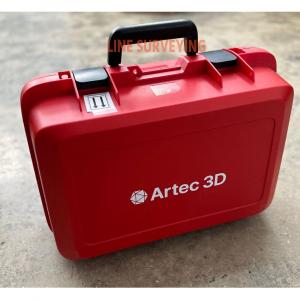

(1X) Transportation container
(4X) Lithium-Ion Batteries
(1X) Multi-charger, 4 slots
(1X) USB Flash Drives, 256GB
(1X) Carbon Line Tripod and Tripod Adapter - allows the use of the scanner with almost any industrial tripod
(1X) Quick Start Guide
(1X) Calibration Certificate Silver - specifies the measurement standard deviation and includes a product specific summary of the relevant measurement values obtained, partly supplemented by measurement reports
(1X) Two Year warranty (extended up to 5 years)
(1X) Artec 3D Lifetime Support - no need to stay on any customer care contract, 24/7 global technical assistance is available to every Artec 3D user for no charge

Artec Ray II 3D Scanner Features:

> SCAN HUGE OBJECTS OR AREAS:
Ideal for scanning large to massive objects such as ship propellers, wind turbines, airplanes, and bridges.
> HIGH 3D ACCURACY AND BEST-IN-CLASS ANGULAR ACCURACY:
Expect data with an uncompromised 3D point accuracy of 1.9 mm from 10 meters. If your device isn’t perfectly calibrated, your scanner will either automatically calibrate itself by scanning the surroundings, or let you know if further action is required.
> BRILLIANT TEXTURE:
Detect even the smallest surface irregularities with Ray II’s 36 MP 3-camera system, with brilliant HDR texture. In heritage preservation, Ray II enables the recreation of every detail in true-to-life color.
> FAST & EASY:
Artec Ray II captures data at a remarkable 2 million pts/s. With easy to use onboard control. Fuss-free scanning is ensured with the intuitive Ray II — with basic features accessible on board, it’s as simple as pressing a button, with no computer or other device needed. And with it's lightweight portability make it a cinch to take anywhere you need.

Artec Ray II 3D Scanner Specifications:

3D Point Accuracy: 1.9 mm @ 10 m, 2.9 mm @ 20 m, 5.3 mm @ 40 m
Angular Accuracy: 18” (0.87 mm @ 10 m)
Range Accuracy: 1.0 mm + 10 ppm
Resolution: 3 user selectable settings: 3 / 6 / 12 mm @ 10 m
Range Noise: 0.4 mm @ 10 m, 0.5 mm @ 20 m
Field of View: 360° (horizontal) / 300° (vertical)
Range: 0.5 — 130 m
3D Capture Rate : Two fully integrated 5-megapixel cameras
Scanning time without texture @ 10 m 1.7 min @ 3mm resolution, 0.85 min @ 6mm resolution, 0.4 min @ 12mm resolution
Scanning time with texture @ 10 m 2.7 min @ 3mm resolution, 1.9 min @ 6mm resolution, 1.4 min @ 12 mm resolution
Color Capture: 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image. HDR: Automatic, 5 brackets
On Scanner

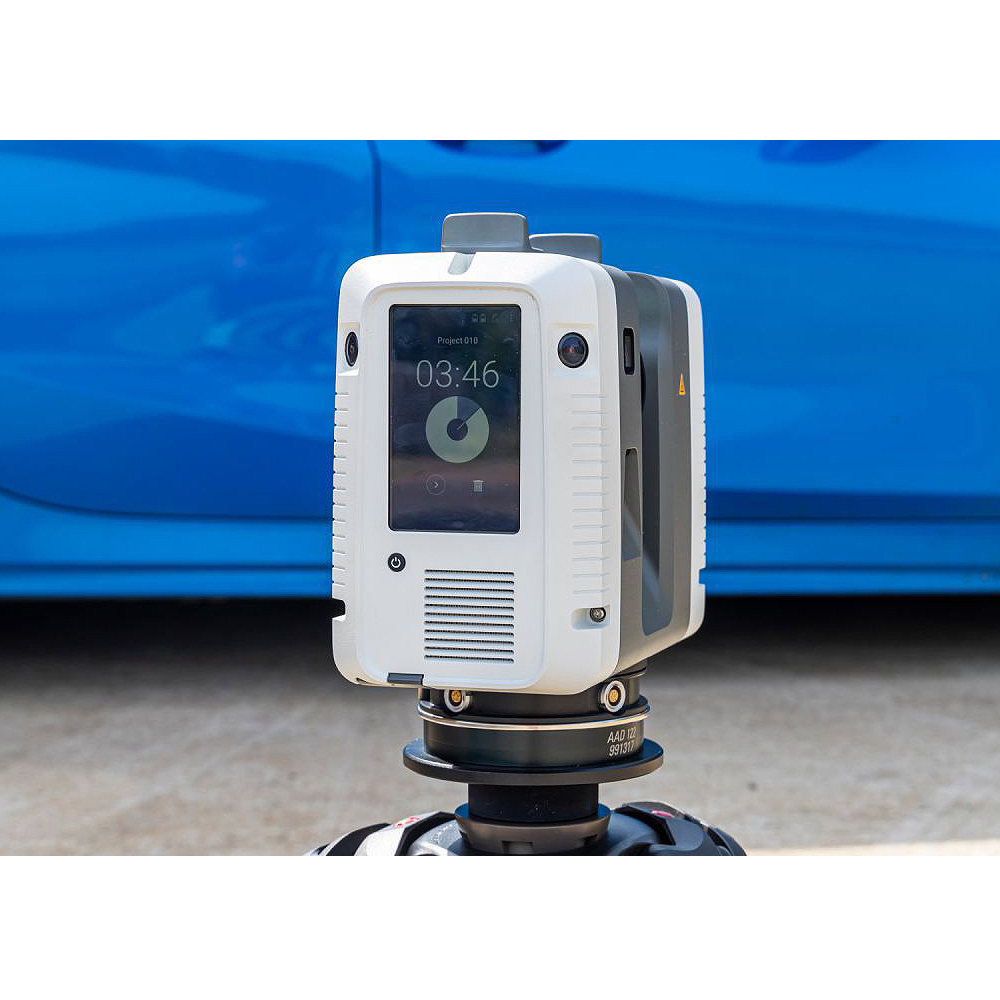

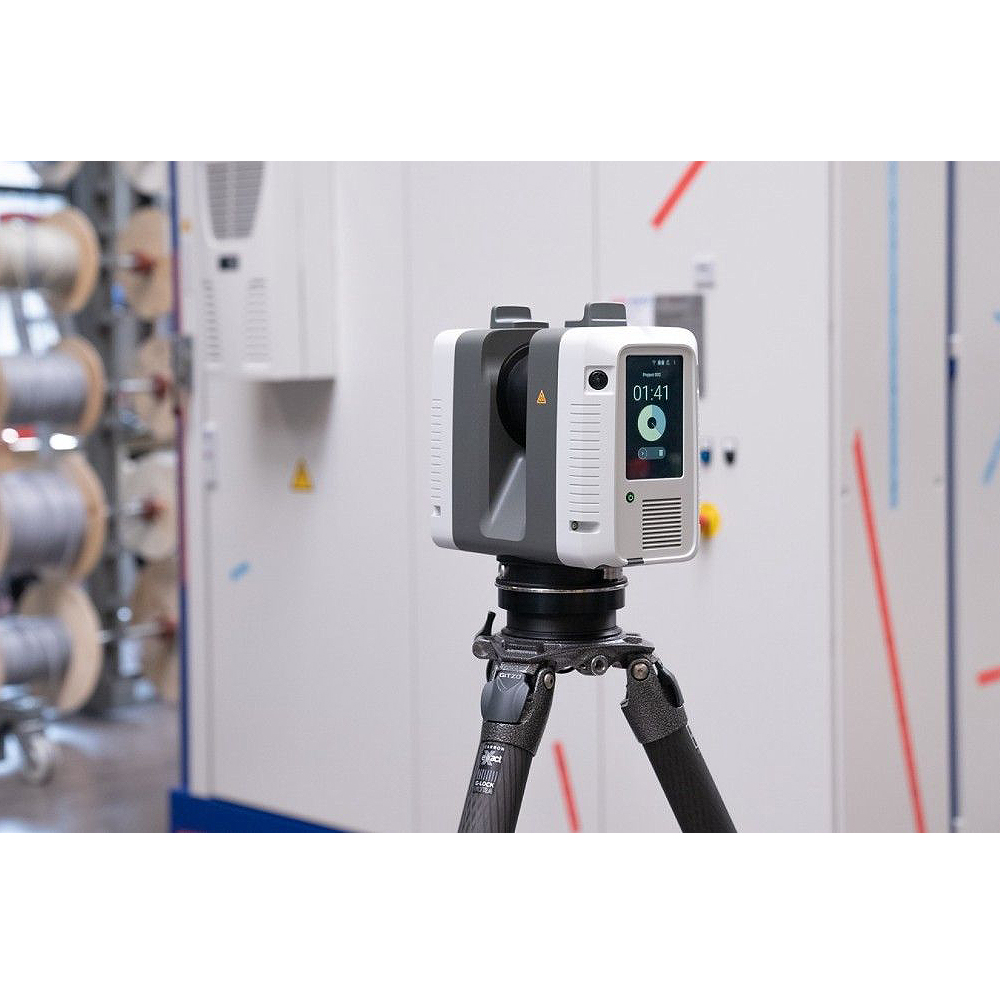

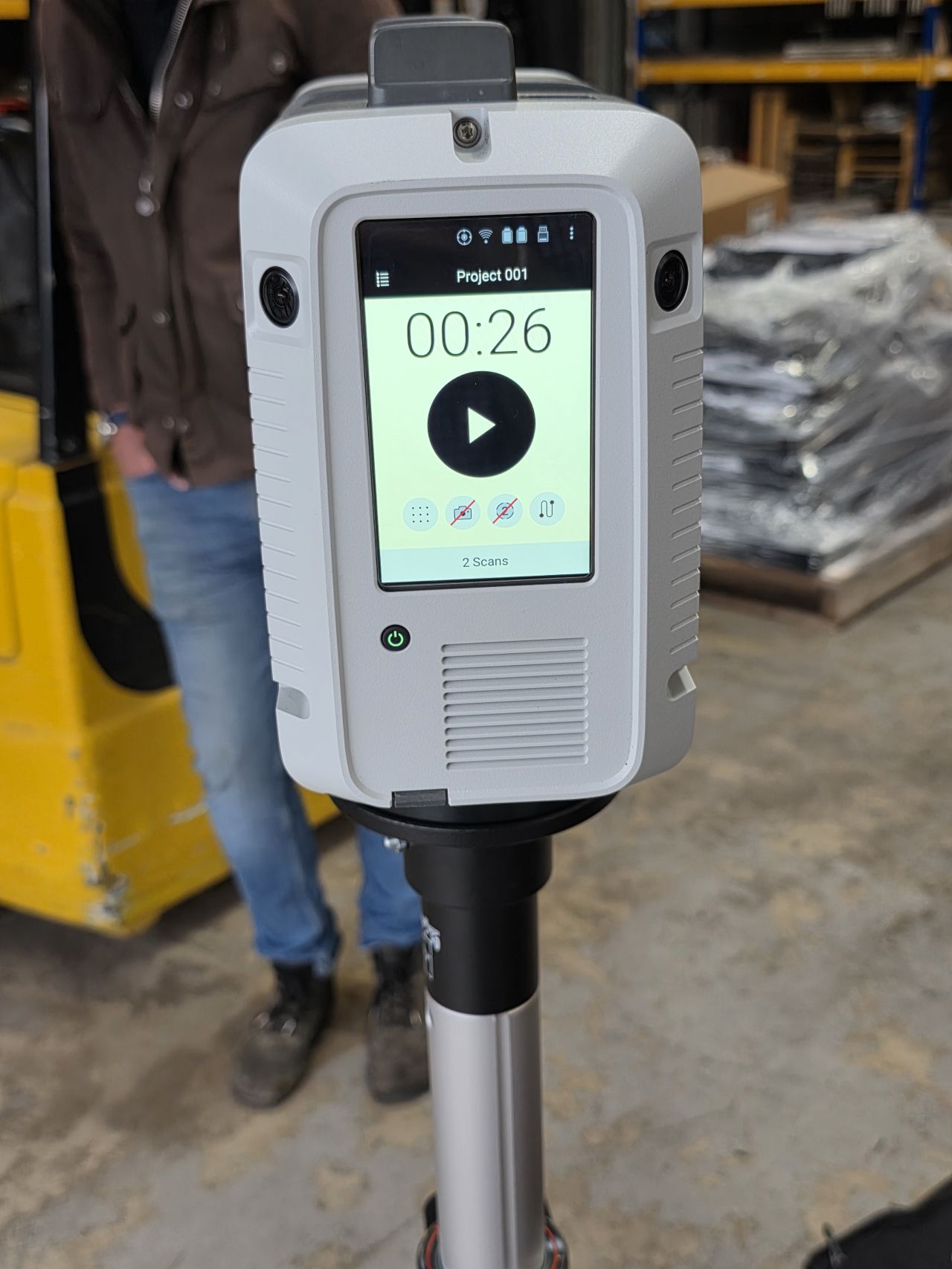

Touchscreen control with finger touch, full color WVGA graphic display 480 × 800 pixels
