Prodim Proliner Tracker 10IS

Pre-owned Prodim Proliner 10IS for sale, very mint condition, manufactured 2016 comes with a 30-day warranty and new calibration certificate. Prodim Proliner 10X is world's most flexible and efficient 3D tracker, scanner and the portable high-end measuring solution.

$5200

Description

Pre-owned Prodim Proliner 10IS for sale, very mint condition, manufactured 2016 comes with a 30-day warranty and new calibration certificate.  Prodim Proliner 10X is world's most flexible and efficient 3D tracker, scanner and the portable high-end measuring solution.

Includes:

  • (1X) Prodim Proliner 10IS
  • (1X) Prodim Proliner IS Series IPT 3.1

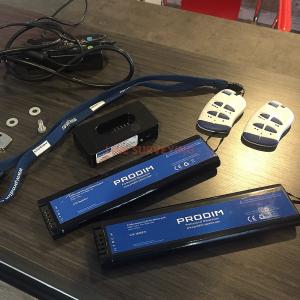

  • (2X) Batteries
  • (1X) Battery charger
  • (2X) a / c adapter

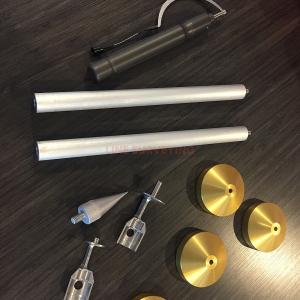

  • (1X) Standard Pointer Pen
  • (1X) Remote Controls
  • (1X) Instruction manual (CD)
  • (2X) Scanner Attachments
  • (4X) Pods
  • (1X) Tripod

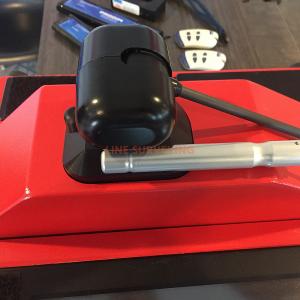

  • (1X) IPT Pen Assembly
  • (1X) Tube hook

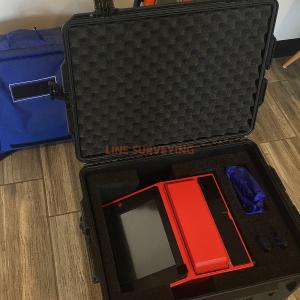

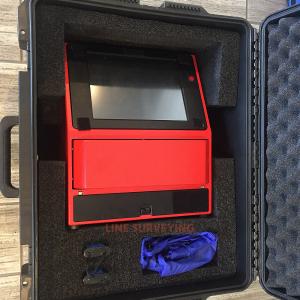

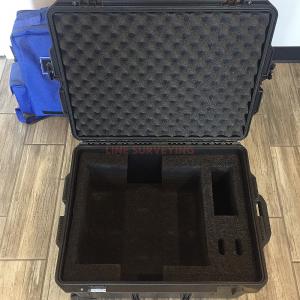

  • (1X) Pelican case
  • (1X) Soft case
  • Download-Prodim-Proliner-10X-IS-System

Proliner Industry Series (IS) is our high end measuring solution. These Proliners are made with a state of the art new wire technology, available with build in water-level sensors and a big touch screen. Their accuracy is > 0,19 mm. These digital trackers are perfectly equipped for high-end measuring, reverse engineering and quality control. The Proliner Tracker 10IS is the world’s one and only none laser based tracker, combining advanced functionality with rugged reliability. This portable self-contained measuring device can handle any measuring project or location without suffering from environmental influences, such as reflections, fog and dust. The comprehensive integrated CAD software along with the large 10” touch screen display, makes it possible to check, edit and complete measurements on the job site. The Proliner Tracker 10IS is capable of measuring points and contours with high accuracy. With the Integrated Proliner Leapfrog Software, measurements larger than 20 meters can be done very efficiently and accurately.

HARDWARE:
> Dimensions machine (cm): 38 x 32 x 20
> Dimensions touch screen: 10”
> Tripod fitting hole: double
> Internal storage for acc: double
> Water-level sensors: YES
> Motion detection: YES
> Data storage capacity: 8GB (ca. 80.000 DXF files)

RANGE:
> Horizontal envelope: 360º
> Vertical envelope: + 65 to - 35
> Minimum working range: 0 m
> Maximum working range: 20 m diameter

ENVIRONMENTAL:
> Altitude: -700 to 3000 meters
> Humidity: 0 to 98% (non-condensing)
> Operating temperature: - 10 °C to 50 °C

CONNECTIVITY:
> USB
> UTP Network socket
> Bluetooth

SOFTWARE:
> Measuring 2D
> Measuring 3D
> Leapfrog
> Check dimensions
> Modify drawing
> Generate CAD file (DXF)

POWER SUPPLY:
> Cable
> Battery

TYPICAL HORIZONTAL SCALE BAR MEASUREMENT:
> Range: 3M

TYPICAL HORIZONTAL RANGE MEASUREMENT:
> Range: 3M

> Single point repeatability (2 mtrs): 0,040 mm
> SE (3 mtrs): 0,071 mm
