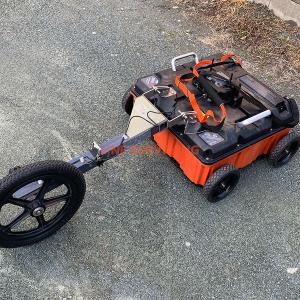

GSSI 200 HS Antenna Tablet SET

200 HS antenna uses GSSI’s patented HyperStacking technology which improves signal to noise performance and increases the antenna depth penetration under ideal soil conditions. The GS System is suited for geophysical, geotechnical, or environmental applications that require high reliability under challenging survey conditions.

$18500

Description

We are selling a demo used GSSI 200 HS Antenna with Panasonic FZ G1 Tough Pad Tablet Complete SET and this 200MHz Digital Antenna gives a depth of penetration up to 21 meters, it is also compatible with SIR 4000 as you can order it separately. This new 200HS antenna serves as the foundation for the GS Series, which is ideal for geophysical, geotechnical, or environmental applications that require high reliability under challenging survey conditions.

GSSI 200 HS Antenna Tablet Set Includes:

  • (1X) 200 HS (200 MHz HyperStacking) Antenna
  • (1X) Panasonic FZ G1 Toughpad Tablet
  • (1X) Model 620 Survey Wheel
  • (1X) 200 HS Wheel Kit
  • (2X) Lithium-ion Battery
  • (1X) HS Module
  • (1X) Dual bay Battery Charger
  • (1X) GS Series Manual
  • (1X) Rugged Ethernet Cable 2 Meter
  • (1X) Transit Case Custom Foam with Pelican Case
  • (1X) Radan 7 Software with the Latest Version
  • Download: GSSI 200 HS Antenna Instruction Manual
  • Download: GSSI GS System 200HS

THE GS SYSTEM ADVANTAGE

Acquire Data Wirelessly:
The HS Module is the communication bridge from the antenna to the controller. With the new WiFi Module, users can use their existing SIR 4000 controller to run the new GS System. The 200 HS improves survey efficiency and in-field use. For multi-person surveys, the WiFi range can reach distances of up to 15 meters (50 feet) within line of sight between the controller and antenna.

HyperStacking Technology & Improved Depth:
The GS System uses GSSI’s proprietary HyperStacking Technology to provide clear, high resolution data of subsurface features. In ideal soil conditions, the 200 HS achieves greater depth penetration, nearly double than that of conventional GPR antenna designs.

Optional Survey Accessories:
Several accessories enhance the ease of use for data collection. These options include a GPS mount and a four-piece wheel kit that can decrease the wear of the antenna on prepared surfaces such as gravel and asphalt. An optional rugged transit case is designed to hold the HS Module, wheel kit, tow strap, batteries, battery charger, and the SIR 4000 WiFi Module or the Panasonic G2.

Panasonic Toughpad G2:
The Panasonic G2 is a rugged Windows 10 tablet that comes with pre-loaded software designed for the GS System. The tablet weighs three pounds (1.4 kg), features an easy to use interface, and has an integrated GIS map mode. The GIS map mode will display the GPR data collected on the left side of the screen and a location map on the right side of the screen. This GIS map mode provides position information using a user-selected GPS and serves as a tool to visualize the survey layout.

Applications:
Water Table Mapping, Bedrock Profiling, Stratigraphy, Bathymetry, Sinkhole Areas, Deeper Utility Detection, Archaeological Investigations

ADVANCED SPECIFICATIONS

1. Data Acquisition:

  • Data Format RADAN (.dzt)
  • Output Data Format 32-bit
  • Scan Interval Up to 200 scans/sec
  • Number Of Samples Per Scan 512, 1024, 2048, 4096, 8192
  • Operating Modes Continuous (time), Survey Wheel (distance triggered), or Point Mode
  • Time Range: 0-16,000 nanoseconds full scale, user-selectable, Gain: manual adjustment from -42 to +126 dB, Number of segments in gain curve is user-selectable from 1 to 8
  • Signal-to-Noise Ratio 171 dB
  • Standard Real-Time Filters Infinite Impulse Response (IIR) - Low and High Pass, Vertical and Horizontal
  • Advanced Real-Time Features Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal, Dynamic Gain Control
  • Automatic Antenna Recognition Automatic recognition of HS Antennas to allow maximum compliant transmit rate
  • Internal GPS Accuracy Autonomous 2.5 m (8.2 ft), SBAS 2.0 m (6.6 ft)
  • External GPS Bluetooth
  • Wireless Range 15 m (50 ft)
  • Input/Output USB, rugged Ethernet, survey wheel and marker input, digital connector

2. Panasonic Toughpad G2:

  • Data Storage 512 GB (SSD)
  • Display 10.1 inch, WUXGA Gloved Multi Touch + Digitizer
  • Memory 16 GB DDR4
  • Processor Intel Core i5-10310U vPro processor, 1.7GHz with Turbo Boost up to 4.4GHz, 6MB cache
  • Graphics Intel UHD Graphics
  • Connectivity Intel Wi-Fi 6 / 4G LTE multi carrier with satellite GPS (Band 14 EM7511)
  • Bluetooth Bluetooth v5.1
  • Ports USB-C 10Gbps (w/PD) / USB-A 5Gbps / 1Gbps Ethernet RJ-45/ 2nd LAN xPAK
  • Battery Life 8 hours with typical use / 1 min hot swap time
  • Weight 1.3 kg (2.9 lbs)
  • Dimensions 280 mm x 188 mm x 28 mm (11.0” x 7.4” 1.1”)
  • Operating System Windows 10 Pro 64-bit

3. 200 HS Antenna:

  • Center Frequency 200 MHz
  • Max Depth 21 m (70 ft)*
  • Battery Life 4 hours
  • Environmental Rating IP65
  • Vibration Mil-STD-810G Method 514.6C Category 9
  • Operating Temperature -10°C to 40°C external (14°F to 104°F)
  • Weight 17.9 kg (39.6 lbs)
  • Dimensions 64.8 x 64.8 x 34.3 cm (25.5 x 25.5 x 13.5 in)
  • Model Number 50200HS

ACCESSORIES RELATED:

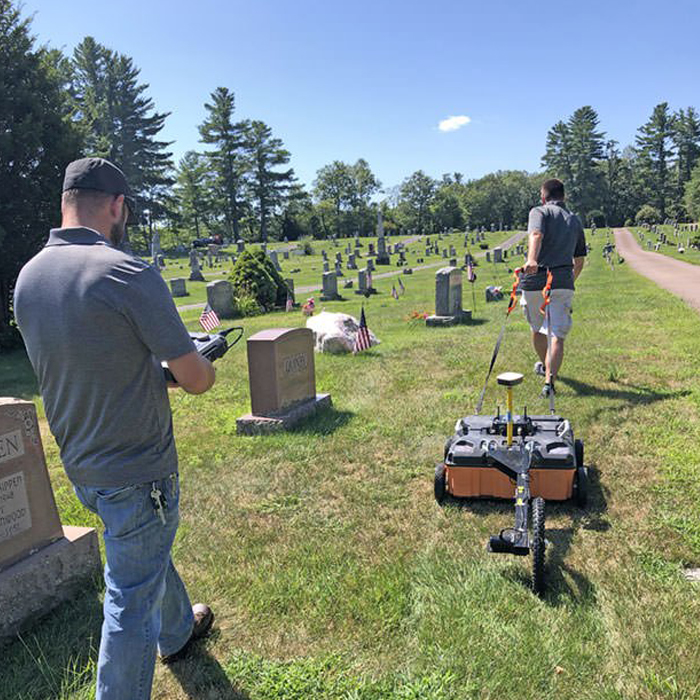

1. GSSI 200 HS Wheel Kit
The wheel kit is compatible for the 200 HS antenna and future GS Series antennas. This kit comes with 4 wheels and proper mounting brackets to attach onto the antenna. The wheel kit will help decrease the wear on the bottom of the antenna and is built for easier travel in high wear data collection areas such as asphalt and concrete.

2. GS Series Transit Case
This custom foam Pelican Case is designed for the GS Series accessories. This transit case holds the HS Module, Panasonic Toughpad Tablet, SIR 4000 WiFi Module, optional wheel kit, tow handle, batteries and battery charger.

3. Model 620 Survey Wheel
The Model 620 survey wheel provides distance encoding and precise linear positioning along a transect. This survey wheel is appropriate for all mid-to-low frequency antennas.

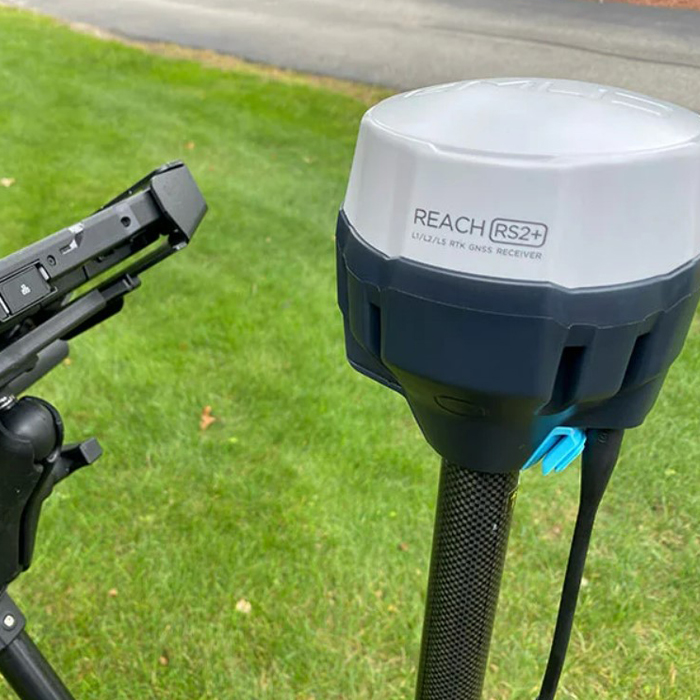

4. EMLID Reach RS2+
The Reach RS2+ is a survey-grade-capable GPS that operates as a single unit or in base/rover mode with two units. The RS2+ is compatible with UtilityScan, UtilityScan Pro, UtilityScan DF/HS, 200 HS antenna, RoadScan, and PaveScan 2.0.
