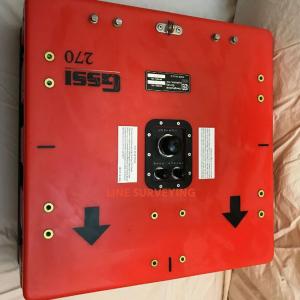

GSSI 270 MHz Shielded Antenna

GSSI 270 MHz Shielded Antenna, Model 50270S, this Shielded Antenna is ideally suited for the detection and mapping of utility pipes, as well as shallow engineering and environmental applications.

$1000

Description

Up to sale with the best offer used GSSI 270 MHz antenna Model 50270S, this GSSI GPR antenna is in excellent condition. This Shielded Antenna is ideally suited for the detection and mapping of utility pipes, as well as shallow engineering and environmental applications.

The Model 5104 antenna has greatly improved resolution performance over previous GSSI mid-frequency antennas, such as the Model 3105 (300MHz). The Model 5104 can be used in continuous, survey wheel or static stacking modes. The Model 5104 has a center frequency of 275 MHz when measured in air. Size of sensor: 17.5 X 17.5 X 7.5 inches (44.5 X 44.5 X 19cm)

SPECIFICATIONS:

  • Center Frequency: 270 MHz
  • Depth Range: 0-6 m (0-18 ft)
  • Weight: 8.6 kg (18.5 lbs)
  • Dimensions: 45x45x17 cm (18x18x6.5 in)
  • Model 50270S
  • Rugged, military-style connectors
  • Long-life replaceable wear skids 200 MHz
  • Coated, sealed electronics
  • Rugged, high-density molded cables
  • Operates from -20°C to 50°C
