GSSI UtilityScan DF Compact Set System

Demo-used condition GSSI UtilityScan DF with 300/800 MHz Dual-Frequency Digital Antenna comes with a Panasonic G1 controller. This complete bundled system sets the new standard in performance, price and increases your efficiency.

$10200

Description

Demo used condition GSSI UtilityScan DF with 300/800 MHz Dual-Frequency Digital Antenna comes with a Panasonic G1 controller. The combination of two frequencies allows users to locate targets at depths of up to 7m (21ft), ideal for utility, archaeological and environmental surveys. This complete bundled system sets the new standard in performance, price and increases your efficiency

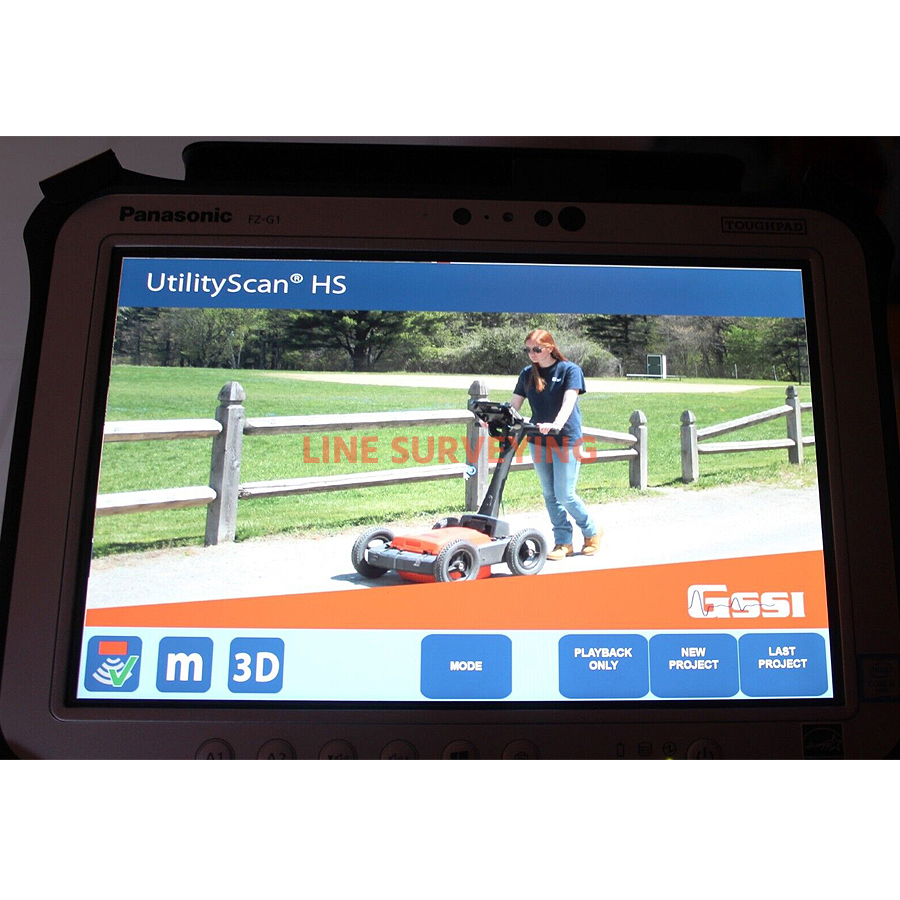

The UtilityScan DF is ideal for locating the position and depth of metallic and non-metallic objects, including service utilities such as gas, communications, sewer lines as well as underground storage tanks and PVC pipes in various soils. The UtilityScan DF is purpose-built and offers an easy-to-use touch screen interface to view shallow and deep targets simultaneously in a single scan. The new dual-frequency 300 MHz and 800 MHz antenna is GSSI’s first digital antenna, allowing the operator to locate targets at depths of up to 5 m/16ft. (in  North America). With an operation life of up to eight hours and survey speed up to 10km/h (6.25mph), data collection is fast and efficient. Advanced software features offer the user several options to view the data;  each channel individually, both channels separated via split-screen, or our patent-pending blend mode. The UtilityScan DF also provides advanced signal processing tools such as attacking, signal floor tracking, and background removal.

UtilityScan DF System Specs:
1. Controler:

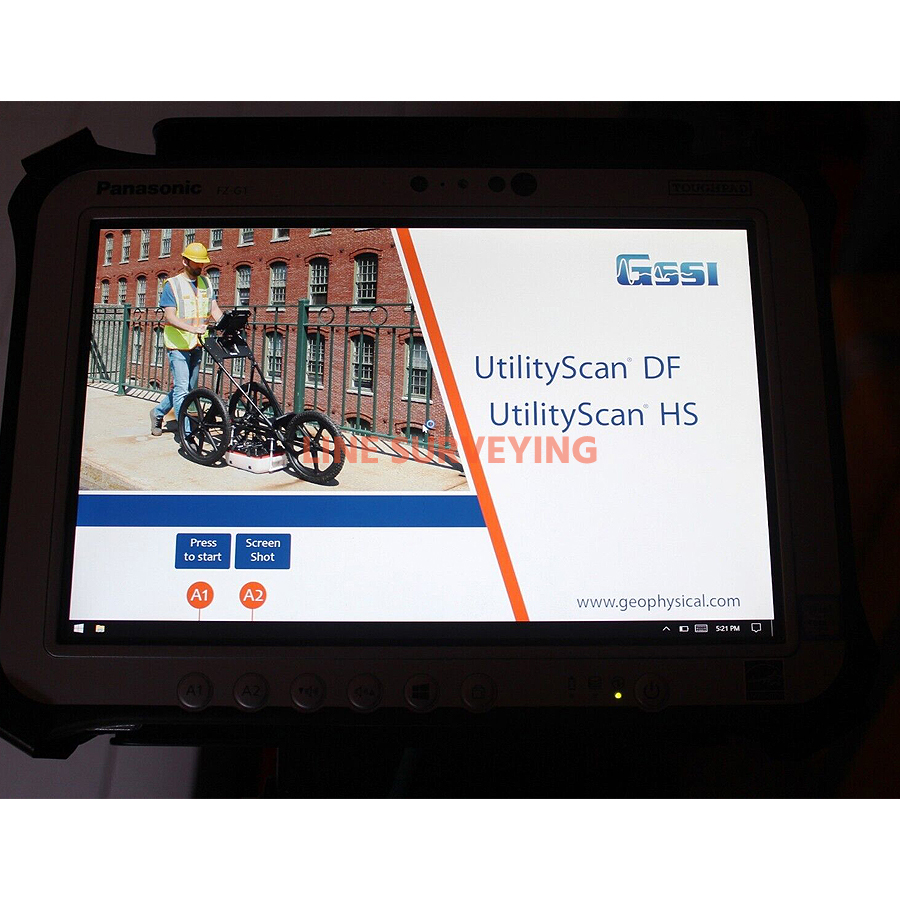

  • System: Panasonic ToughBook H2
  • Data Storage Internal Memory: 128 GB SSD
  • Display: Enhanced 10.1 XGA sunlight-readable LED, 1024 x 768 Dual Touch Display
  • Processor: IntelCore i5-2557M v
  • ProPorts: USB 2.0, Ethernet and Serial
  • Batteries: Hot-swappable Li-Ion battery packs (four total)
  • Operating Temperature-28°C to 60°C (-20°F to 140°F)
  • Environmental: IP65
  • Drop Spec: MIL-STD-810G

2. GSSI System Software:

  • Scan Rate: 150 scans/sec at 512 samples/scan
  • Scan Intervals: 50 or 100 scans/meter (15 or 30 scans/foot)
  • Output Data Resolution: 32-bit
  • Operating Mode: Survey wheel
  • Depth Ranges: Five selectable ranges*
  • System Speed: up to 600 kHz, 200 kHz per channel in North America
  • Data Collection Speed: up to 10 km/h (6.25 mph)
  • Gain: Manual or automatic, 1-8 gain points (-42 to + 126 dB)
  • Real-time Filters: Stacking, Background Removal
  • Advanced Real-time Filter: Signal floor tracking

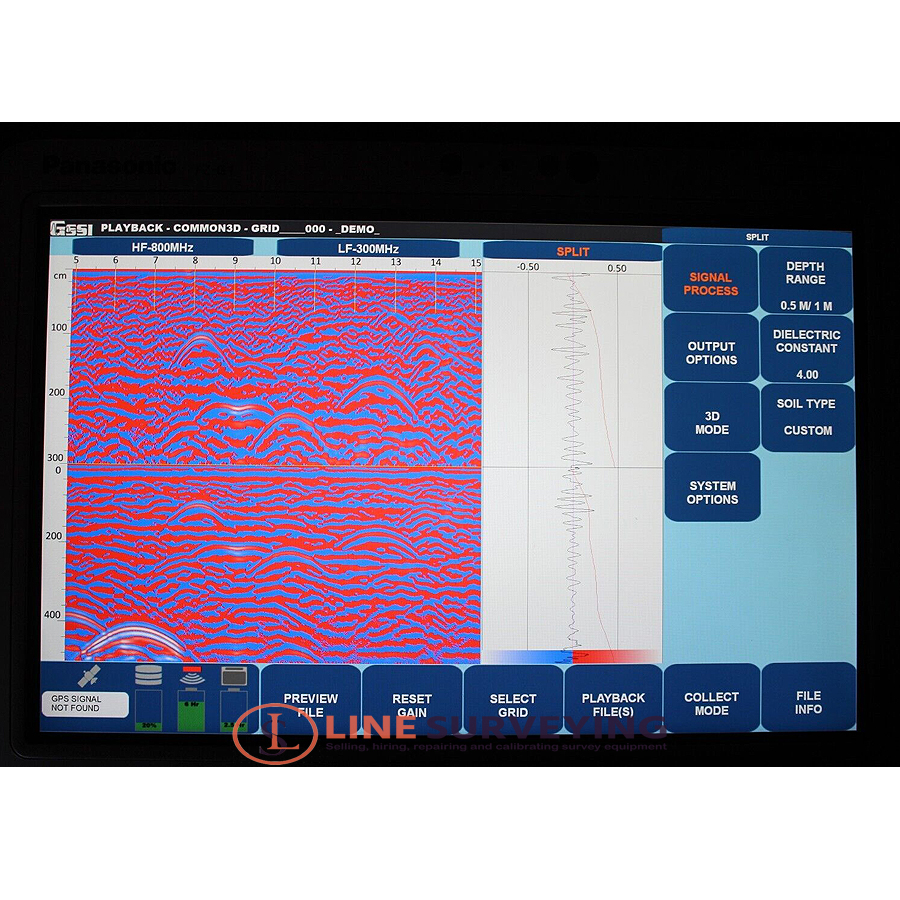

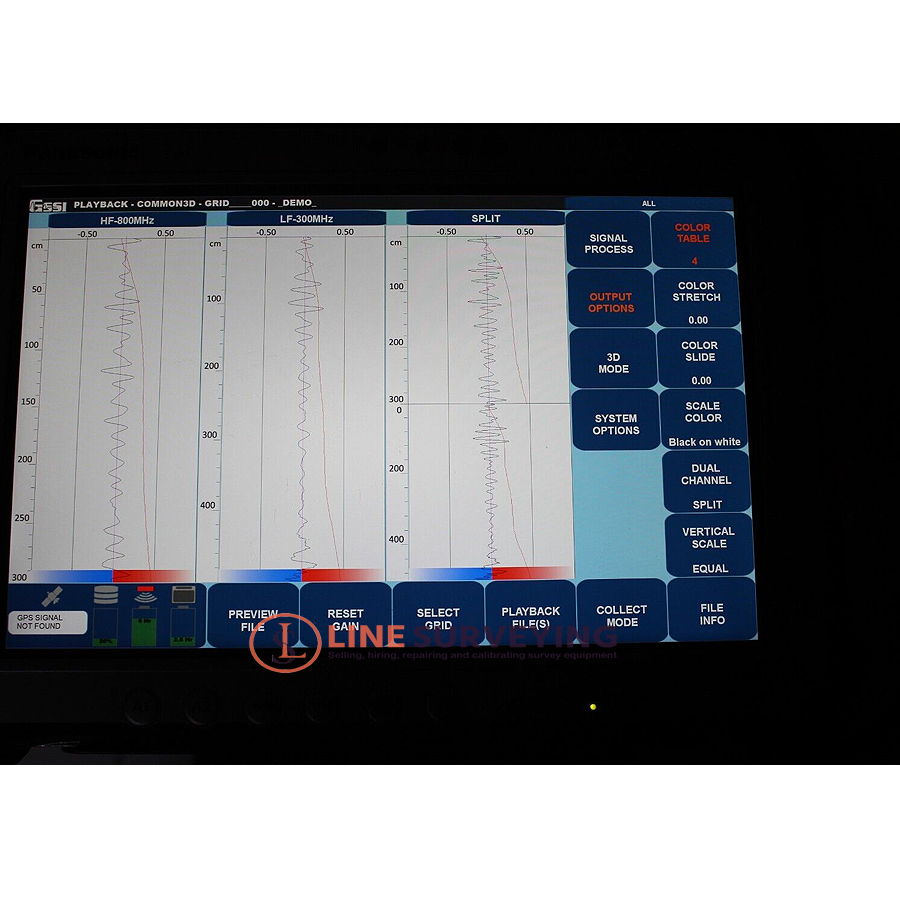

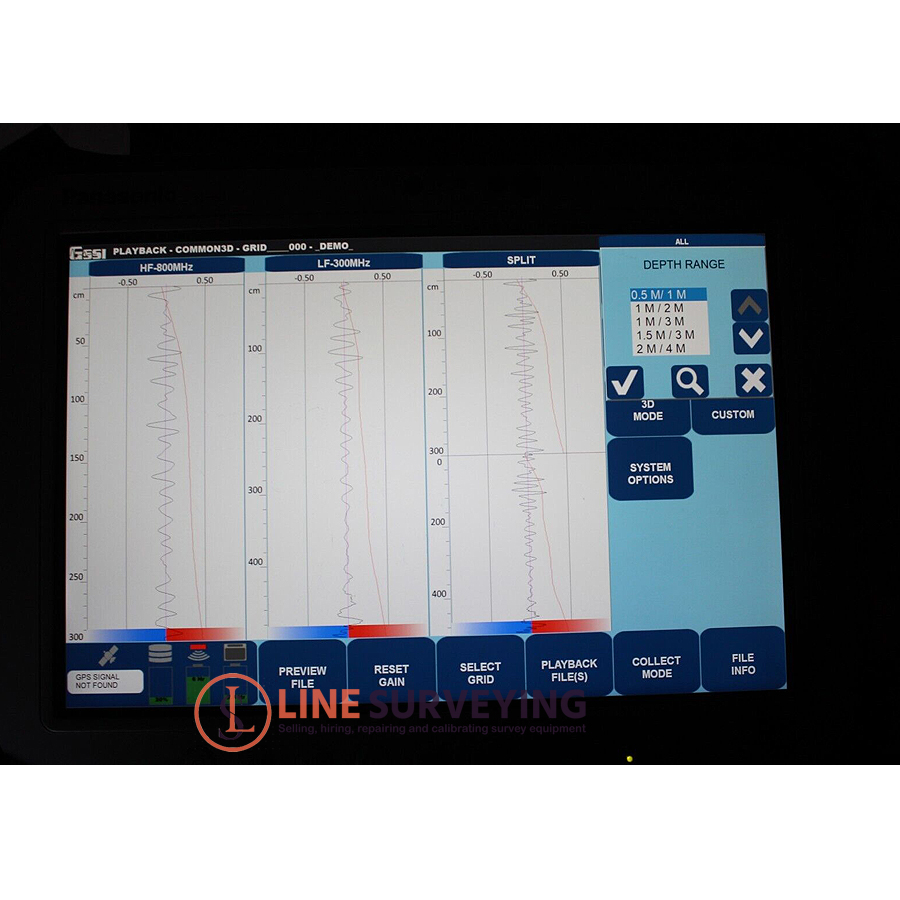

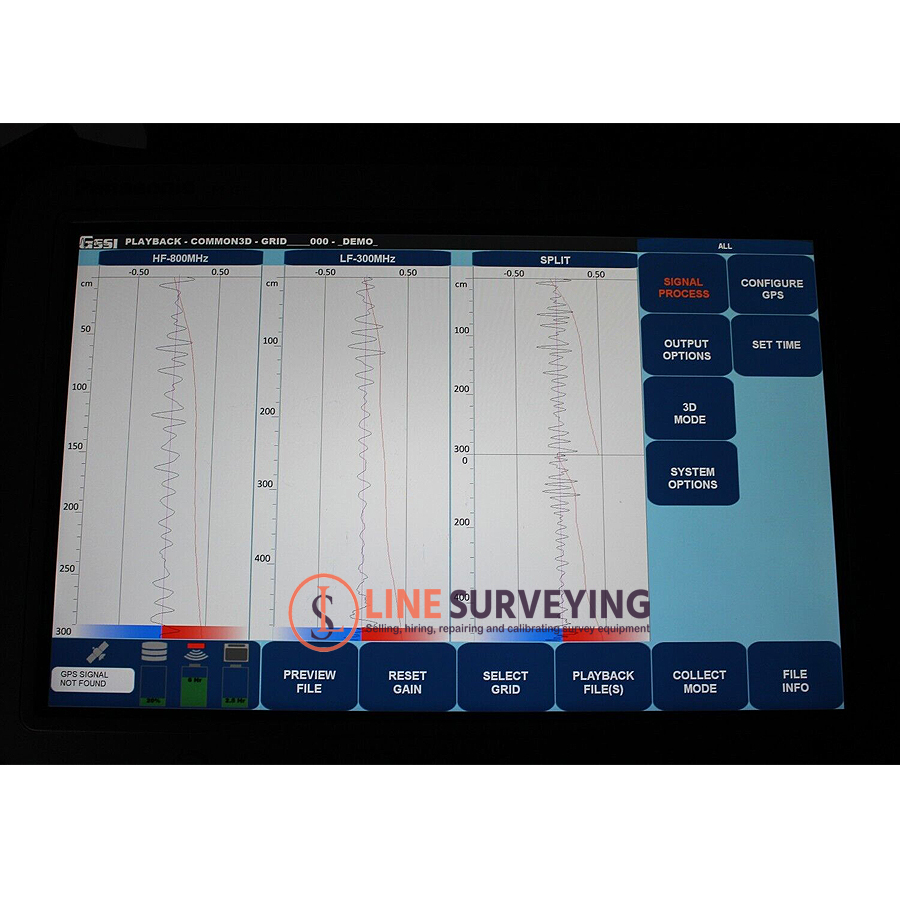

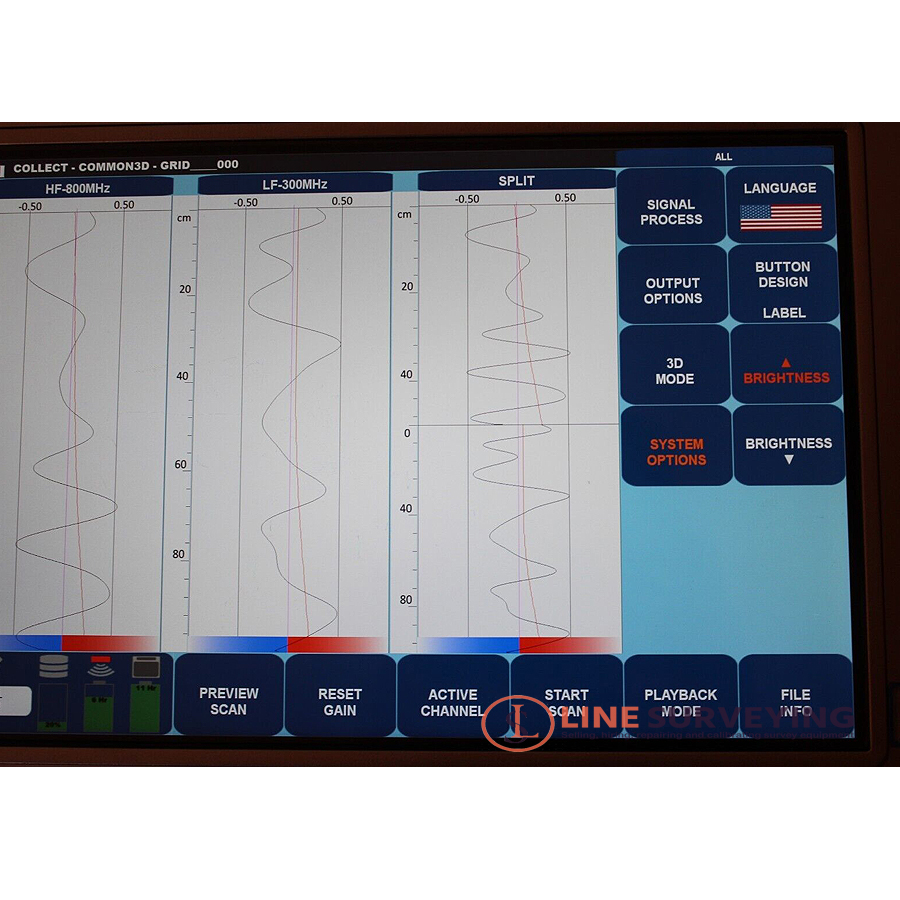

  • Display Mode: *Linescan Model: high-frequency data only or low-frequency data only displayed *Split Mode: high and low-frequency data displayed in a split-screen view *Blend Mode: high and low-frequency data combined in a single view
  • Data Format: RADAN (.dzt)

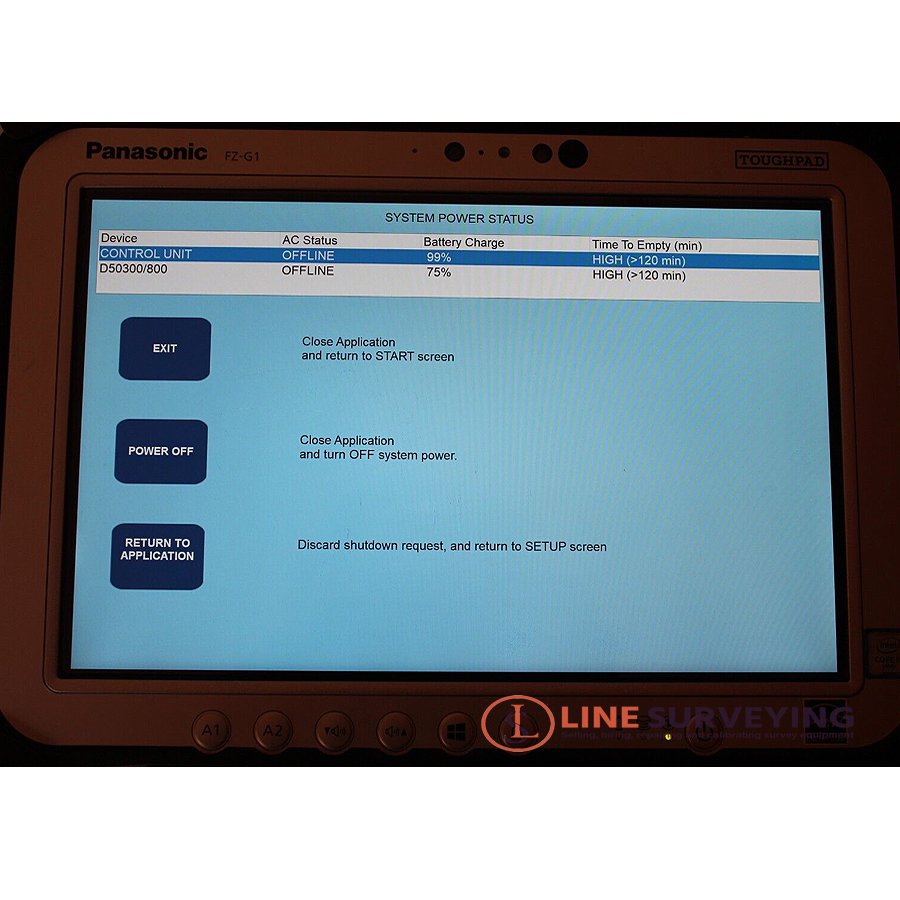

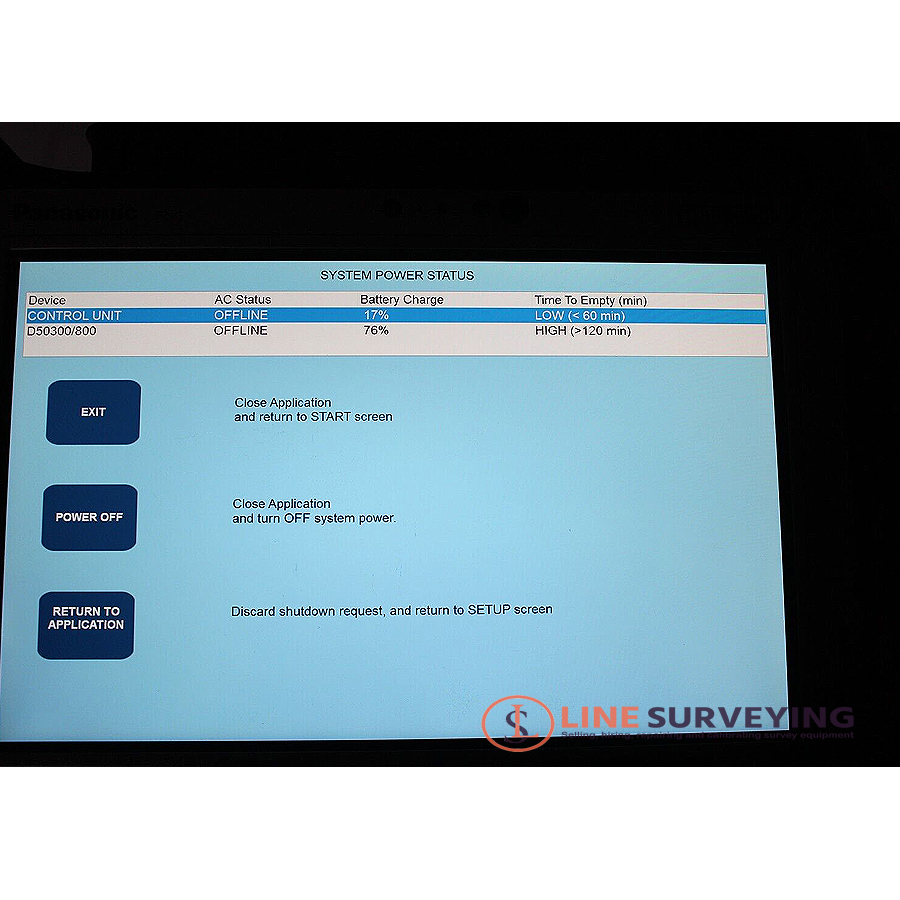

  • Diagnostic: GPS and quality indicator status, battery, hard disk capacity

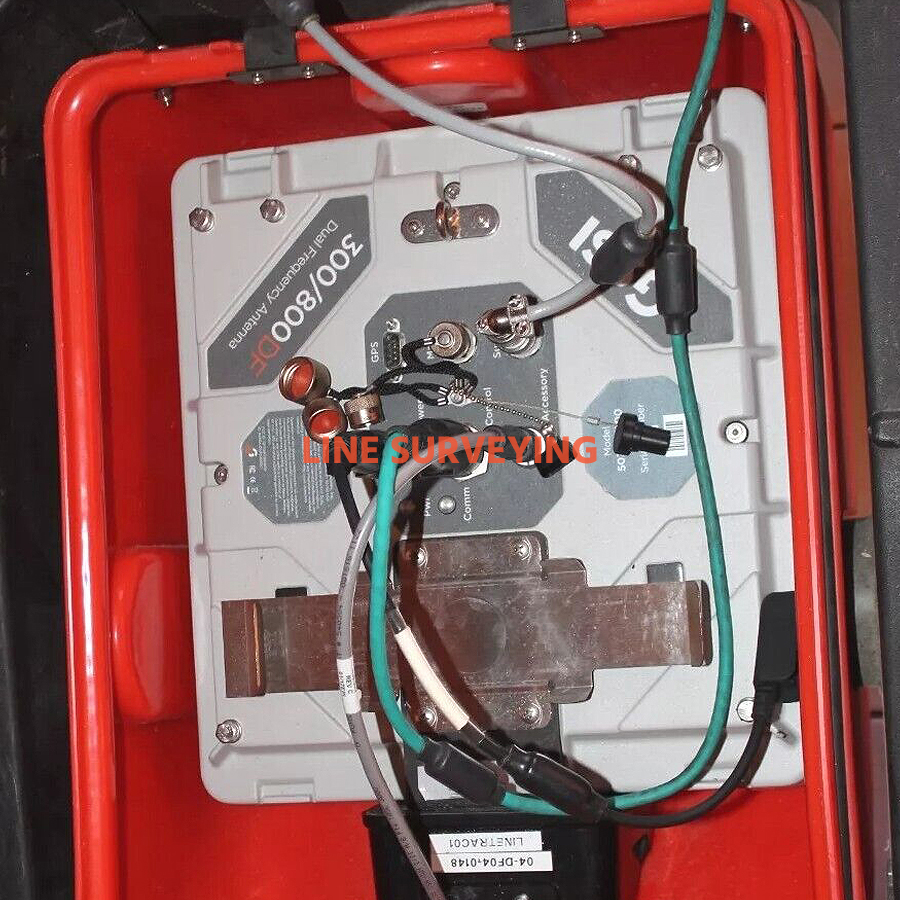

3. Digital Dual-Frequency Smart Antenna:

  • Number of Hardware Channels: 2 (two)
  • Frequencies: 300 and 800 MHz
  • Typical Range: 4 m / 12 ft
  • Minimum/Maximum Range: .5 m - 5 m (20 in - 16 ft)

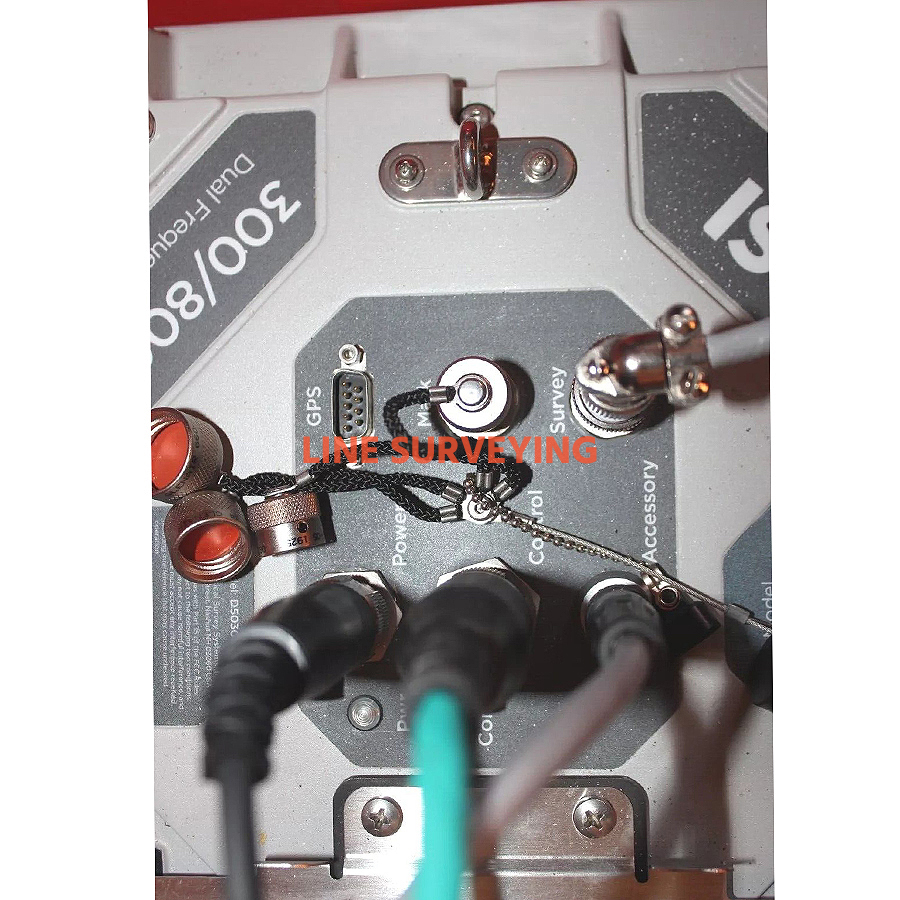

  • Connectors: Digital control, power, survey wheel, marker, serial RS232, accessory connector
  • GPS: Data stored internally
  • Operating Temperature: -10°C to 50°C (14°F to 122°F)
  • Weight: 5 kg (12 lbs)
  • Dimensions: 33.5 x 31 x 15 cm (13.2 x 12.2 x 5.9 in)
  • Environmental: IP65

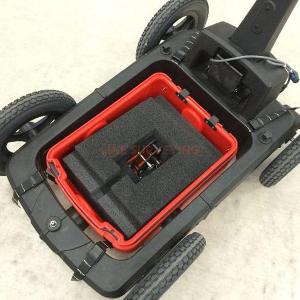

4. Cart Model 652:

  • 4 Wheel Compact Survey Cart
  • Internal, integrated Survey Wheel Encoder
  • Removable, 12-inch wheels
  • Compact, weather-resistant design
  • Antenna centerline to the front of the cart: 38.2 cm (15 in)
  • Dimensions: 61.7 x 100 x 102.4 cm (24.3 x 39.4 x 40.3 inches)
  • Weight: 21.7  kg (48 lbs)
  • Total System Weight: 29 kg (66 lbs)

5. Downloads:

Includes:

  • (1X) GSSI Dual-frequency antenna (300 and 800 MHz)

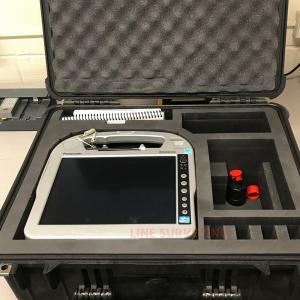

  • (1X) Customized Panasonic ToughBook H2 control unit
  • (1X) Rugged terrain survey cart with encoder wheel
  • (1X) 2.0-meter control cable

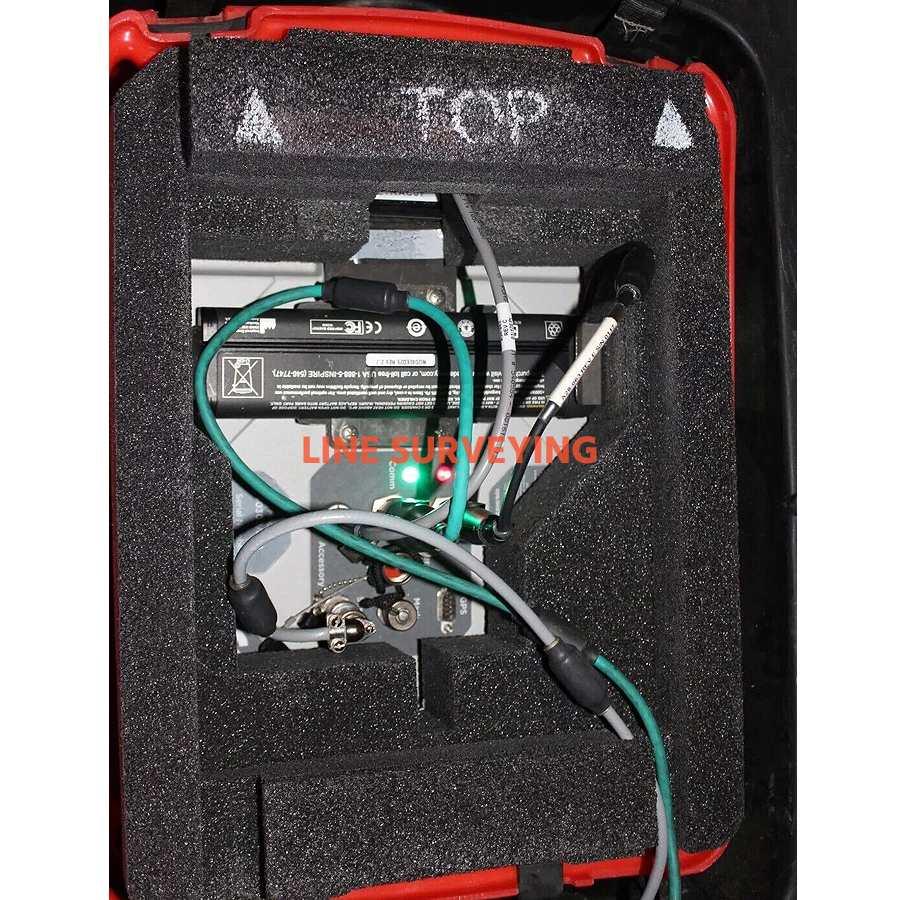

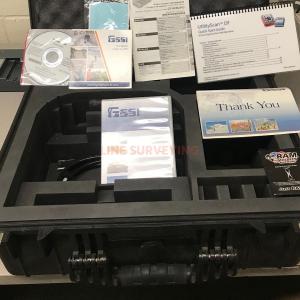

  • (1X) Transit case for the control unit
  • (4X) Batteries and four-bay battery charger: Control Unit
  • (4X) Battery charger: Control Unit
  • (2X) Batteries and two-bay battery charger: Antenna
  • (2X) Bay battery charger: Antenna
  • (1X) User manual and RADAN 7 Software

Data Examples:

  • BLEND MODE: Data illustrates several metallic and non-metallic targets at various depths in the blend mode. Green shaded area represents estimated signal floor. Red/Blue dotted line identifies the soil velocity calculation tool.

  • 3D MODE: Data illustrates metallic targets at depths of 1,2 and 3 feet collected at GSSI’s utility test pit using 3D Mode
