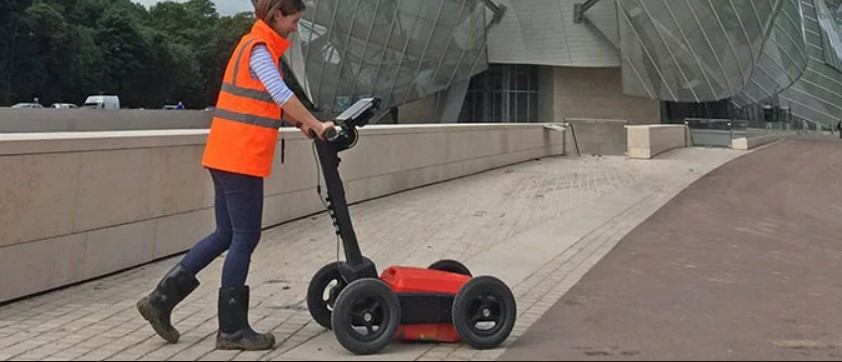

Up to sale Excellent and very light condition demo used 2020 GSSI Utility Scan Pro Ground Penetrating Radar with 350 HS Antenna, SIR4000 control unit and LineTrac utility detection complete set. Data acquisition system with approx used 40 hours also includes the LineTrac utility detection accessory and comes with RADAN 7 Software. With Utility Scan Pro, users can quickly identify and mark the position and depth of metallic and non-metallic objects; including utilities such as gas, communications, and sewer lines as well as underground storage tanks and PVC pipes.
What's Includes:
Based on the SIR 4000 controller, the UtilityScan Pro provides the GPR professional with solutions to any underground locating situation. Software Radan 7 complete (option: 3D module):

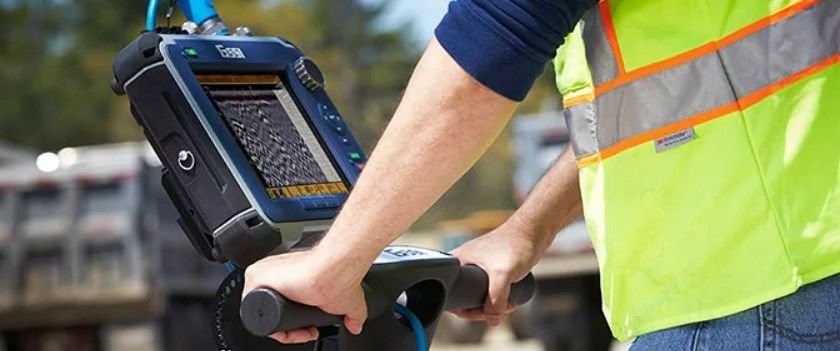

Fully integrated, the SIR 4000 provides a simple user interface, plug-and-play GPS integration, and Wi-Fi-enabled data transfer functionality

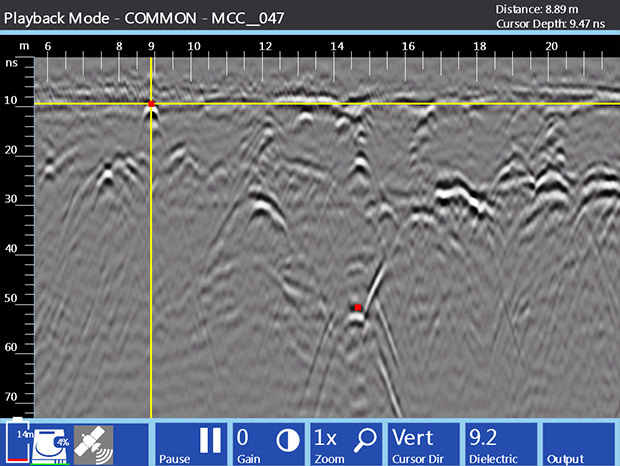

350 HyperStacking Antenna Data Example:
Data illustrates various utilities and trenching efforts at a historic golf course. This data was collected with UtilityScan Pro with 350 HS antenna.
GSSI UTILITYSCAN PRO SPECS:
| SYSTEM | SIR 4000 |
| ANTENNAS | Compatible with all GSSI antennas |
| NUMBER OF CHANNELS | Records data from 1 single-frequency antenna or 1 dual-frequency antenna |
| DATA STORAGE |
32 GB Flash, 1 GB RAM |

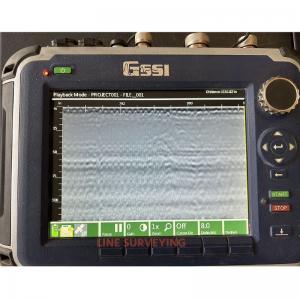

| DISPLAY | Enhanced 10.4” LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32-bit color |
| GPS |
Data logged internally |
| DISPLAY MODES | Linescan, Linescan plus O-scope, Wiggle trace Full 3D, 256 color bins are used to represent the amplitude and polarity of the signal |
| ENVIRONMENTAL RATING | IP65 |
| DATA ACQUISITION: | |
| DATA FORMAT | RADAN (dzt) |
| OUTPUT DATA FORMAT | 32-bit |
| SCAN INTERVAL | User-selectable, up to 4000 scans/sec |
| NUMBER OF SAMPLES PER SCAN | 256, 512, 1024, 2048, 4096, 8192, 16384 |
| OPERATING MODES | Continuous (time) or survey wheel (distance triggered) or point mode |
| TIME RANGE | 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8 |
| STANDARD REAL-TIME FILTERS |
|
| ADVANCED REAL-TIME FILTERS | Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal |
| AUTOMATIC SYSTEM SETUPS | Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations |
| AUTOMATIC ANTENNA RECOGNITION | Automatic recognition of Smart Antennas to allow maximum compliant transmit rate |
| LANGUAGES | English, Chinese, Japanese, French |
| OPERATING: | |
| OPERATING TEMPERATURE | -20°C to 40°C external (-4°F to 104°F) |
| BATTERY | Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness) |
| TRANSMIT RATE | Up to 800 KHz (International) US/Canada and CE rates depend on antenna model |
| INPUT/OUTPUT: | |

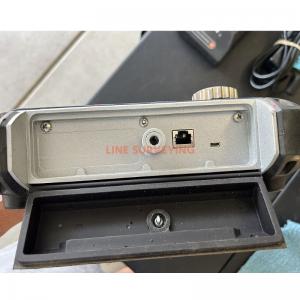

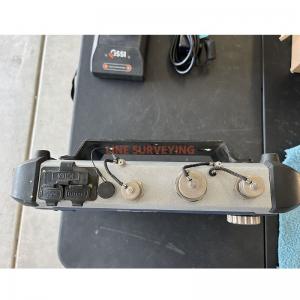

| AVAILABLE PORTS |
Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB |
| ETHERNET | RJ45 100BT Ethernet |
| USB HOST | USB host with external keyboard support, USB flash drive support and USB HUB support |
| MECHANICAL: | |
| DIMENSIONS | 14x10x2.75 in (36x25x7 cm) |
| WEIGHT | 10 lbs (4.53 kg) including battery |
| RELATIVE HUMIDITY | <95% non-condensing |
| STORAGE TEMPERATURE | -40°C to 60°C (-40°F to 140°F) |
| APPLICATIONS: |
|
