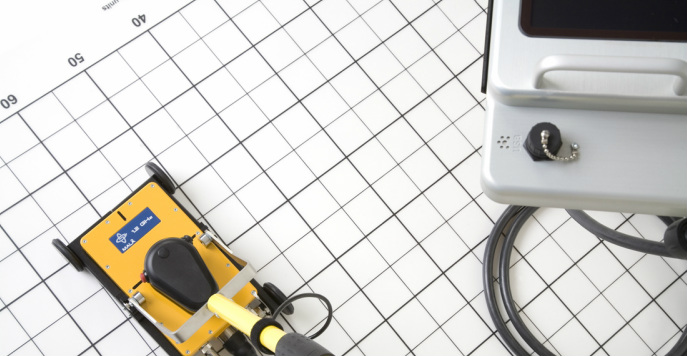

MALA CX12 Concrete Scanner

The CX12 GPR Concrete Scanner is a high frequency system with antennas in 1.2, 1.6 and 2.3 GHz range. An 50/60Hz power sensor is included to avoid live/loaded power cables in the slab.Cut and core concrete with confidence when it has been cleared using MALA CX concrete scanner.

$3500

Description

Up for sale excellent condition demo used MALA Concrete CX12 Scanning with 1600mhz EM Ground Penetrating Radar KIT includes 3D PC processing software.  The CX12 can be equipped with a complimentary 50/60Hz EM sensor for detecting live mains cables.  MALA CX Concrete Imaging System is an easy-to-use, Ground Penetrating Radar (GPR) system designed for the non-destructive investigation and imaging of concrete and other structure.

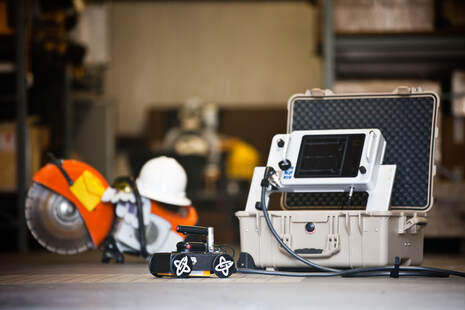

The MALÅ CX Concrete Imaging System is an easy to use, Ground Penetrating Radar (GPR) system designed for the non-destructive investigation and imaging of concrete and other structure. Construction professionals involved in the cutting, coring or drilling of concrete structure require a safe and reliable means of inspecting work areas to locate and identify hidden features that could cause damage to machinery, or pose a danger to the operator or the structure itself during these activities.

The MALÅ CX system allows you to scan concrete structure simply and safely in three different measurement modes; 2D-, 3D Grid- and Object Mapper- projects and present data clearly for real-time and in-the-box data acquisition, display and analysis. It is a quicker, safer and more cost effective option than competing systems or traditional radiographic testing methods. With its simple user interface and large number of software features, the MALÅ CX System offers a unique powerful choice for your high frequency GPR investigations.

APPLICATIONS:
The MALÅ CX system is the tool of choice for those who need to quickly and easily investigate areas prior to cutting, coring or drilling. Other applications include:

  • Concrete / Structure inspection
  • Measure depth of cover or slab thickness
  • Measure layer thickness
  • Locate and map reinforcing support structure
  • Locate non-metallic features, i.e. heating / water pipes
  • Quality assessment & control
  • Void detection

FEATURES:
The product’s simple yet ergonomic and field rugged design, intuitive user interface and clear display is testament to its success and it remains as the number one choice in its field.

  • Minimal set-up for fast start-up
  • LINUX operating system for fast and reliable processing
  • Intuitive project driven GUI for enhanced work flow
  • Stand-alone Windows processing software
  • Project modes for 2D, 3D Grid and Obejct Mapper
  • In-the-box processing to clear jobs on site
  • Supports EM (50/60Hz) functionality
  • Hyperbola fitting tool for velocity calibrations
  • Full remote capabilities with the buttons on the antenna

SYSTEM CONFIGURATION:

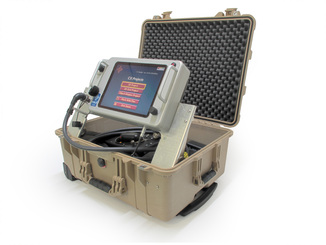

The MALÅ CX system comes as standard in a portable field rugged case, but can also be used in conjunction with an optional shoulder harness for greater portability and flexibility of use, depending on the application and user requirements. The MALÅ CX system was the World’s first to combine GPR with the more common Electro-Magnetic (EM) technology by way of a fully integrated 50/60Hz sensor. This combination allows the detection of both metallic and non
metallic objects and features, but also aids in the detection and location of metallic conductors energized with 50/60 Hz energy within the structure under investigation; thereby offering an additional element of safety to the system

TECHNICAL SPECIFICATIONS:

  • Power supply: External 12V or Li-Ion 12V/12Ah battery
  • Operating time: 6h with battery pack
  • Operating temp: -20° to +50°C or 0° to 120 °F
  • Environmental: IP65
  • Display: 10.4” Color TFT Transmissive LCD
  • Dimensions: 56 x 46 x 26 cm / 22” x 18” x 10” (in-the-box)
  • Weight: 19.5 kg / 42.9 lbs (in-the-box, including antenna)
  • Antennas: The MALÅ CX system fully supports the MALÅ High Frequency (HF) Antenna range allowing the user to choose the best antenna for their given application and obtain unsurpassed accuracy and data clarity.
  • Download MALA-CX12-Concrete-Scanner

INCLUDES:

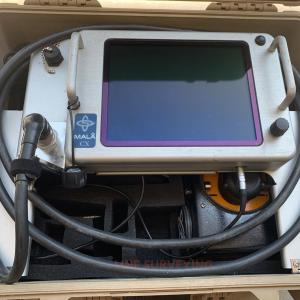

  • (1X) MALA CX12 with EM Antenna

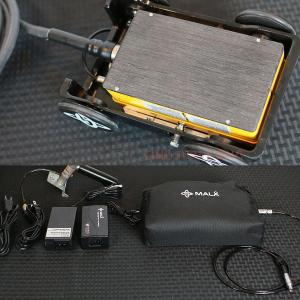

  • (1X) MALA 1.6 GHz Shielded Antenna
  • (1X) EM with a 4-meter Cable
  • (2X) Antenna mini-carts for 1.6 GHz-EM
  • (4X) Batteries
  • (1X) Monitor battery power bag
  • (1X) Battery charger
  • (1X) AC monitor power supply
  • (1X) Monitor Shoulder Harness
  • (1X) USB Data Cable and SD Card
  • (1X) 3D Vision Software for Windows
  • (1X) Software HASP
  • (1X) Pelican carrying case

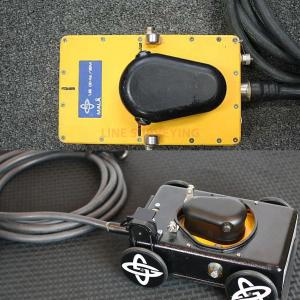

MALA 1.6GHz HF Antenna: Dimensions : 16 x 9 x 11 cm ; Weight: 0.6 kg (1.2 kg with 50/60 Hz sensor option)

Accessories are available with additional cost for the MALA HF Antennas, including:

  • MALA HF Cart
  • Single measuring wheel
  • Extension handle/ cables
  • Skid/wear plates
