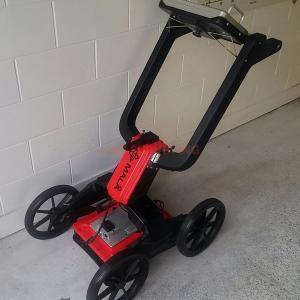

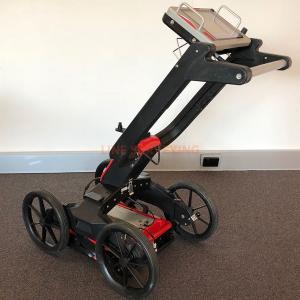

MALA Easy Locator (EL) Pro

Description

Up for sale MALA Easy Locator (EL) Pro GPR, the Scanner is used condition and set up is in MINT condition - Manufactured 2019 comes to complete Bundled Set. MALA Easy Locators offer a cost-effective, end-to-end solution for utility mapping. Rugged, foldable GPR-systems with exceptional data collection capabilities, offering results with-in minutes, directly onsite. Buried utilities are assets that need to be protected. It is essential to obtain precise and reliable information about the location and depth of buried infrastructure, such as pipes, cables, and other utilities. The MALA EasyLocator (EL) was the first GPR-system specifically designed for utility location, revolutionizing the industry by offering an easy-to-use, cost-effective, end-to-end system for utility location. MALA ELs are non-destructive and able to gather subsurface data for both metallic and non-metallic utilities. Based on MALA HDR real-time sampling technology, the system offers higher data resolution and significantly better depth of penetration compared to traditional GPR technology. MALA HDR technology reduces random noise; providing an unparalleled level of data quality. MALA EasyLocators are protected in a robust aluminum casing, built to last in harsh conditions and rough transportation. To simplify logistics between sites and minimize start-up time, the systems are foldable and designed to fit in the trunk of a car. The user-interface is tailored for utility location and is easy-to-use with simple navigation controlled by a single turn-and-push navigator button.

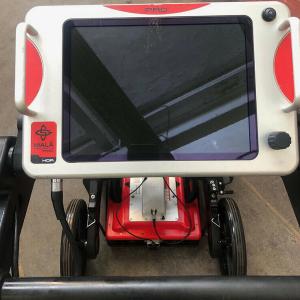

MALA EL Pro Controller:

• Processor: 1.6 GHz Intel Atom
• Display: 1024 x 768 mm
• Memory: 8 GB compact Flash memory
• Data output resolution: 32 bit
• Comms: Ethernet, USB 3.0, RS232 (serial)
• GPS: Integrated support for built-in GPS, or external GPS via USB/serial port
• Power supply: Any external 10 -15 V DC source.
• Internal Charger: The unit can also be charged from any external 12 - 15 V DC source.
• Power consumption: 1.3 – 2.0 A
• Operating time: 8 – 14 h  (depending on the number of batteries)
• Dimensions: 430 x 360 x 180 mm, including handles
• Weight: 2.5 kg
• Operating temp: - 20° to + 50° C or 0° to 120° F
• Environmental: IP 65

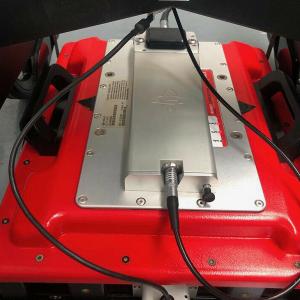

MALA EL Pro Antenna:

• Technology: MALA Semi-Real-Time patent pending
• Antenna center freq: 450 MHz
• SNR: > 101 dB
• Significant/useful number of bits: > 16 bit
• Scans/second: > 770, time window 300 ns
• Survey speed: 275 [km/h] point distance 10 cm
• Time window: 300 ns
• Operating time: 5 h
• Bandwidth: > 120%, fractional, -10 dB
• Positioning: Built-in DGPS, external GPS, wheel encoder
• Power supply: Interchangeable 12 V Li-Ion batt. or ext. 12 V DC source
• Power consumption: 1.3 A
• Acq. Mode: Wheel, time or manual
• Dimensions: 430 x 360 x 180 mm (L x W x H)
• Weight: 5.5 kg
• Operating temp: - 20° to + 50°C or 0° to 120° F
• Environmental: IP 65

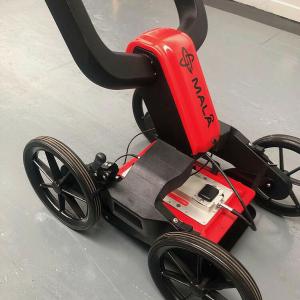

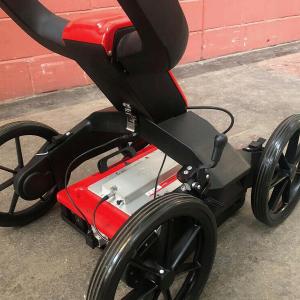

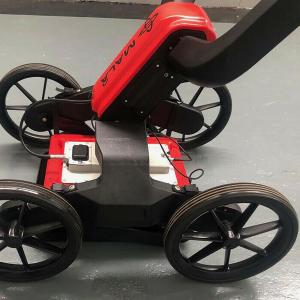

MALA EL Pro Cart:

• Dimensions (folded for transport): 820 x 560 x 400 (L x W x H)
• Dimensions (when in use): 1100 x 560 x 1000 (L x W x H)
• Weight: 13 kg
• Battery bay/compartment: Fits four 12 V Li-Ion

ObjectMapper Software includes:
The beauty of MALA ObjectMapper is that power and efficiency are not compromised by its simplicity. It is a software tool built and optimized for a single purpose, to help to interpret radar data and simplifying the process to find buried utilities. The Easy Locator Pro Controller is capable of creating an ObjectMapper project directly in the field and then guides the user to complete the survey. The whole project is then imported into the MALA ObjectMapper software for processing, interpretation, and reporting.

The MALA ObjectMapper concept is optimized to compress the data-to-delivery time and advances saving from fast data acquisition and project generation by the MALA Easy Locator Pro, through rapid data interpretation and onto the one-click output of deliverables in popular formats such as DXF and KMZ (through MALA GPS Mapper). MALA Object Mapper supports the high-resolution 32-bit data format (*.rd7) and is a MALA proprietary software created by and for utility locating professionals.

Includes:

• (1X) MALA EL Pro HDR
• (1X) MALA EL Pro Controller
• (1X) 450MHz HDR Antenna
• (1X) Battery Adapter for HDR Shielded Antennas
• (1X) GPS Tower for Shielded Antennas HDR
• (2X) Li-Ion battery pack 12V
• (1X) Cardboard box battery
• (1X) Etikett lithium DGR 120×110mm
• (1X) Bitsvinge med Torx T30 (40mm stick)
• (1X) M6×10 MKFLT
• (2X) Li-Ion Battery Charger 12.6V
• (1X) Pro Cart
• (1X) Easy Locator HDR Screen Capture & DGPS option
• (1X) Object Mapper Processing Software for Windows
• (1X) GPS Mapper Software
• (1X) MALA USB Software and Manuals Package
• Download MALA-EL-Pro-Tech-GPR-System
• Download MALA-Easy-Locator-(EL)-Pro-Ground-Penetrating-Radar

Rough Terrain Cart (Accessories)
For all GPR surveys conducted on rough surfaces. The MALÅ Easy Locator WideRange antenna and monitor can be mounted in the MALÅ Rough Terrain Cart (RTC), increasing the operational capabilities in more rugged terrain. The cart is available in two sizes, to accommodate the choice of antenna.
