Mala Easy Locator HDR Ground Penetrating Radar

MALÅ Easy Locator HDR, is faster, even easier to use, more powerful and delivers cleaner data with more detail at up to 20% better penetration depth to comparable systems.

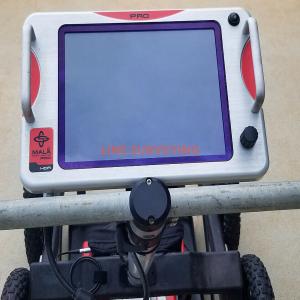

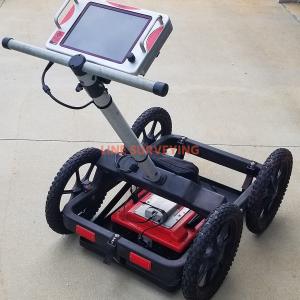

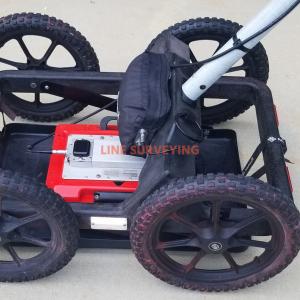

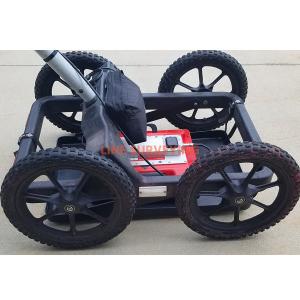

We are selling excellent condition Used MALA 450 MHz Easy Locator HDR Ground Penetrating Radar complete KIT for sale, Excellent condition and ready to work with 450 MHz can see up to 15 foot in depth in ideal soil. This unit is loaded with GPS, 3D capability and image capture. It has parabolic fitting to calculate dielectric constant for better target depth capability.

The MALÅ Easy Locator was the first ground penetrating radar specifically designed for only one application area, to immediately at site, and with an understandable and dedicated interface, the MALÅ Easy Locator made ground penetrating radar measurements easier, more The MALÅ Easy Locator HDR’s hinged shaft simplifies logistics between sites and minimizes startup time Built-in DGPS The MALÅ Easy Locator HDR fits also nicely into the MALÅ Rough Terrain Cart (RTC) option. (patents pending) accessible and understandable. The MALÅ Easy Locator HDR is the new improved, soon-to-be, market leader for ground penetrating radar utility detection

The MALÅ Easy Locator HDR is an all-in-one unit with a hinged shaft, enabling the entire unit to fit in the back of a standard station wagon for transportation between sites. The (HDR) high dynamic range antenna, optimized for utility detection, are ruggedized, sealed and shielded. The Easy Locator monitor has excellent readability, even in direct sunlight, and the keyboardless interface is controlled by a single turn-and-push dial. All sensitive parts of the system are carefully protected in a robust aluminum casing, weather protected and built to last through harsh environments and rough transports. The MALÅ Easy Locator is built to deliver at site and the dedicated built-in software is tailored for utility detection and include all necessary components from start to finish. MALÅ’s goal when designing and building the system was to make ground penetrating radar simpler, cost-effective and more accessible to the utility market, hence the name, The MALÅ Easy Locator HDR.

Technical Specification:

  • POWER SUPPLY: Li-Ion 12V/8.7Ah battery
  • CONTINUOUS OPERATING TIME: 14h (4 bat. Packs)
  • OPERATING TEMP: -20° to +50 °C or 0° to 120 °F
  • MAX OPERATING SPEED: >25 km/h (>15 mph)
  • MAX SCAN RATE: >1024 scans/sec. @ 700 samples

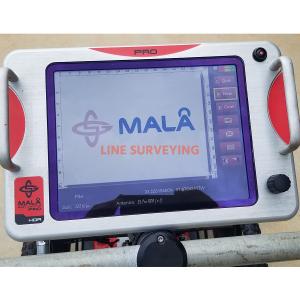

  • DISPLAY: 10.4” Color TFT, sunlight-readable, LCD
  • DIM. WITH WHEELS: 67x47x19cm / 26”x19” x7” (excluding handle)
  • TOTAL SYSTEM WEIGHT: 21.5 kg / 47 lb
  • ANTENNA: High Dynamic Range 450MHz Antenna
  • DGPS (SBAS): Built-in. External devices are also supported


  • Outstanding data quality for utility mapping
  • Super heavy-duty rough terrain cart
  • Fast data acquisition for utility mapping
  • Built-in DGPS for improved positioning
  • Data export and post-processing software
  • Exceptional detection capabilities
  • 450MHZ Antenna
  • Download Mala-Easy-Locator-HDR-Ground-Penetrating-Radar
