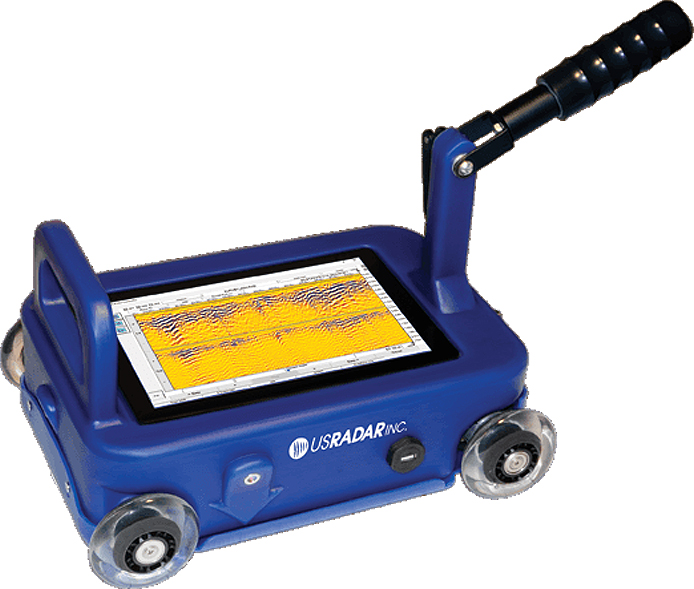

Quantum Mini Concrete Scanner 1000 MHZ Antenna

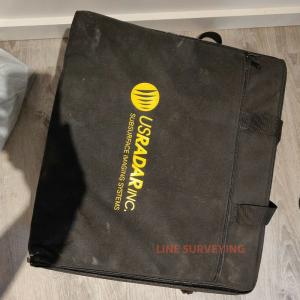

Up for sale used US Radar Quantum Mini concrete scanner with 1000 MHZ antenna complete KIT, manufactured 2021 with 2 Years warranty Parts and Labor, mint condition and ready to work in the fields.

This set for analyzing structures as deep as 72 inches (1.8 m), as well as a 2000 MHz antenna for high-resolution fine analysis of short-range targets. The Quantum Mini concrete scanner features a 1000 MHZ antenna for analyzing structures as deep as 72 inches (1.8 m), as well as a 2000 MHz antenna for high-resolution fine analysis of short-range targets.

With a 1000 MHz antenna for analyzing structures as deep as 1.8m and a 2000MHz antenna for high-resolution fine analysis of short-range targets, you can expect superior imaging packed into a portable and easy-to-operate system.

Featured Hardware Technologies:

• Stepped Pulse Multi-Frequency GPR
• Smart Gain 2
• Adjustable handle
• Laser alignment
• Self-Calibrating

Featured Software Technologies:

• Smart Stack
• Street Smart Real-Time Processing
• Auto Config
• Depth Calibration

Radar Controller Computer:

• Processor: Multi-core Intel Atom
• Radar interface: proprietary military connector
• 32 GB Solid State Hard Drive
• 10.1 Inch daylight readable LCD Color display
• Power Supply: 10.5-18VDC 25W
• Operating system: Windows 7 Embedded

Software:

• Microsoft Windows
• US Radar Control Software, including:
• System Configuration
• A Scan Display (Oscilloscope Mode)
• B Scan Display (Cross Sectional View)
• C Scan Display (3D)
• Real Time Signal Processing
• Data Storage and Playback
• Optional GPS Integration

System Scan Modes:

• Trigger Modes: Free run, timed interval, shaft encoder, GPS, manual
• Maximum Sampling Rate: 550,000,000 samples per second
• Hardware Time Varying Gain: 45dB
• Software Time Varying Gain: 90dB
• Software Flat Gain: 60dB

System Environmental Specifications:

• Temperature: -11 deg. To 50 deg. C
• Moisture and dust resistance: IP 67

Radar Hardware Specifications:

• Sampling Interval: 10 ps-6.4 NS
• Time Range Adjustment Interval: 10 PS
• Pulse Repetition Frequency: 0.1-4 MHz-adjustable
• Samples per Trace: 2-8192, Adjustable
• Effective Bandwidth (typ.): >4 GHz
• Stacking: Automatic
• Transmitter: Stepped Ultra Wideband Dual Frequency
• Download Datasheet Quantum-Mini-concrete-scanner
