Leica Absolute Tracker AT500

The Leica Absolute Tracker AT500 benefits from a fully battery-powered, integrated-controller design that makes it the most portable and easy to setup member of the Absolute Tracker range. Operational simplicity plays a key role in driving the enhanced productivity proposition of the AT500, from its easy ultra-long-range reflector measurement capabilities to the entry-level 6DoF probing functionality delivered by B-Probeplus. With the usability and robust design that are the defining features of the AT500, absolutely anyone can measure absolutely anything, absolutely anywhere.

$19200

Description

Up to sell for Excellent condition demo used for Leica AT500 Absolute Laser Tracker Complete SET. Year 2020 and Every AT500 system comes with a bundled SFx Asset Management PRO licence. The Leica Absolute Tracker AT500 benefits from a fully battery-powered, integrated-controller design that makes it the most portable and easy to setup member of the Absolute Tracker range. Operational simplicity plays a key role in driving the enhanced productivity proposition of the AT500, from its easy ultra-long-range reflector measurement capabilities to the entry-level 6DoF probing functionality delivered by B-Probeplus. With the usability and robust design that are the defining features of the AT500, absolutely anyone can measure absolutely anything, absolutely anywhere.

Leica AT500 Absolute Laser Tracker Includes:

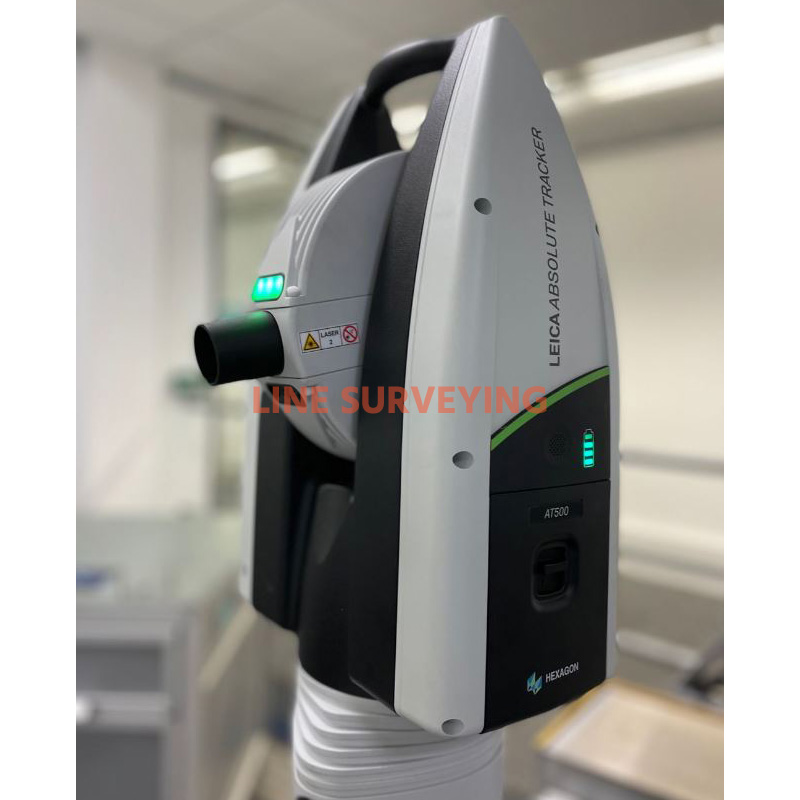

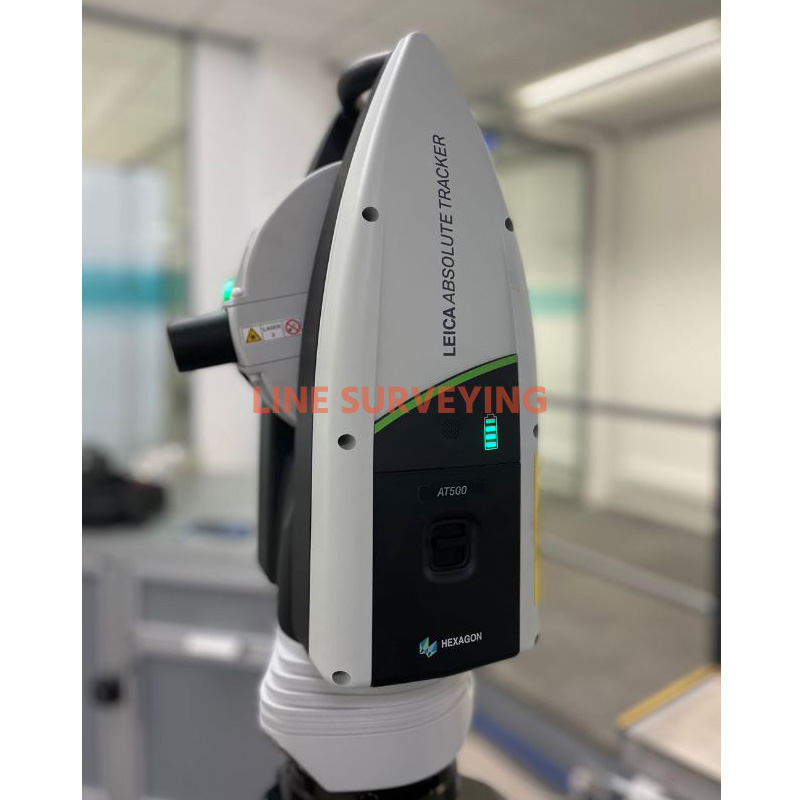

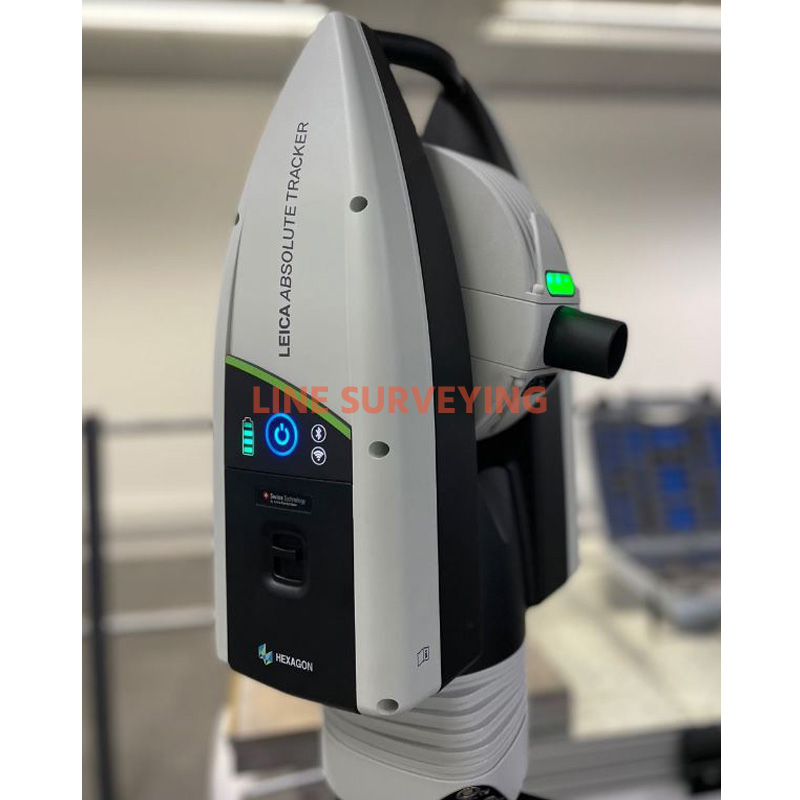

  • (1X) Leica AT500 Absolute Tracker

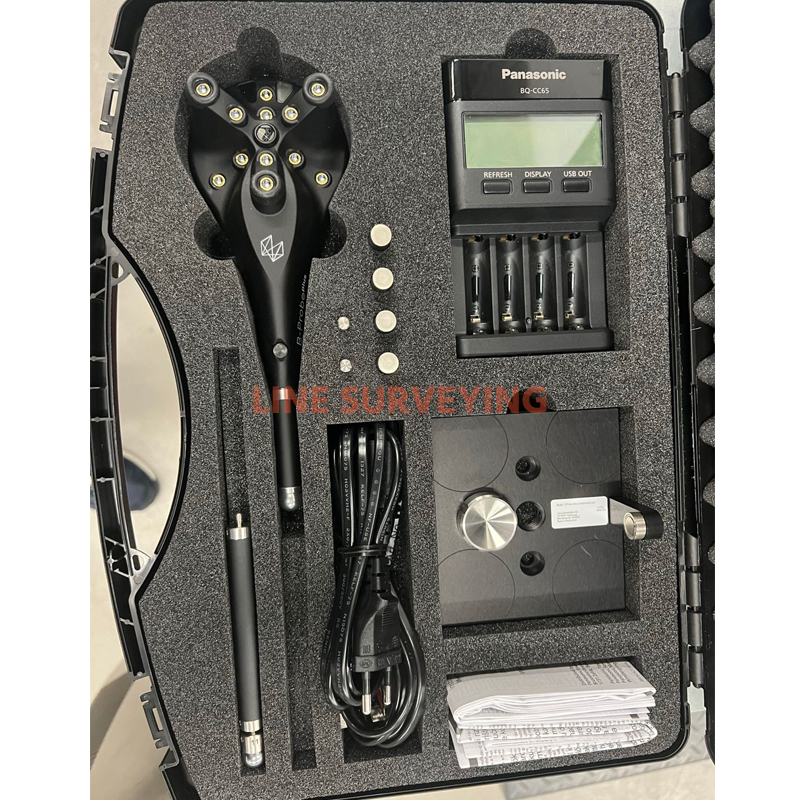

  • (1X) B-Probe Plus

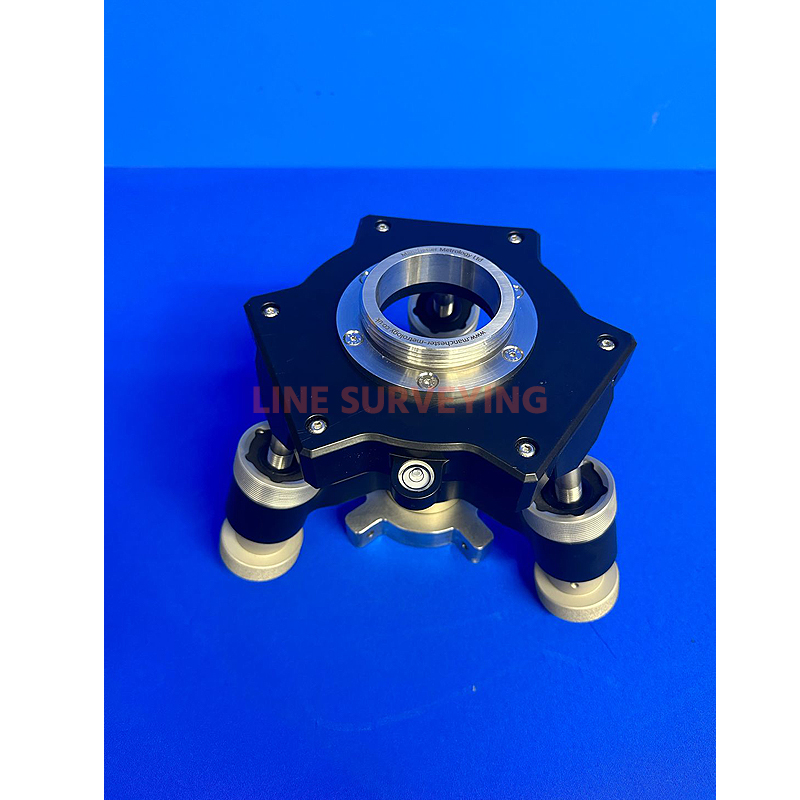

  • (1X) AT Quick Release Mount incl. Mandrel
  • (1X) Power Supply Unit
  • (1X) Hinged Hook Wrench

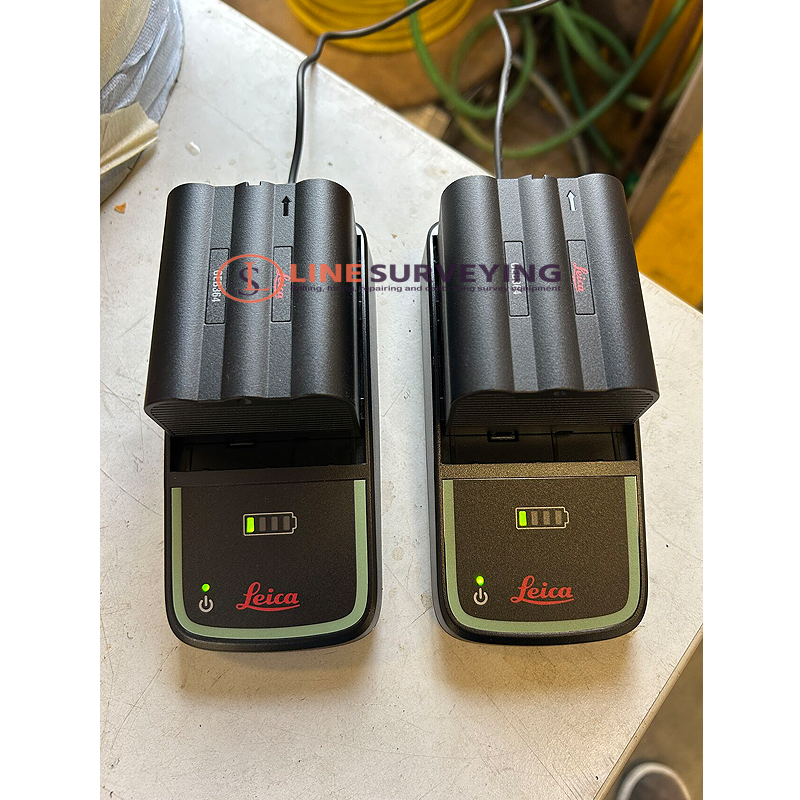

  • (2X) Removable Batteries
  • (1X) External Cable

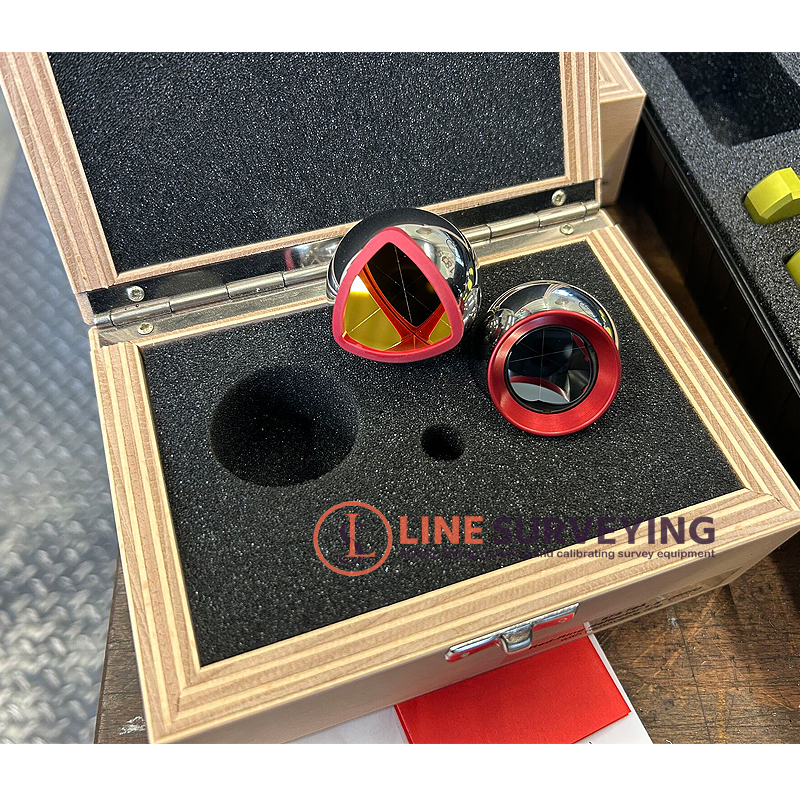

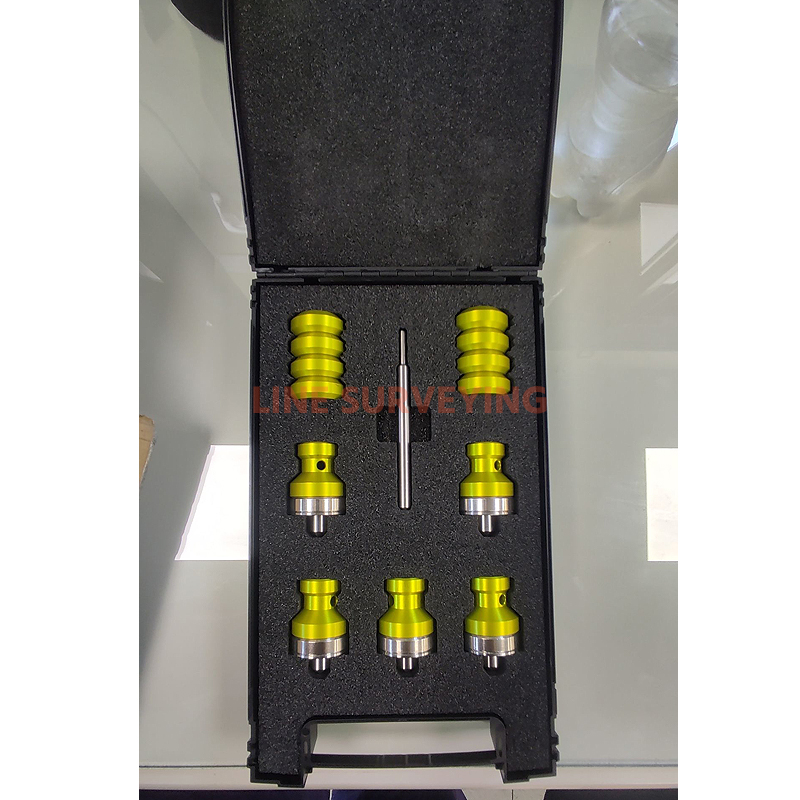

  • (1X) Reflector Box
  • (1X) Power External Temperature
  • (1X) Ethernet Cable

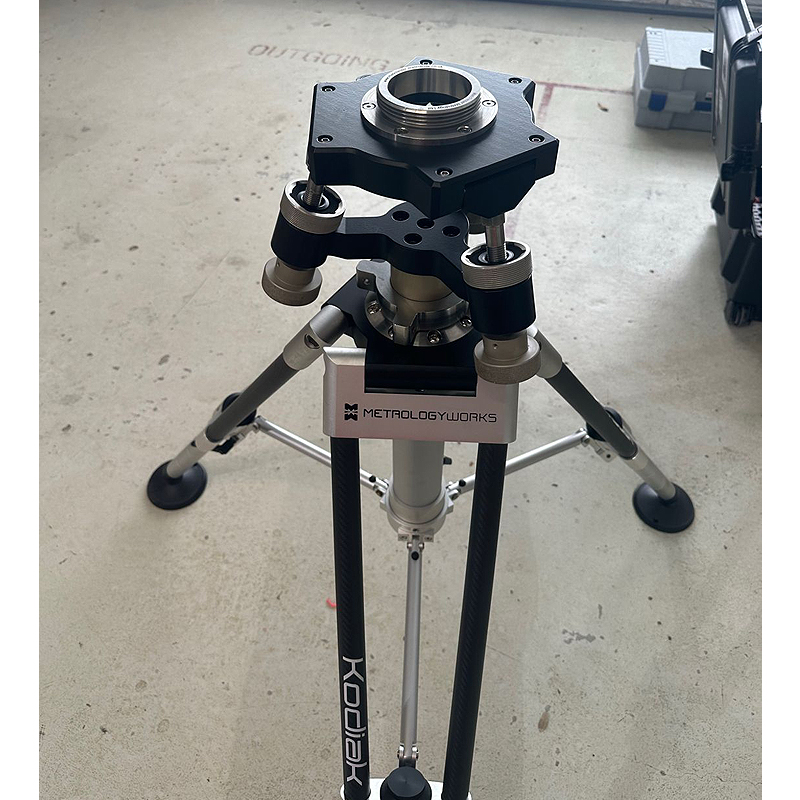

  • (1X) Universal Stand Fixture
  • (1X) Optical Cleaning Kit

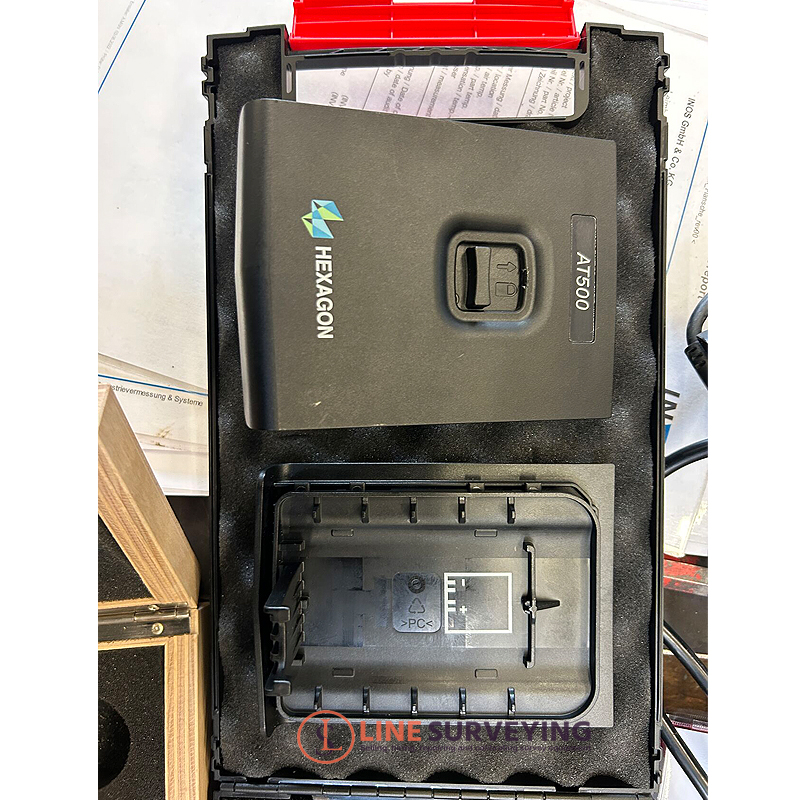

  • (1X) Protective Sensor Cover

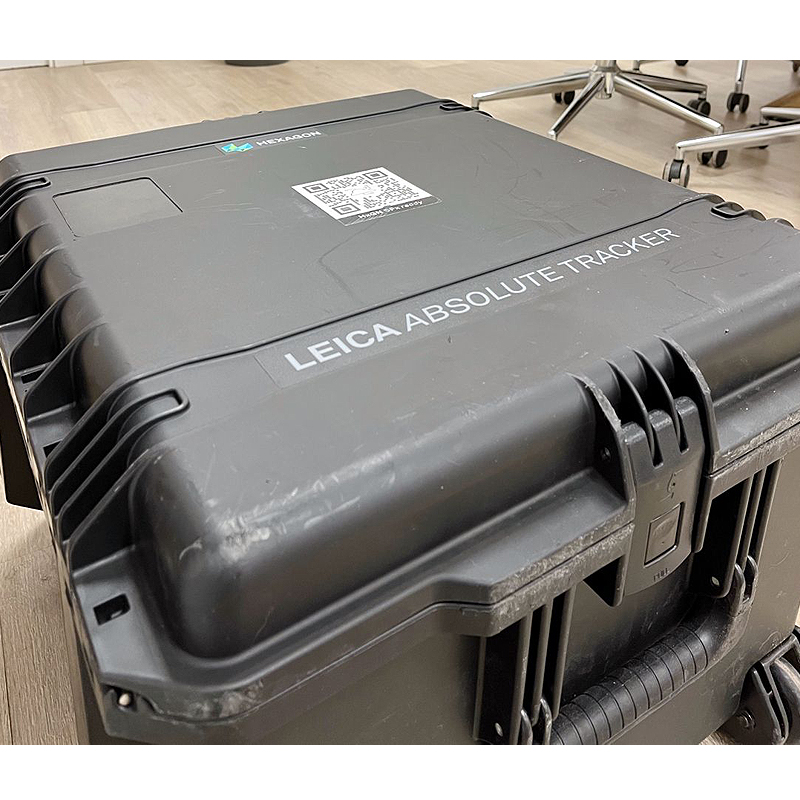

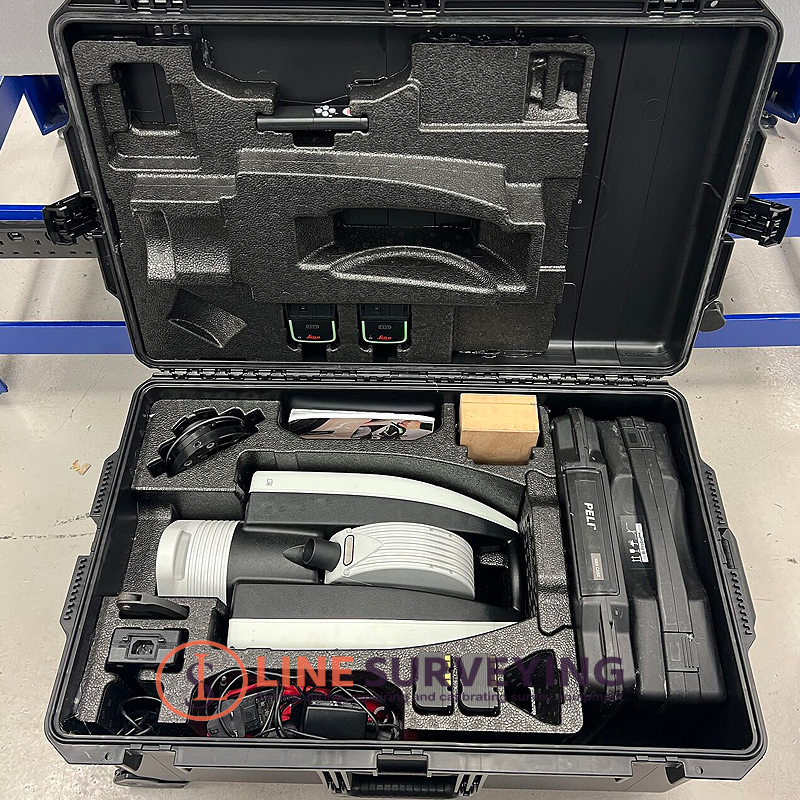

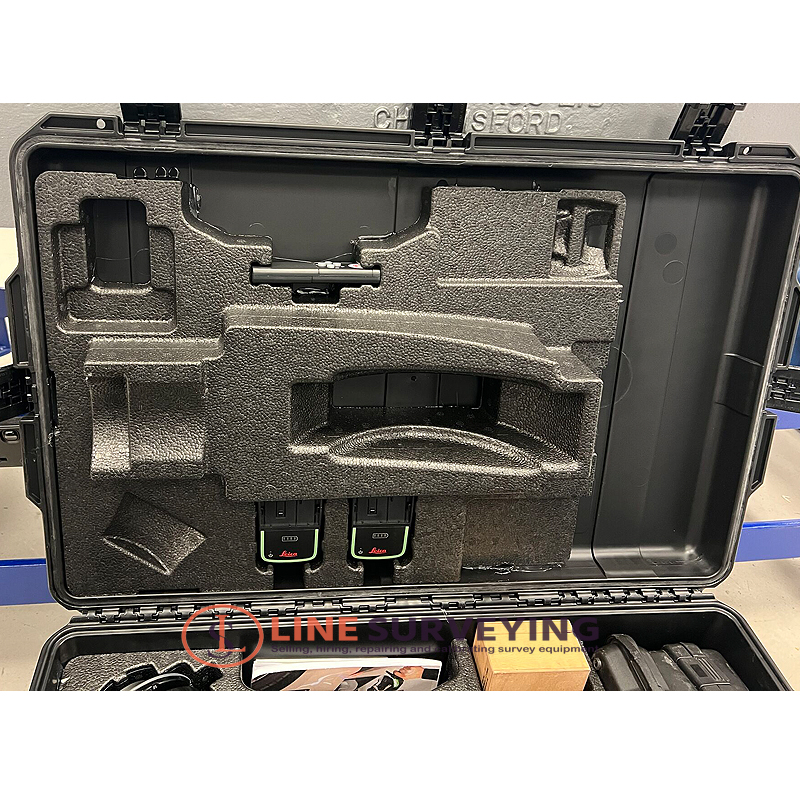

  • (1X) Transport Case (Hard box)

Compatible Hardware:
The B-Probe plus is a dedicated handheld probing tool designed for the Leica Absolute Tracker AT500. Able to gather hidden 3D points across a large measurement volume, the B-Probe plus is a completely wireless solution that makes probing measurement easy to perform and affordable.

FEATURES AND BENEFITS:

MEASURE ANYWHERE WITH ENHANCED PRODUCTIVITY
The first true all-in-one Hexagon laser tracker measurement solution, the Leica Absolute Tracker AT500 benefits from a fully battery-powered, integrated-controller design that makes it the most portable and easy to setup member of the Absolute Tracker range. Operational simplicity plays a key role in driving the enhanced productivity proposition of the AT500, from its easy ultra-long-range reflector measurement capabilities to the entry-level 6DoF probing functionality delivered by B-Probeplus. With the usability and robust design that are the defining features of the AT500, absolutely anyone can measure absolutely anything, absolutely anywhere.

MEASUREMENT ANYWHERE
The AT500 boasts IP54-rated protection from the elements, as well as an extended working temperature range of -15 to +50°C, allowing for measurement from the mountaintop to the foundry.

NEXT-GENERATION PROBING
The battery-powered B-Probeplus brings entry-level 6DoF handheld probing to the 3D tracker segment. The probe is easier to handle than the previous generation and boasts a widened acceptance angle and increased range.

INTEGRATED FEATURES
The batteries that power the AT500 have been built into the tracker head, making this a system that's ideal for setup and operation beyond the bounds of traditional inspection locations.

LIVE 6DOF INFORMATION
The digital read-out of the B-Probeplus puts direct measurement feedback in the users hands. This simplifies and speeds up probing operations, and is particularly useful in supporting drilling applications when combined with a punch tool accessory.

EXTENDED RANGE
The full reflector measurement range of the AT500 extends across a volume 320 metres in diameter, making it the ideal solution for inspection of large structures such as antennas or ships.

PRODUCTIVITY MADE EASY
One-button operation combined with WiFi access point connectivity and integrated batteries makes the AT500 the easiest tracker to use. And it's not limited to upright configuration — it can be used in any orientation, including upside down.

Compatible Software:

1. Inspire
Inspire is the next-generation metrology software driving simplicity and productivity in portable probing and scanning.

2. SpatialAnalyzer
Powerful, traceable and easy-to-use portable metrology software that performs complex applications simply.

3. PC-DMIS
The world’s leading dimensional metrology software package for both stationary and portable metrology systems.

4. Metrology Asset Manager
Smart, cost-effective manufacturing to increase overall equipment effectiveness.

TECHNICAL DATA:
  • Measurement ranges: Tracker Model: 3D and 6D, AT500: 0.8 to 160m. and 1.6 to 12m
  • Tracker size: weight 477 x 261 x 238 mm and 13.6 kg
  • Controller size: weight built-in controller, 0 kg
  • Laser class: Class 2 Laser Product in accordance with IEC 60825-1 Second Edition (2014-05)
  • Overview Camera: 5MP and 10-degree FOV
  • Power-Lock range: 80m.
  • ISO 17025 certified: Available
  • Operating temperature: -15°C to +50°C
  • Relative humidity: max. 95% non-condensing
  • Operating elevation: -700 m to +5500 m
  • Dust water: IP54
  • Cable: Cat5e
  • Wireless: WLAN (IEEE 802.11n)
  • Battery type: Lithium-ion battery swappable
  • Typical battery runtime (single charge): 6 hours
  • Data output: 100 Hz
  • Mains: AC power supply
  • Probing Accuracy: B-Probeplus
  • Probing size: ±100 µm
  • Absolute angular performance eT: ±15 µm + 6 µm/m
  • AIFM absolute distance performance: ±0.5 µm/m
  • Dynamic lock-on: ±10 µm
  • Inclination senor: ±1.0 arcsec
  • Orient to gravity Uz: ±15 µm + 8 µm/m
  • Timestamp accuracy: < 5 μsec.
  • Download Leica-Absolute-Tracker-AT500-and-B-Probeplus
